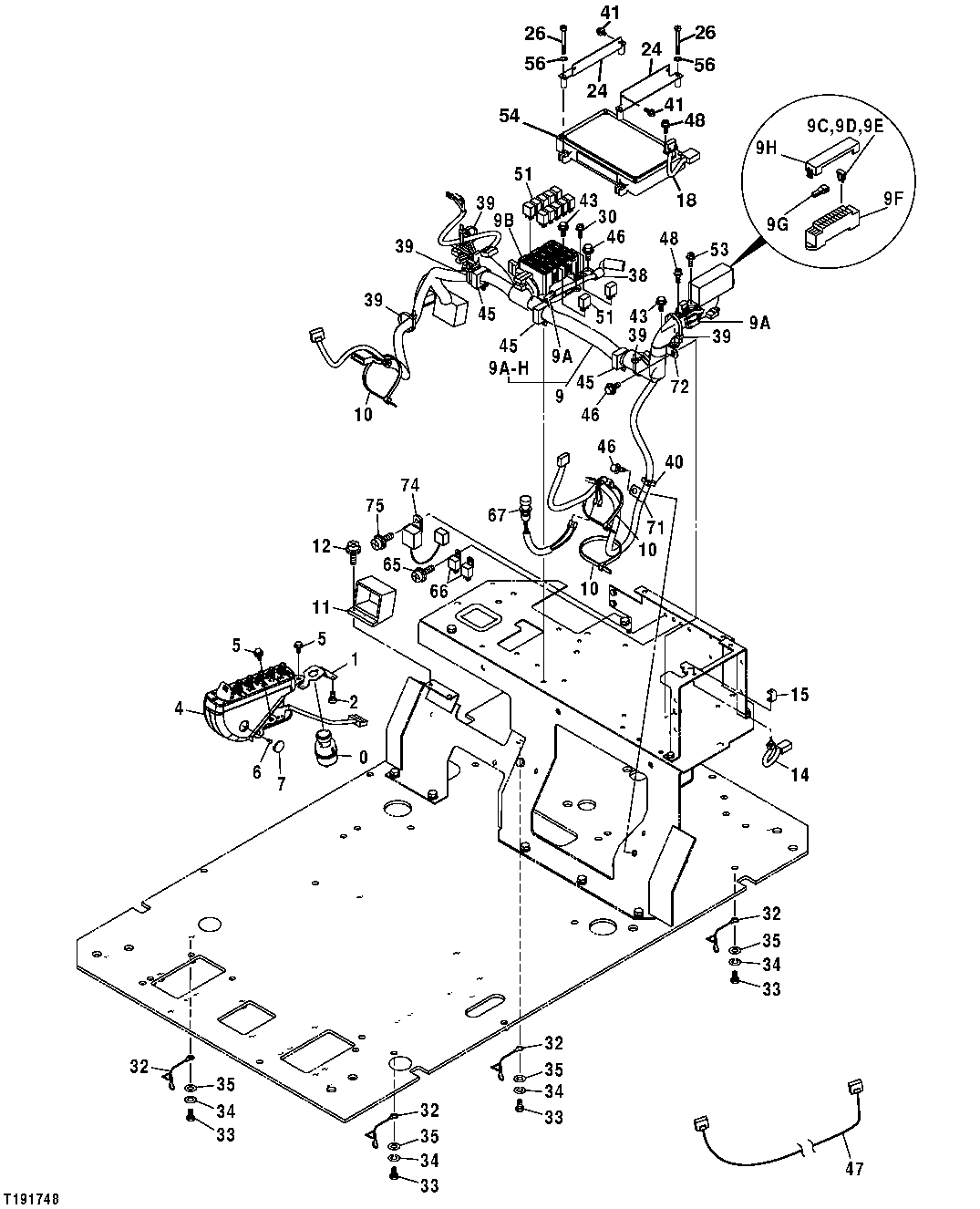

Запчасти John Deere 50CLC 107 - ELECTRICAL COMPONENTS (CAB) 1674 WIRING HARNESS AND SWITCHES

0

4477373

Switch

(SUB FOR TH4469337)

1шт.

AT194969

Key

(SUB FOR AT147803)

1шт.

1

3087882

Bracket

(SUB FOR TH3087882)

1шт.

2

4361800

Screw

(SUB FOR AT214011)

3шт.

4

4454518

Control Console

(SUB FOR TH4454518)

1шт.

4482656

Dial Knob

Speed

1шт.

4483208

Dial Knob

4шт.

4483209

Dial Knob

1шт.

4370152

Lamp

2шт.

4483206

Switch

Harness

1шт.

5

J010814

Screw With Washer

(SUB FOR AT132457)

3шт.

6

4381572

Screw

(SUB FOR TH4381572)

1шт.

7

4426354

Cap

(SUB FOR TH4426354)

1шт.

9

Wiring Harness

(SUB 4610466)( TH4468558 OR 4468558 NLA)

1шт.

4610466

Wiring Harness

1шт.

9A

4456778

Diode

(SUB FOR TH4456778)

6шт.

9B

4427429

Circuit Box

(SUB FOR TH4427429)

1шт.

9C

57M7688

Fuse

8шт.

9D

57M7689

Fuse

8шт.

9E

57M7691

Fuse

4шт.

9F

4456735

Fuse Holder

(SUB FOR TH4456735)

1шт.

9G

Special Service Tool

( TH4436737 NLA)

1шт.

9H

4468530

Cover

(SUB FOR TH4468530)

1шт.

10

H77698

Tie Band

3шт.

11

4431090

Electrical Connector Assy

(SUB FOR TH4431090)

1шт.

12

Screw With Washer

( J460620 NLA) (SUB FOR AT200012)

2шт.

21M7267

Screw

M6 X 20

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

14

4359384

Switch

(SUB FOR AT213984)

1шт.

15

4367375

Bracket

(SUB FOR AT214036)

1шт.

18

4439897

Wiring Harness

1шт.

24

8082329

Bracket

2шт.

26

21M7466

Screw

M6 X 30 (SUB FOR M430630)

2шт.

M430660

Screw

4шт.

30

Screw With Washer

( J460620 NLA) (SUB FOR AT200012)

1шт.

21M7267

Screw

M6 X 20

4шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

4шт.

12M7006

Lock Washer

6 mm

4шт.

32

4281293

Ground Cable

(SUB FOR AT154961)

4шт.

33

19M8324

Cap Screw

M10 X 16

4шт.

34

12M7066

Lock Washer

10 mm

4шт.

35

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

38

R73384

Clamp

(SUB FOR TH108597 OR 4190253)

1шт.

39

H77698

Tie Band

5шт.
