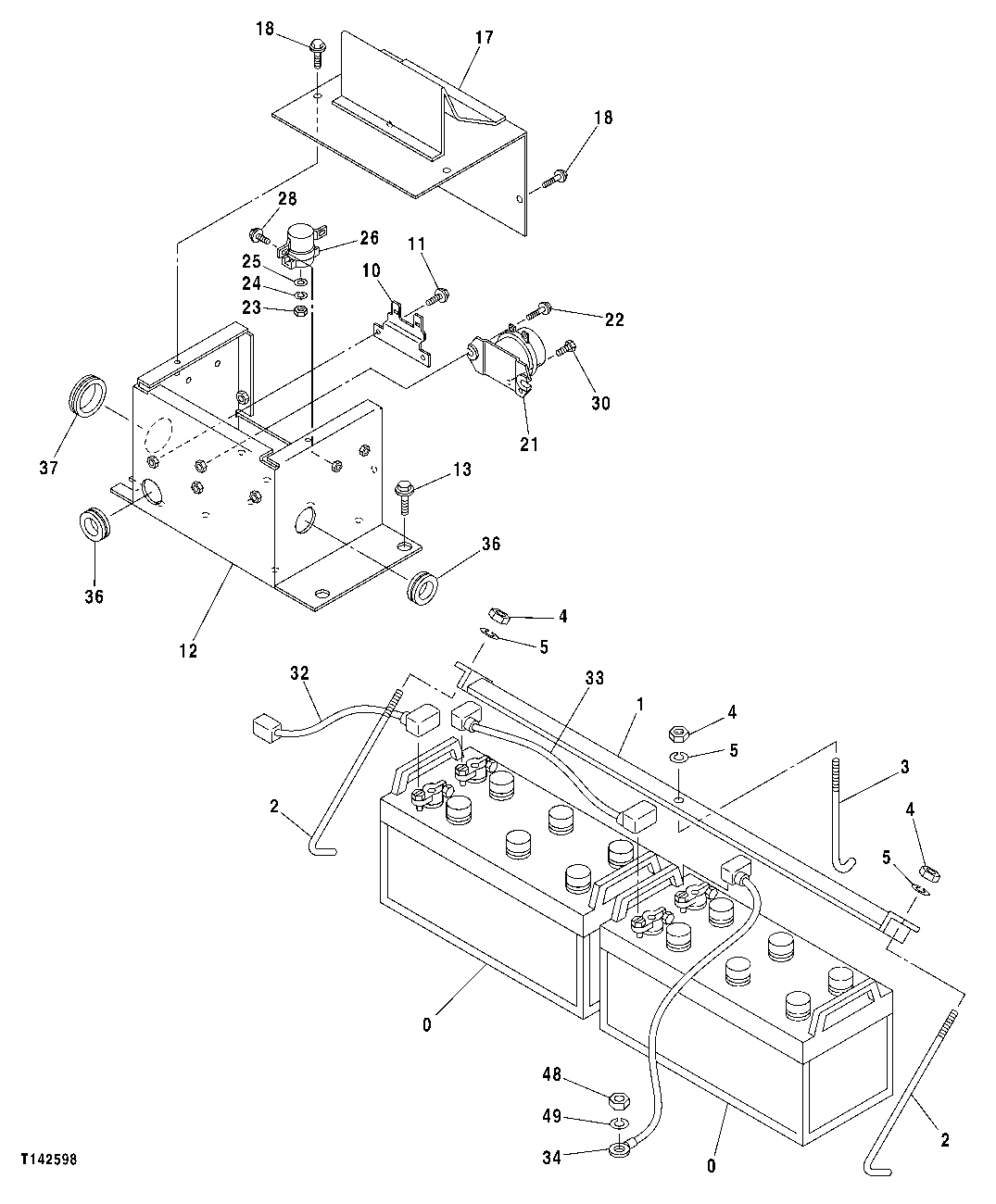

Запчасти John Deere 50CLC 102 - Electrical Components, Battery 1674 WIRING HARNESS AND SWITCHES

0

TY23020

Dry Charged Battery

SUB FOR TY21709

2шт.

1

8059085

Clamp

SUB FOR AT201910

1шт.

2

4286840

Bolt

SUB FOR AT201745

2шт.

3

4286841

Bolt

SUB FOR AT201746

1шт.

4

14M7273

Nut

M8

3шт.

5

Washer

12M7065 NLA

3шт.

10

4297280

Bracket

SUB FOR AT201752

1шт.

11

19M7923

Cap Screw

M6 X 12

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

12

6020193

Circuit Box

SUB FOR TH6020193

1шт.

13

19M8011

Cap Screw

M12 X 30

4шт.

12H301

Lock Washer

1/2"

4шт.

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

17

8084625

Cover

SUB FOR TH8084625

1шт.

18

19M7402

Cap Screw

M10 X 25

4шт.

12M7066

Lock Washer

10 mm

4шт.

24M7028

Washer

10.500 X 20 X 2 mm

4шт.

21

8943795431

Relay

SUB FOR 4255762 AND AT154229

1шт.

22

19M7407

Cap Screw

M8 X 25

2шт.

Washer

12M7065 NLA

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

23

14M7272

Nut

M6

4шт.

24

12M7006

Lock Washer

6 mm

4шт.

25

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

26

AT145341

Relay

1шт.

28

19M7923

Cap Screw

M6 X 12

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

2шт.

30

19M7881

Screw

M8 X 20

1шт.

32

4456969

Battery Cable

SUB FOR TH4456969

1шт.

33

4271827

Wiring Harness

Battery Cable

1шт.

34

4456968

Battery Cable

SUB FOR TH4456968

1шт.

36

H210728

Grommet

SUB FOR AT202389 OR 4211059

2шт.

37

4207839

Grommet

SUB FOR AT131849

1шт.

48

14M7274

Nut

M10

1шт.

49

12M7066

Lock Washer

10 mm

1шт.
