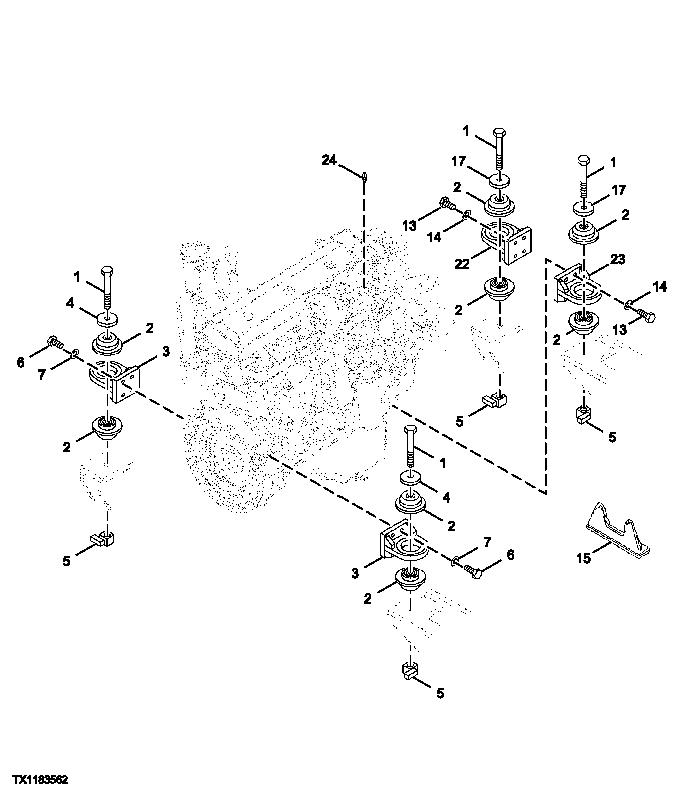

Запчасти John Deere 50CLC 90 - ENGINE MOUNTING 0540 ENGINE MOUNTING

1

J932215

Bolt

2шт.

J932215

Bolt

4шт.

2

4183995

Cushion

4шт.

4183995

Cushion

8шт.

3

8045941

Bracket

2шт.

4

4602486

Plate

(SUB FOR 4247426)

2шт.

5

9742550

Nut

2шт.

9742550

Nut

4шт.

6

19H2588

Cap Screw

5/8" X 1-7/8"

8шт.

7

4114405

Washer

8шт.

8

J931813

Bolt

Not Illustrated

2шт.

9

4455888

Isolator

Not Illustrated

4шт.

10

4602485

Plate

Not Illustrated (SUB FOR 4456845)

2шт.

11

J951018

Nut

Not Illustrated

2шт.

12

24M7353

Washer

20 X 34 X 3 mm Not Illus trated (SUB FOR J222018)

2шт.

13

19M8295

Cap Screw

M16 X 55 (SUB FOR J931655)

4шт.

19M8295

Cap Screw

M16 X 55 (SUB FOR J931655)

8шт.

14

24M7338

Washer

17 X 30 X 3 mm (SUB FOR J222016)

4шт.

24M7338

Washer

17 X 30 X 3 mm (SUB FOR J222016)

8шт.

15

8090052

Bracket

Single Front Mount (SUB FOR 80846 10, 8090317) (NLA, ORDER 8100009)

1шт.

8100009

Bracket

Single Front Mount

1шт.

8093370

Bracket

Dual Front Mount Not Illustrated

1шт.

17

4602486

Plate

2шт.

22

8093370

Bracket

1шт.

23

7045580

Bracket

1шт.

24

4456798

Sensor

1шт.
