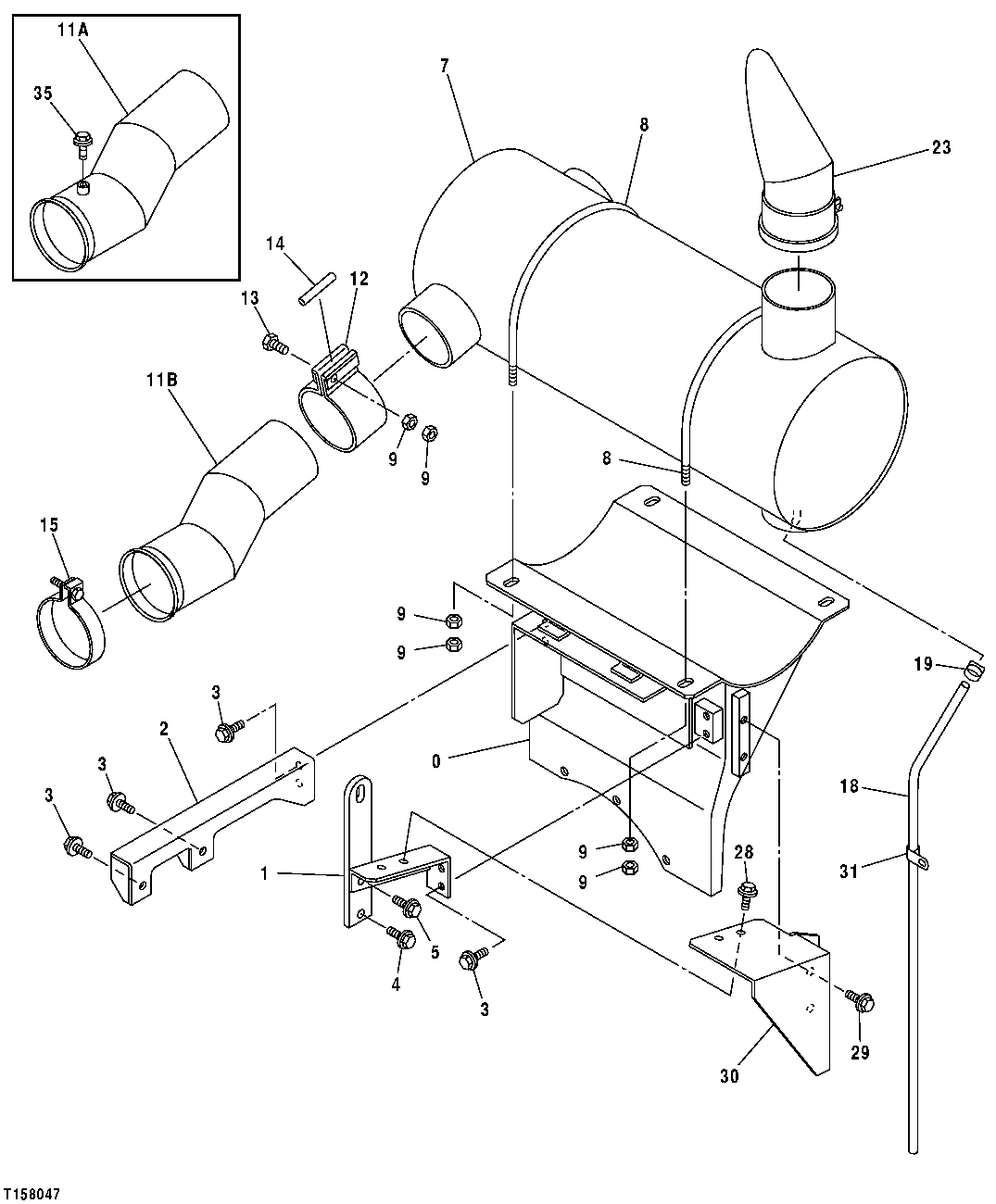

Запчасти John Deere 50CLC 89 - MUFFLER AND EXHAUST PIPE COMPONENTS 0530 EXTERNAL EXHAUST SYSTEMS

0

7040611

Bracket

(SUB FOR TH7040611)

1шт.

1

8084632

Bracket

(SUB FOR TH8084632)

1шт.

2

8084633

Bracket

(SUB FOR TH8084633)

1шт.

3

19M7872

Cap Screw

M12 X 25

6шт.

12H301

Lock Washer

1/2"

6шт.

24M7047

Washer

13 X 24 X 2.500 mm

6шт.

4

19M7403

Cap Screw

M12 X 35

1шт.

12H301

Lock Washer

1/2"

1шт.

24M7047

Washer

13 X 24 X 2.500 mm

1шт.

5

19M7493

Cap Screw

M12 X 40

1шт.

12M7058

Lock Washer

12 mm (SUB FOR 12M7067)

1шт.

24M7345

Washer

13.500 X 24 X 2.500 mm

1шт.

7

4653909

Muffler

(SUB FOR TH4464550 OR 4464550)

1шт.

8

4434206

U-Bolt

(SUB FOR TH4434206)

2шт.

9

14M7275

Nut

M12

12шт.

11A

8084614

Exhaust Pipe

1шт.

11B

8084614

Exhaust Pipe

1шт.

12

8077064

Band

(SUB FOR TH8077064)

1шт.

13

19M7363

Cap Screw

M12 X 60

2шт.

12H301

Lock Washer

1/2"

2шт.

14

T130341

Gasket

1шт.

15

RE25566

Clamp

1шт.

18

4448792

Tube

(SUB FOR 4442463, 4479047 OR 4375436)

1шт.

19

TY22462

Clamp

(SUB FOR AR48236)

1шт.

23

8088326

Exhaust Pipe

(SUB FOR 4321934)

1шт.

28

19M7402

Cap Screw

M10 X 25

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

29

19M7662

Cap Screw

M10 X 30

2шт.

12M7066

Lock Washer

10 mm

2шт.

24M7028

Washer

10.500 X 20 X 2 mm

2шт.

30

7041774

Cover

(SUB FOR TH7041774)

1шт.

31

4190275

Clamp

(SUB FOR AT215520 ) (SUB FOR 4344303)

1шт.

35

M800462

Plug

1шт.
