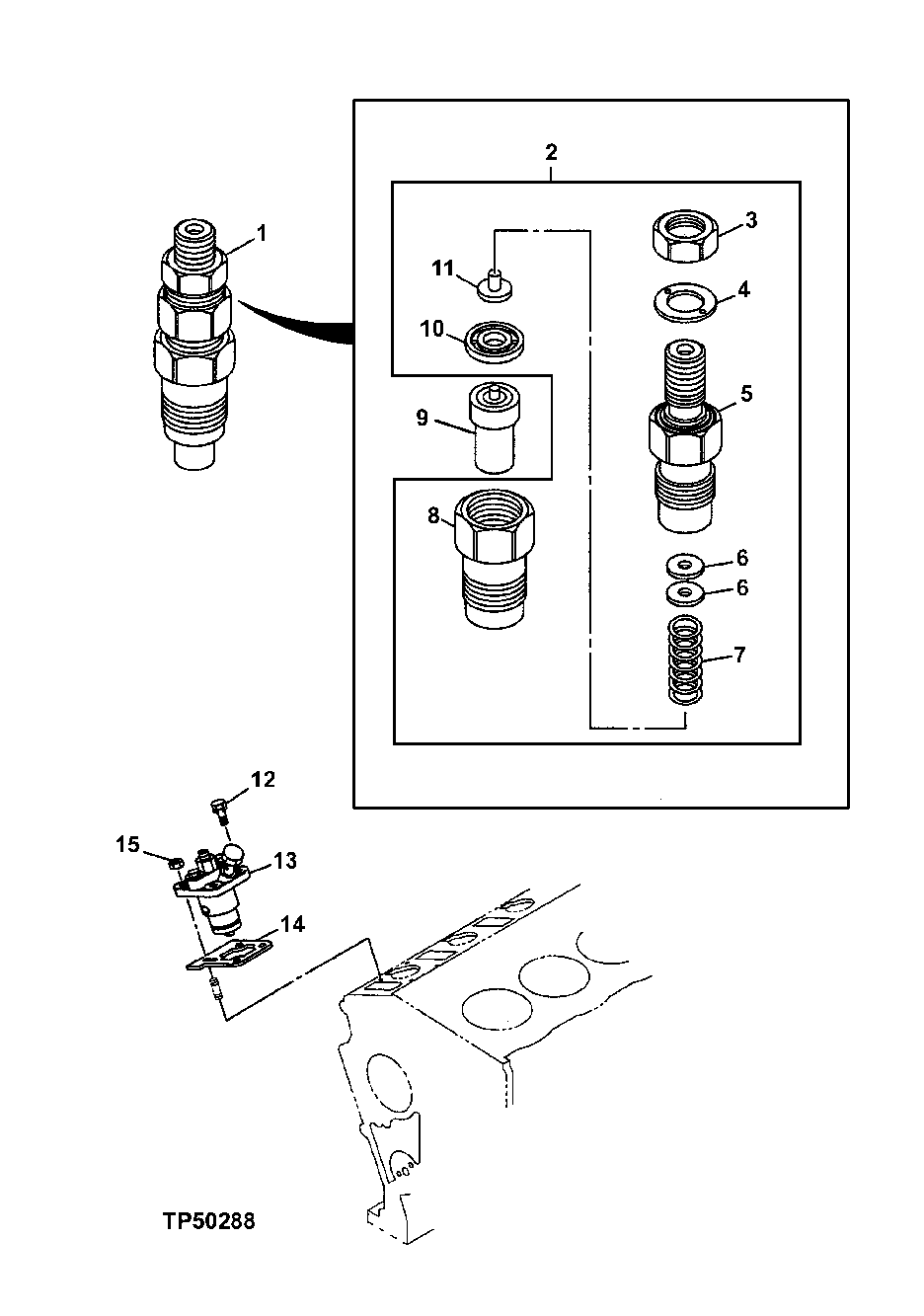

Запчасти John Deere 5ZTS 33 - FUEL INJECTION NOZZLE 0413 FUEL INJECTION SYSTEM

1

8970799761

Nozzle

(SUB FOR AT254918)

1шт.

2

8970908421

Nozzle Holder

(SUB FOR AT261290)

1шт.

3

8941743440

Bearing

(SUB FOR AT261271 AND AT191644)

1шт.

4

8941049930

Gasket

(SUB FOR AT261268)

1шт.

5

Housing

NOT AVAILABLE FOR SERVICE

1шт.

6

8941769620

Shim

(0.10) (SUB FOR AT261273)

ARшт.

8941769630

Shim

(0.20) (SUB FOR AT261274)

ARшт.

8941769640

Shim

(0.30) (SUB FOR AT261275)

ARшт.

8941769650

Shim

(0.40) (SUB FOR AT261276)

ARшт.

8941769660

Shim

(0.50) (SUB FOR AT261277)

ARшт.

8941769670

Shim

(0.52) (SUB FOR AT261278)

ARшт.

8941769680

Shim

(0.54) (SUB FOR AT261279)

ARшт.

8941769700

Shim

(0.56) (SUB FOR AT261280)

ARшт.

8941769700

Shim

(0.58) (SUB FOR AT261281)

ARшт.

8941769710

Shim

(0.80) (SUB FOR AT261282)

ARшт.

7

8941289640

Spring

(SUB FOR AT261270)

1шт.

8

8970846170

Nut

(SUB FOR AT261288)

1шт.

9

8941305320

Nozzle

(SUB FOR AT261272)

1шт.

10

8970833580

Spacer

(SUB FOR AT261287)

1шт.

11

8941289631

Plate

(SUB FOR AT261269, 8941289630)

1шт.

12

19M7866

Screw

M8 X 20 (SUB FOR AT259925)

6шт.

13

8970345916

Fuel Injection Pump

Components Listed On Anoth er Page (SUB FOR AT259992)

3шт.

14

8972272821

Shim

0.20, (SUB FOR AT261293 AND AT254994)

ARшт.

8972272831

Shim

0.30, (SUB FOR AT261294 AND AT254995)

ARшт.

8972272841

Shim

0.40 in., (SUB FOR AT261295 AND AT254996)

ARшт.

8972272851

Shim

0.50, (SUB FOR AT261296 AND AT254997)

ARшт.

8972272861

Shim

0.60, (SUB FOR AT261297 AND AT254998)

ARшт.

8972272871

Shim

0.70, (SUB FOR AT261298 AND AT254999)

ARшт.

8972272881

Shim

0.70, (SUB FOR AT261299 AND AT255000)

ARшт.

8972272891

Shim

1.0, (SUB FOR AT261300 AND AT255001)

ARшт.

8972272901

Shim

1.20, (SUB FOR AT261301 AND AT255002)

ARшт.

15

14M7298

Flange Nut

M8 (SUB FOR AT259945 OR 4447338)

6шт.
