Запчасти John Deere 5ZTS 22 - TIMING CHAIN LINKAGE 0402 CAMSHAFT AND VALVE ACTUATING MEANS

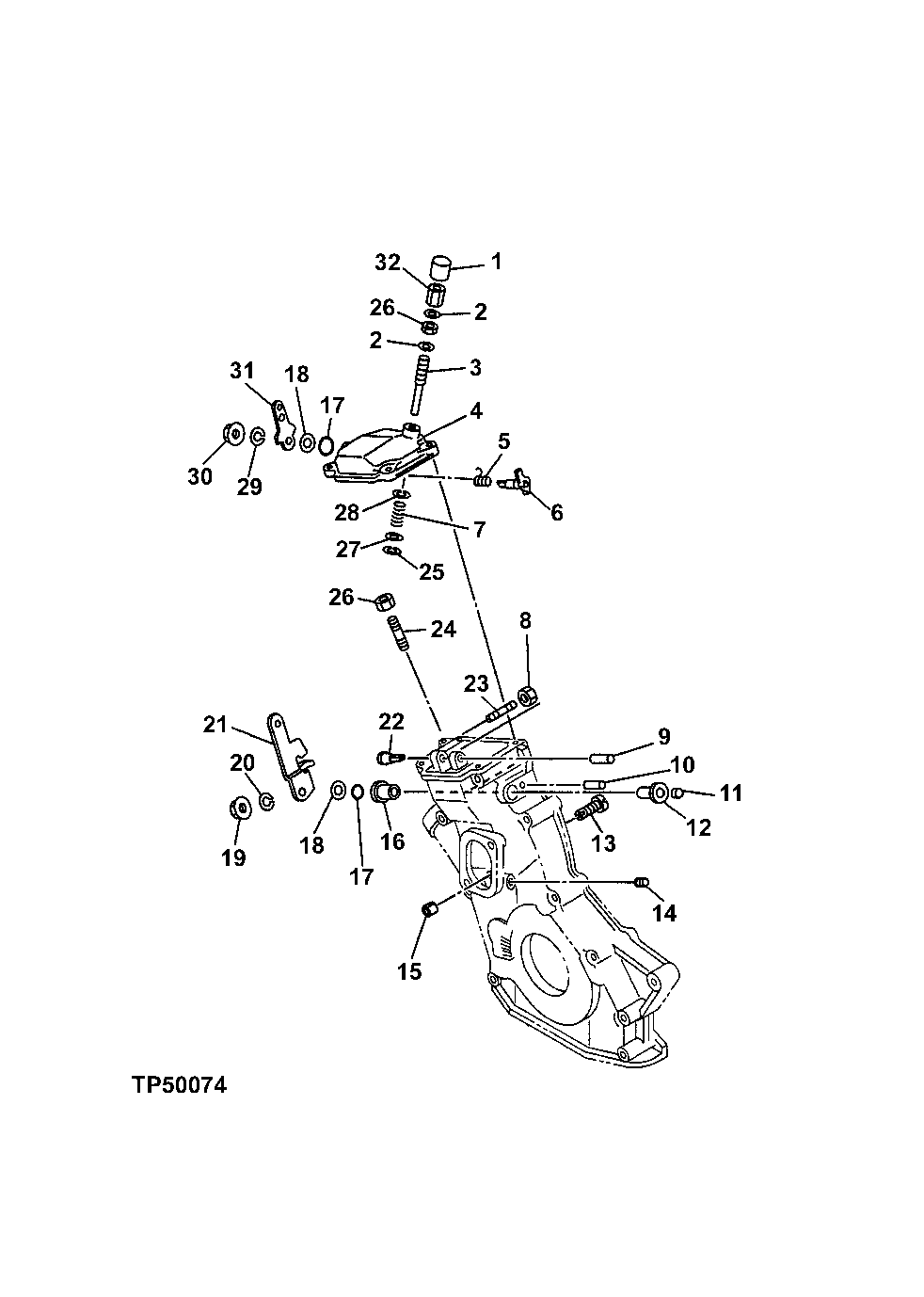

Схема запчастей John Deere 5ZTS - 22 - TIMING CHAIN LINKAGE 0402 CAMSHAFT AND VALVE ACTUATING MEANS

Артикул

Название

Примечание

Количество

1

5156690021

Cap

SUB FOR AT254836

1шт.

2

5095031321

Packing

SUB FOR AT254821

2шт.

3

8970164410

Set Screw

SUB FOR AT254873

1шт.

4

8971617451

Cover

SUB FOR AT260071 OR 8971617450

1шт.

5

8970395461

Spring

SUB FOR AT254889

1шт.

6

8970164460

Shaft

SUB FOR AT254874

1шт.

7

8970169362

Spring

SUB FOR AT259987 OR 8970169361

1шт.

8

14M7194

Nut

M6 SUB FOR AT255017 AND 9091114060

1шт.

9

9081608500

Dowel Pin

SUB FOR AT255015

1шт.

10

9081604360

Dowel Pin

SUB FOR AT255010

1шт.

11

8944546150

Plug

SUB FOR AT254870

1шт.

12

8970388021

Sleeve

SUB FOR AT254885

1шт.

13

8970395842

Set Screw

SUB FOR AT254890 OR 8970395841

1шт.

14

5096050192

Pipe Plug

SUB FOR AT254812

1шт.

15

9091105060

Nut

SUB FOR AT260106 AND AT191640

1шт.

16

8943695450

Sleeve

SUB FOR AT254865

1шт.

17

9099206360

Gasket

NLA SUB FOR AT254813

2шт.

18

AT254822

Thrust Washer

2шт.

19

14M7273

Nut

M8 SUB FOR AT260107 OR 9091105080

1шт.

20

1099851770

Washer

SUB FOR AT255018

1шт.

21

8970493281

Lever

SUB FOR AT254908

1шт.

22

5122110210

Package Of Parts

SUB FOR AT254837

1шт.

23

AT254818

Set Screw

LENGTH = 28

1шт.

24

8943176381

Set Screw

LENGTH = 38 SUB FOR AT254859

1шт.

25

0918055030

Snap Ring

SUB FOR 9091854030 OR AT255022

1шт.

26

14M7194

Nut

M6 SUB FOR AT255017 AND 9091114060

2шт.

27

0916105040

Washer

SUB FOR AT255019 OR 9091605040

1шт.

28

9091607040

Washer

SUB FOR AT255020

1шт.

29

1099851770

Washer

SUB FOR AT255018

1шт.

30

14M7273

Nut

M8 SUB FOR AT260107 OR 9091105080

1шт.

31

8973034540

Lever

SUB FOR 8970164492, AT254875

1шт.

32

AT254820

Nut

1шт.

Выбрано товаров: 32
