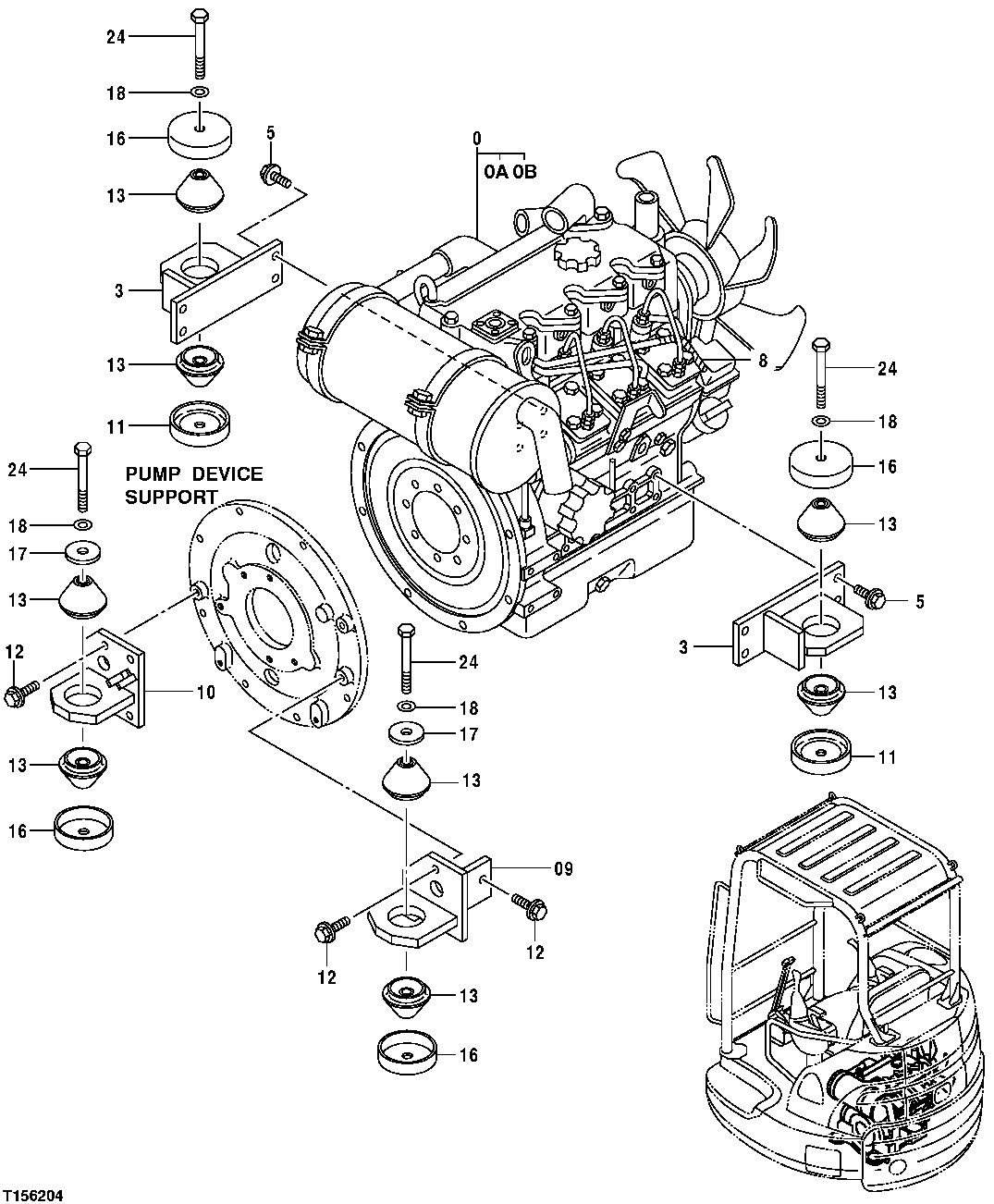

Запчасти John Deere 5ZTS 15 - ENGINE AND ENGINE MOUNTS 0400 REMOVAL AND INSTALLATION

0

Diesel Engine

( 3LD1PA40 NO LONGER AVAILABLE - ORDER 3LD1LB01 LONG BLOCK) (SUB FOR AT190972)

1шт.

0A

4445213

Half Sheave

(SUB FOR AT251512 OR TH4445213)(FAN)

1шт.

0B

4454526

Filter Element

(SUB FOR AT192163)

1шт.

3

8075778

Bracket

(SUB FOR TH8075778)

2шт.

5

19M7662

Cap Screw

M10 X 30

8шт.

12M7066

Lock Washer

10 mm

8шт.

8

4400458

Hose Guard

(SUB FOR 4434365, 4427938 OR 4422674)

1шт.

9

8075505

Bracket

(SUB FOR TH8075505)

1шт.

10

8075789

Bracket

(SUB FOR TH8075789)

1шт.

11

9753719

Holder

(SUB FOR TH9753719)

2шт.

12

19M7402

Cap Screw

M10 X 25

6шт.

12M7066

Lock Washer

10 mm

6шт.

13

4355158

Isolator

(SUB FOR TH4355158)

8шт.

16

4276374

Holder

(SUB FOR AT251185)

4шт.

17

24H1748

Washer

1/2" X 1-1/4" X 0.105" (SU B FOR TH4307120 OR 4307120)

2шт.

18

24M7047

Washer

13 X 24 X 2.500 mm

4шт.

24

J901201

Bolt

(SUB FOR TH101986)

4шт.
