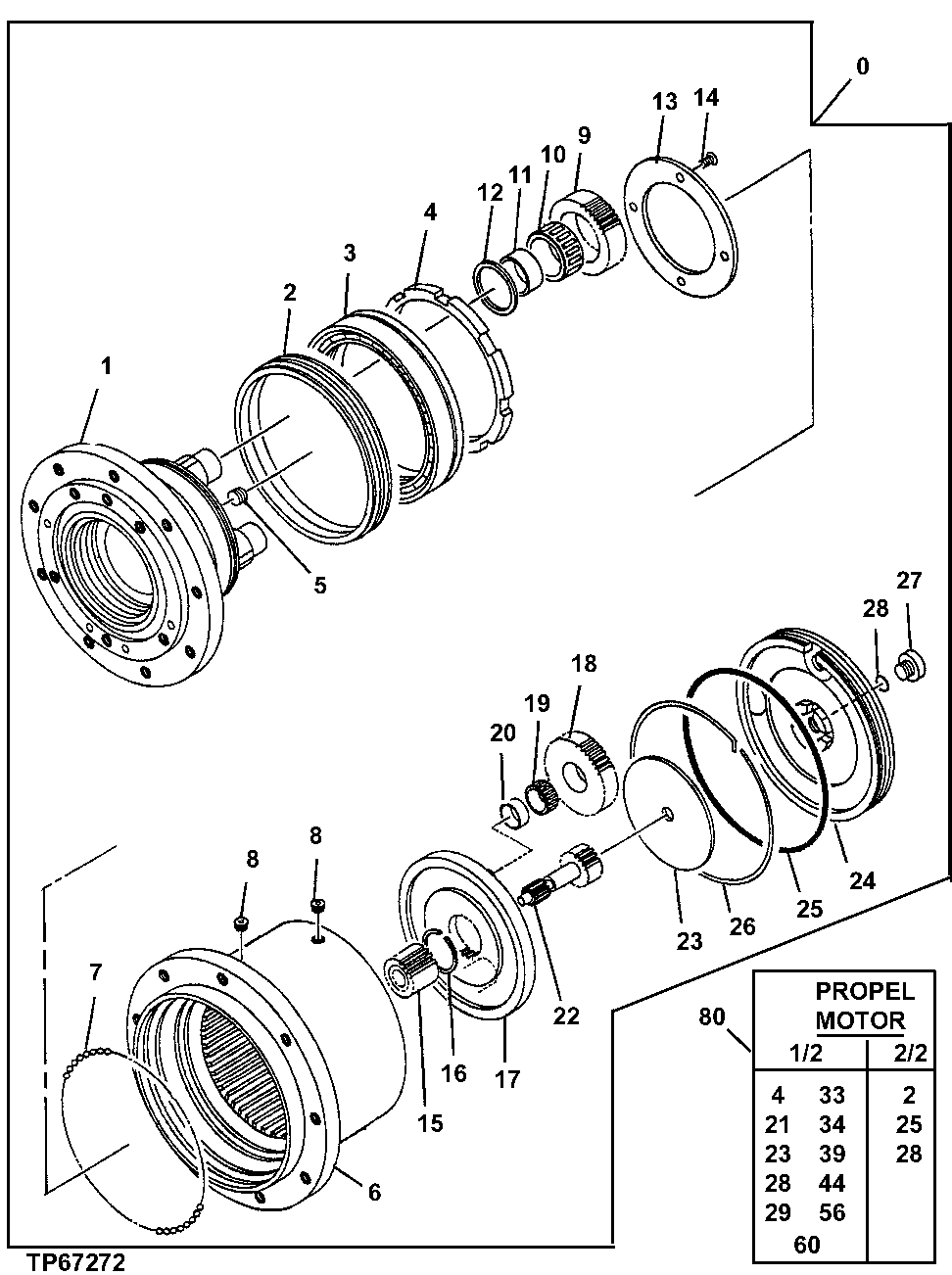

Запчасти John Deere 5ZTS 11 - PROPEL MOTOR (2/2) 0260 HYDRAULIC SYSTEM

0

0727001

Transmission

(SUB FOR TH0727001)

1шт.

1

Holder

(NOT AVAILABLE FOR SERVICE)

1шт.

2

0436501

Seal

(A) (SUB FOR TH0436501)

2шт.

3

0436502

Bearing

(SUB FOR TH0436502)

1шт.

4

0436503

Retainer

(SUB FOR TH0436503)

1шт.

5

0727002

Plug

(SUB FOR TH0727002)

2шт.

6

Housing

(NOT AVAILABLE FOR SERVICE)

1шт.

7

0431910

Ball

(SUB FOR AT203717)

132шт.

8

94-2010

Fitting Plug

(SUB FOR TH100689)

2шт.

9

0750101

Gear

(SUB FOR TH0750101)

4шт.

10

0750102

Needle Bearing

(SUB FOR TH0750102)

4шт.

11

0750103

Bearing Race

(SUB FOR TH0750103)

4шт.

12

0750104

Thrust Washer

(SUB FOR TH0750104)

4шт.

13

0436509

Thrust Washer

(SUB FOR TH0436509)

1шт.

14

0397810

Cap Screw

(SUB FOR TH0397810)

4шт.

15

0750105

Sun Gear

(SUB FOR TH0750105)

1шт.

16

40M7046

Snap Ring

1шт.

17

0750106

Planet Pinion Carrier

(SUB FOR TH0750106)

1шт.

18

0750107

Gear

(SUB FOR TH0750107)

3шт.

19

0750108

Needle Bearing

(SUB FOR TH0750108)

3шт.

20

0750109

Bearing Race

(SUB FOR TH0750109)

3шт.

22

0750110

Pinion Shaft

(SUB FOR TH0750110)

1шт.

23

0750111

Thrust Washer

(SUB FOR TH0750111)

1шт.

0750112

Thrust Washer

(SUB FOR TH0750112)

1шт.

0750113

Thrust Washer

(SUB FOR TH0750113)

1шт.

24

0750114

Cover

(SUB FOR TH0750114)

1шт.

25

A811155

O-Ring

(A) (SUB FOR AT215657)

1шт.

26

0436521

Retainer

(SUB FOR TH0436521)

1шт.

27

0436608

Fitting Plug

(SUB FOR AT218054)

3шт.

28

M800650

Packing

(A)

3шт.

80

0726907

Seal Kit

(SUB FOR TH0726907)(CONT AINS ALL PARTS MARKED A)

1шт.

85

4420998

Hydraulic Motor

(SUB FOR TH4420998)(NOT ILLUSTRATED) (C ONTAINS ALL ITEMS ON THIS PAGE - ADDITIO NAL COMPONENTS LISTED ON PREVIOUS PAGE)

1шт.
