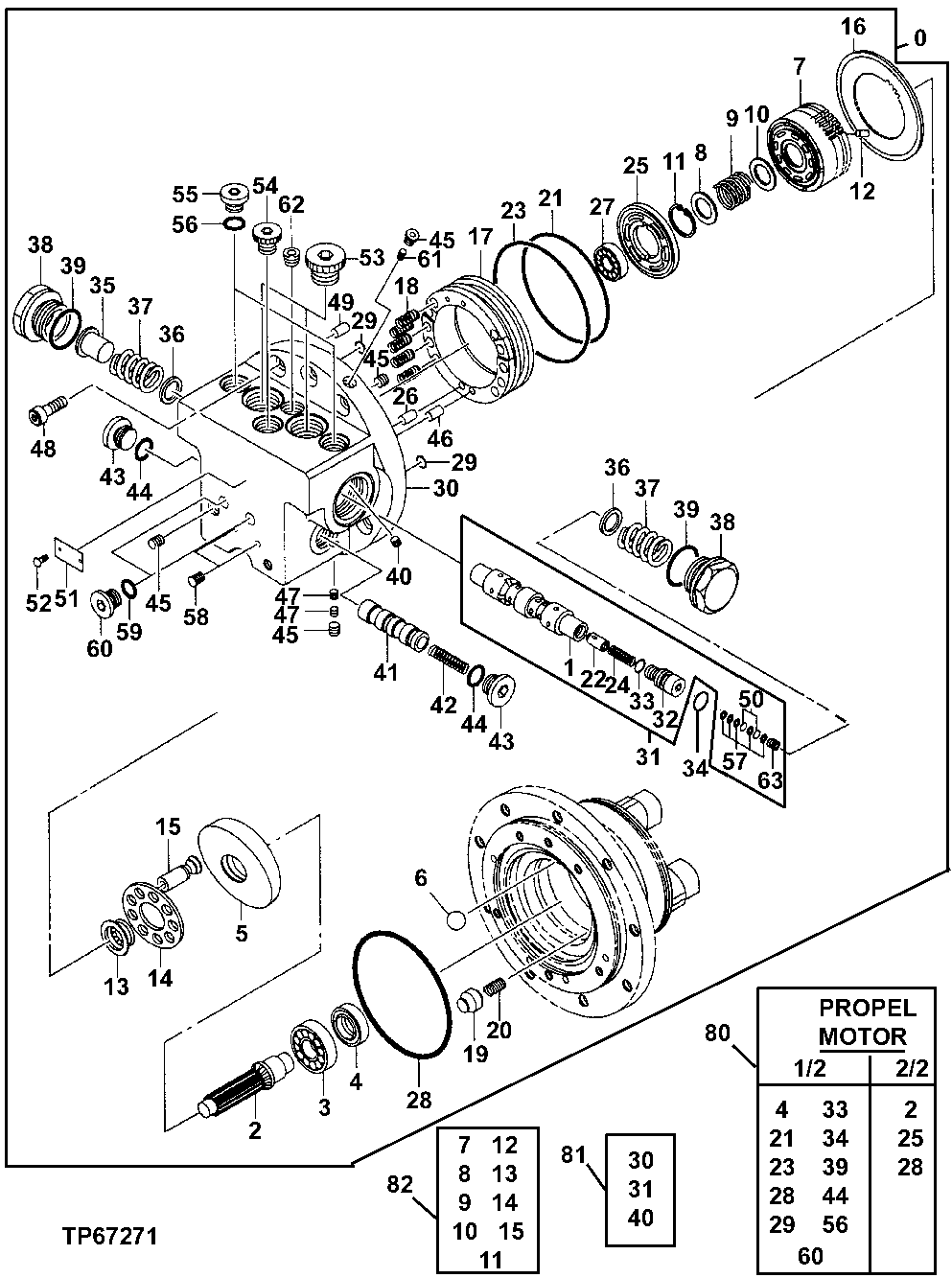

Запчасти John Deere 5ZTS 10 - PROPEL MOTOR (1/2) 0260 HYDRAULIC SYSTEM

0

4420998

Hydraulic Motor

Contains All Components On This Page - Al so Includes Parts Shown On Following Page

1шт.

1

Spool

1шт.

2

0436401

Shaft

1шт.

3

0436402

Ball Bearing

1шт.

4

0733501

Seal

SUB FOR 4S01088

1шт.

5

0750201

Swash Plate

1шт.

6

0750002

Ball

SUB FOR TH0750002

2шт.

7

Cylinder Block

1шт.

8

Washer

1шт.

9

Spring

1шт.

10

Seat

1шт.

11

Snap Ring

1шт.

12

Pin

3шт.

13

Holder

1шт.

14

Plate

1шт.

15

Piston

9шт.

16

0726901

Disk

SUB FOR TH0726901

1шт.

17

0726902

Piston

SUB FOR TH0726902

1шт.

18

0726903

Spring

SUB FOR TH0726903

8шт.

19

0750003

Piston

SUB FOR TH0750003

2шт.

20

0436413

Spring

SUB FOR TH0436413

2шт.

21

0726904

O-Ring

1шт.

22

Check Valve

2шт.

23

0726905

O-Ring

1шт.

24

0398002

Spring

SUB FOR TH0398002

2шт.

25

0436414

Plate

SUB FOR TH0436414

1шт.

26

0396703

Dowel Pin

SUB FOR AT251718

1шт.

27

0436415

Ball Bearing

SUB FOR TH0436415

1шт.

28

A810120

O-Ring

SUB FOR TH100031

1шт.

29

CH11568

Packing

4шт.

30

Plate

1шт.

31

Spool

1шт.

32

0750004

Fitting Plug

SUB FOR TH0750004

2шт.

33

CH17167

O-Ring

2шт.

34

CH10568

Packing

2шт.

35

0750006

Plate

SUB FOR TH0750006

2шт.

36

0750007

Plate

SUB FOR TH0750007

2шт.

37

0750008

Spring

SUB FOR TH0750008

2шт.

38

0750009

Fitting Plug

SUB FOR TH0750009

2шт.

39

TH101926

O-Ring

2шт.

40

0436603

Orifice

SUB FOR TH0436603

2шт.

41

Spool

1шт.

42

0436602

Spring

SUB FOR TH0436602

1шт.

43

0311336

Pipe Plug

SUB FOR TH109082

2шт.

44

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

2шт.

45

15H560

Pipe Plug

1/16"

5шт.

46

0726906

Pin Fastener

SUB FOR TH0726906

2шт.

47

0436603

Orifice

SUB FOR TH0436603

4шт.

48

19M8440

Screw

M10 X 25 SUB FOR TH0167922

6шт.

49

0397910

Dowel Pin

SUB FOR TH0397910

2шт.

50

0631411

Orifice

SUB FOR AT251787

4шт.

51

Identification Plate

1шт.

52

Screw

2шт.

53

Plug

2шт.

54

Plug

1шт.

55

0436608

Fitting Plug

SUB FOR AT218054

2шт.

56

M800650

Packing

2шт.

57

0444215

Shim

SUB FOR AT200226

14шт.

58

0750010

Fitting Plug

SUB FOR TH0750010

2шт.

59

M800650

Packing

2шт.

60

0436608

Fitting Plug

SUB FOR AT218054

2шт.

61

0436603

Orifice

SUB FOR TH0436603

1шт.

62

942011

Fitting Plug

SUB FOR 94-2011 AND TH100434

1шт.

63

0750005

Fitting Plug

SUB FOR TH0750005

2шт.

80

0726907

Seal Kit

SUB FOR TH0726907

1шт.

81

0726908

Plate

SUB FOR TH0726908

1шт.

82

0726909

Cylinder Block

SUB FOR TH0726909

1шт.
