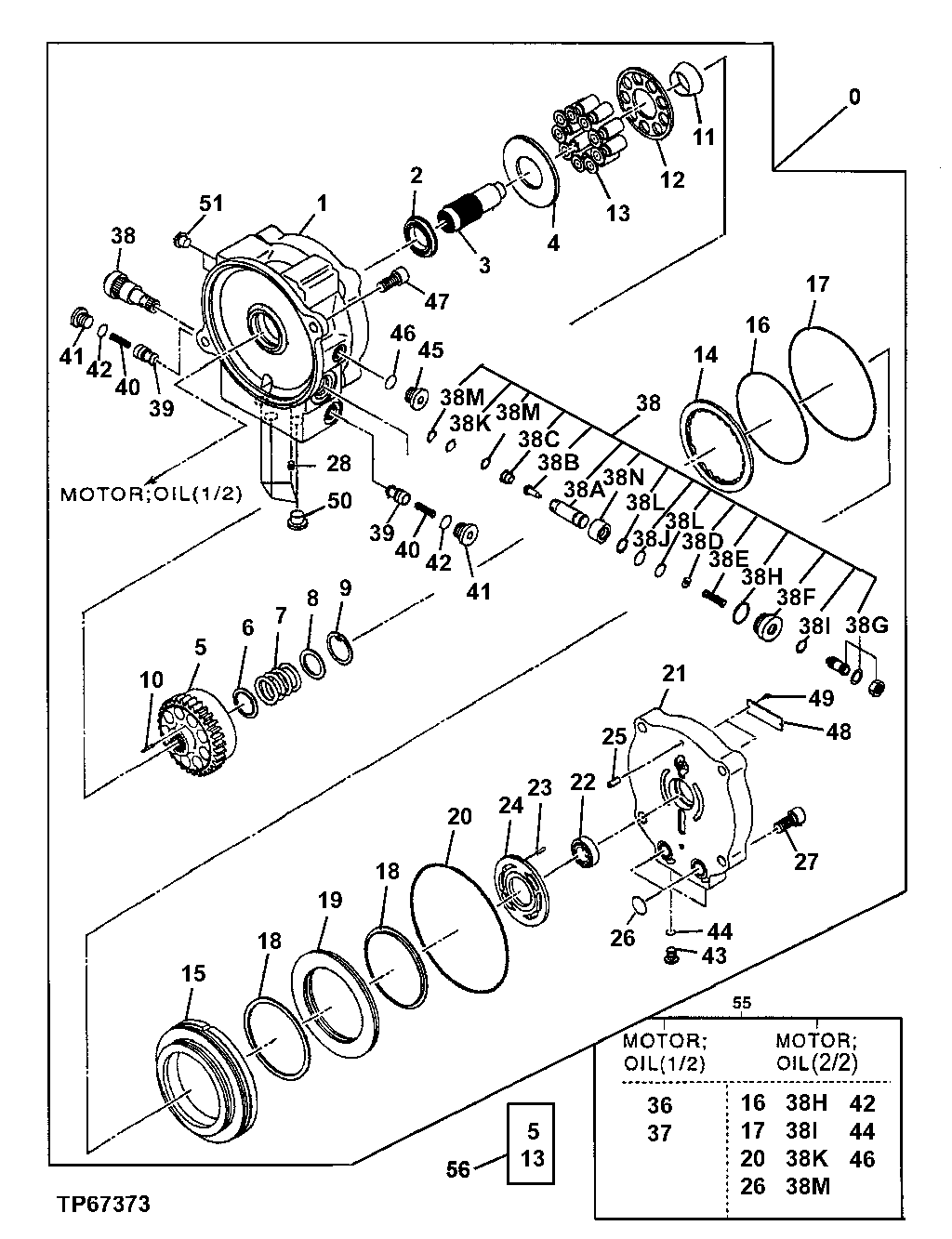

Запчасти John Deere 5ZTS 188 - SWING MOTOR (2/2) 4360 HYDRAULICS

0

4415275

Hydraulic Motor

(CONTAINS ALL ITEMS THIS PAGE , ADDITIONAL COMPONENTS ON PRE VIOUS PAGE) (SUB FOR TH4415275 )

1шт.

1

0749201

Case

(SUB FOR TH0749201)

1шт.

2

0732005

Bearing

(SUB FOR TH0732005)

1шт.

3

0732002

Shaft

(SUB FOR TH0732002)

1шт.

4

0396807

Wear Plate

(SUB FOR AT251719)

1шт.

5

Cylinder Block

(NOT AVAILABLE)

1шт.

6

0397905

Retainer

(SUB FOR AT251721)

1шт.

7

0434006

Spring

(SUB FOR AT251750)

1шт.

8

0434007

Washer

(SUB FOR AT251751)

1шт.

9

0396815

Snap Ring

(SUB FOR AT251720)

1шт.

10

0434005

Pin

(SUB FOR AT251749)

3шт.

11

0397908

Holder

(SUB FOR AT251722)

1шт.

12

0732004

Plate

(SUB FOR TH0732004)

1шт.

13

Piston

9шт.

14

0733403

Disk

(SUB FOR TH0733403)

1шт.

15

0733404

Piston

(SUB FOR TH0733404)

1шт.

16

AT264320

O-Ring

109.400 X 3.100 mm (4.307" X 0.122") (SUB FOR T110448)

1шт.

17

A811135

O-Ring

(SUB FOR AT200002)

1шт.

18

0733405

Plate

(SUB FOR TH0733405)

2шт.

19

0733406

Disk Spring

(SUB FOR TH0733406)

1шт.

20

0158830

O-Ring

(SUB FOR TH105706)

1шт.

21

0748702

Cover

(SUB FOR TH0748702)

1шт.

22

0397915

Ball Bearing

(SUB FOR AT251725)

1шт.

23

0396703

Dowel Pin

(SUB FOR AT251718)

1шт.

24

0732003

Plate

(SUB FOR TH0732003)

1шт.

25

0311313

Pin

(SUB FOR TH109056)

2шт.

26

985099

O-Ring

(SUB FOR TH101479)

2шт.

27

0168006

Bolt

(SUB FOR TH0168006)

5шт.

28

0397916

Orifice

(SUB FOR TH0397916)

1шт.

38

0749801

Pressure Relief Valve

2шт.

38A

Housing

1шт.

38B

Poppet

1шт.

38C

Seat

1шт.

38D

Plate

1шт.

38E

Spring

1шт.

38F

Plug

1шт.

38G

Adjuster

1шт.

38H

O-Ring

1шт.

38I

O-Ring

1шт.

38J

O-Ring

1шт.

38K

O-Ring

1шт.

38L

Back-Up Ring

2шт.

38M

Back-Up Ring

2шт.

38N

Piston

1шт.

39

0647003

Check Valve

(SUB FOR TH0647003)

2шт.

40

AT251801

Spring

2шт.

41

0311336

Pipe Plug

(SUB FOR TH109082)

2шт.

42

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

2шт.

43

0647006

Fitting Plug

(SUB FOR AT251802)

2шт.

44

4506408

O-Ring

7.800 X 1.900 mm (0.307" X 0.075") (SUB FOR TH101490)

2шт.

45

0436608

Fitting Plug

(SUB FOR AT218054)

1шт.

46

M800650

Packing

1шт.

47

0168006

Bolt

(SUB FOR TH0168006)

2шт.

48

Identification Plate

1шт.

49

Screw

2шт.

50

Plug

4шт.

51

Plug

1шт.

55

0748605

Repair Kit

(ALSO CONTAINS COMPONENTS SHOWN ON PREVIOUS PAGE) (SUB FOR TH0748605)

1шт.

56

0732007

Cylinder Kit

(SUB FOR TH0732007)

1шт.
