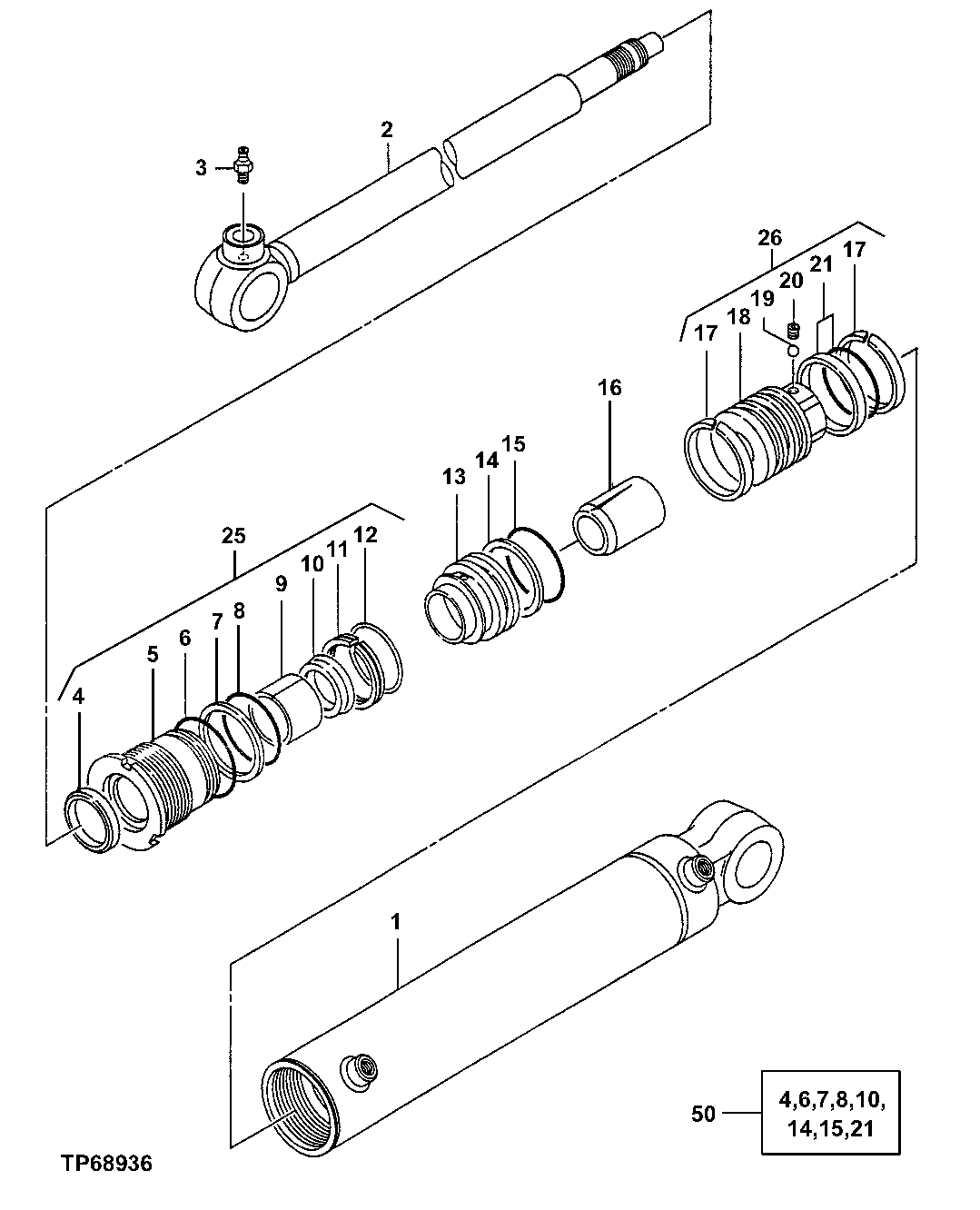

Запчасти John Deere 5ZTS 177 - SWING CYLINDER 3360 HYDRAULIC SYSTEM

1

0744801

Hydraulic Cylinder Barrel

(SUB FOR TH0744801)

1шт.

2

0744802

Hydraulic Cylinder Rod

(SUB FOR TH0744802)

1шт.

3

0429920

Lubrication Fitting

(SUB FOR TH0429920)

1шт.

4

0663001

Seal

(SUB FOR AT251899)

1шт.

5

0744804

Hydr. Cylinder Rod Guide

(SUB FOR TH0744804)

1шт.

6

CH17854

Packing

1шт.

7

0405205

Packing

(SUB FOR TH0405205)

1шт.

8

CH17160

Packing

(SUB FOR TH0478712)

1шт.

9

0637901

Bushing

(SUB FOR TH0479002, 0479002)

1шт.

10

AT264285

Sealing Ring

(SUB FOR AT200293, 0453508)

1шт.

11

0478904

Ring

(SUB FOR TH0478904)

1шт.

12

0478905

Stop

(SUB FOR TH0478905)

1шт.

13

0744805

Retainer

(SUB FOR TH0744805)

1шт.

14

0405205

Packing

(SUB FOR TH0405205)

1шт.

15

TH105684

O-Ring

(SUB FOR TH0478907)

1шт.

16

0744807

Bearing

(SUB FOR TH0744807)

1шт.

17

AT264287

Ring

(SUB FOR AT200296)

2шт.

18

0481604

Piston

(SUB FOR TH0481604)

1шт.

19

0431910

Ball

(SUB FOR AT203717)

1шт.

20

0479012

Set Screw

(SUB FOR TH0479012)

1шт.

21

AT264286

Ring

(SUB FOR AT200295, 0453510)

1шт.

25

0744803

Piston

(SUB FOR TH0744803)

1шт.

26

Piston

(TH0744806 AND 0744806 NO LONGER AVAILABLE)

1шт.

50

0744808

Hydraulic Cylinder Kit

(SUB FOR TH0744808)

1шт.
