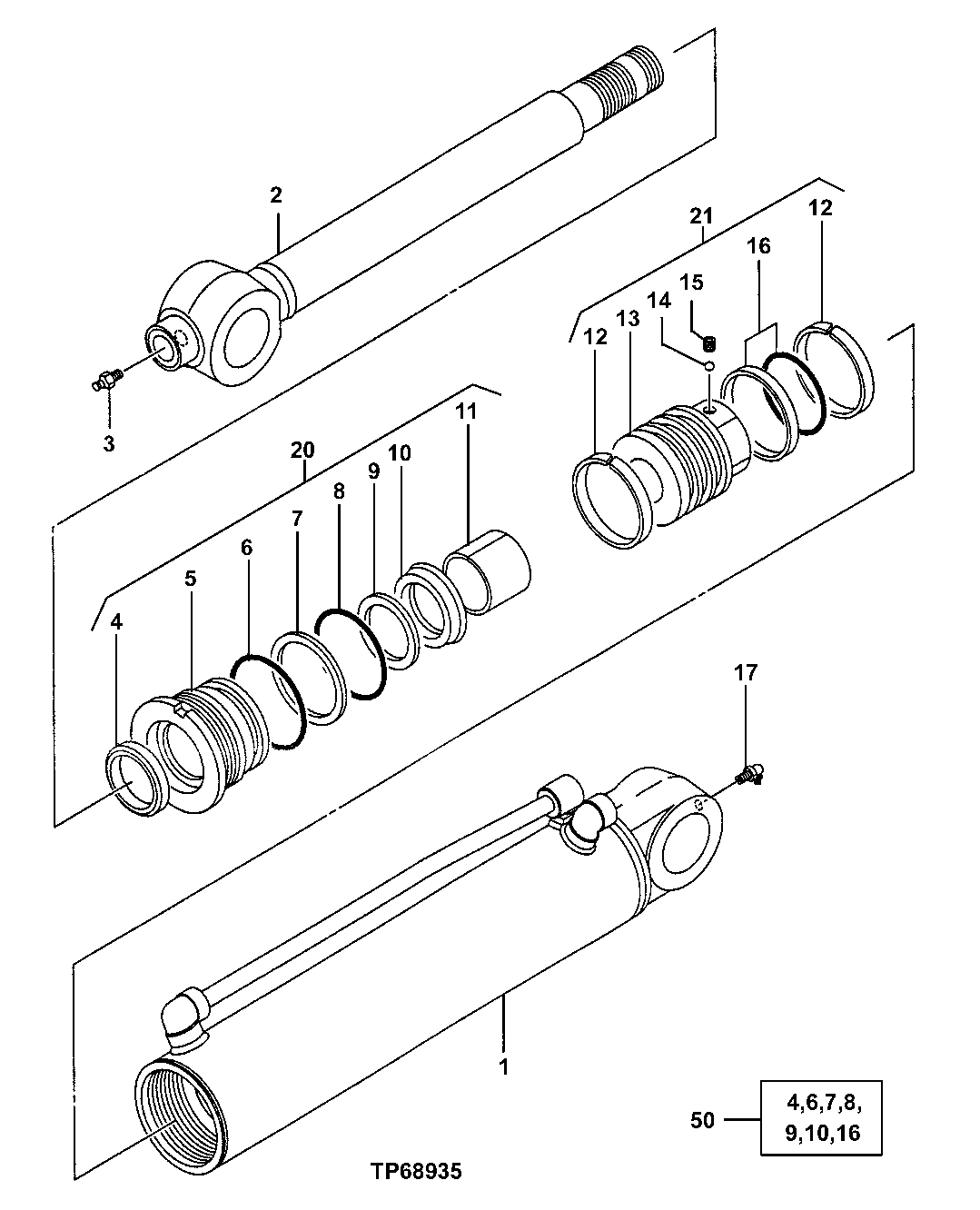

Запчасти John Deere 5ZTS 173 - BUCKET CYLINDER 3360 HYDRAULIC SYSTEM

1

0849501

Hydraulic Cylinder Barrel

(SUB FOR TH0744701 OR 0744701)

1шт.

2

0849502

Rod

(SUB FOR TH0744702 OR 0744702)

1шт.

3

0429920

Lubrication Fitting

(SUB FOR TH0429920)

1шт.

4

0682001

Ring

(SUB FOR TH0658606 OR 0658606)

1шт.

5

0744704

Hydr. Cylinder Rod Guide

(SUB FOR TH0744704)

1шт.

6

AT264334

O-Ring

(SUB FOR TH100101)

1шт.

7

0341209

Back-Up Ring

(SUB FOR AT120984)

1шт.

8

CH18696

Packing

(SUB FOR TH0736204)

1шт.

9

0481105

Back-Up Ring

(SUB FOR TH0481105)

1шт.

10

0658605

Packing

(SUB FOR TH0658605)

1шт.

11

0658604

Bushing

(SUB FOR TH0658604)

1шт.

12

0652205

Wear Ring

(SUB FOR TH0652205)

2шт.

13

0744706

Piston

(SUB FOR TH0744706)

1шт.

14

0431910

Ball

(SUB FOR AT203717)

1шт.

15

0479012

Set Screw

(SUB FOR TH0479012)

1шт.

16

0341211

Ring

(SUB FOR AT120986)

1шт.

17

AH226482

Lubrication Fitting

(SUB FOR 0225709 OR CH18478)

1шт.

20

Hydr. Cylinder Rod Guide

(TH0744703 AND 0744703 NO LONGER AVAILABLE)

1шт.

21

Piston

(TH0744705 AND 0744705 NO LONGER AVAILABLE)

1шт.

50

0744707

Hydraulic Cylinder Kit

(SUB FOR TH0744707)

1шт.
