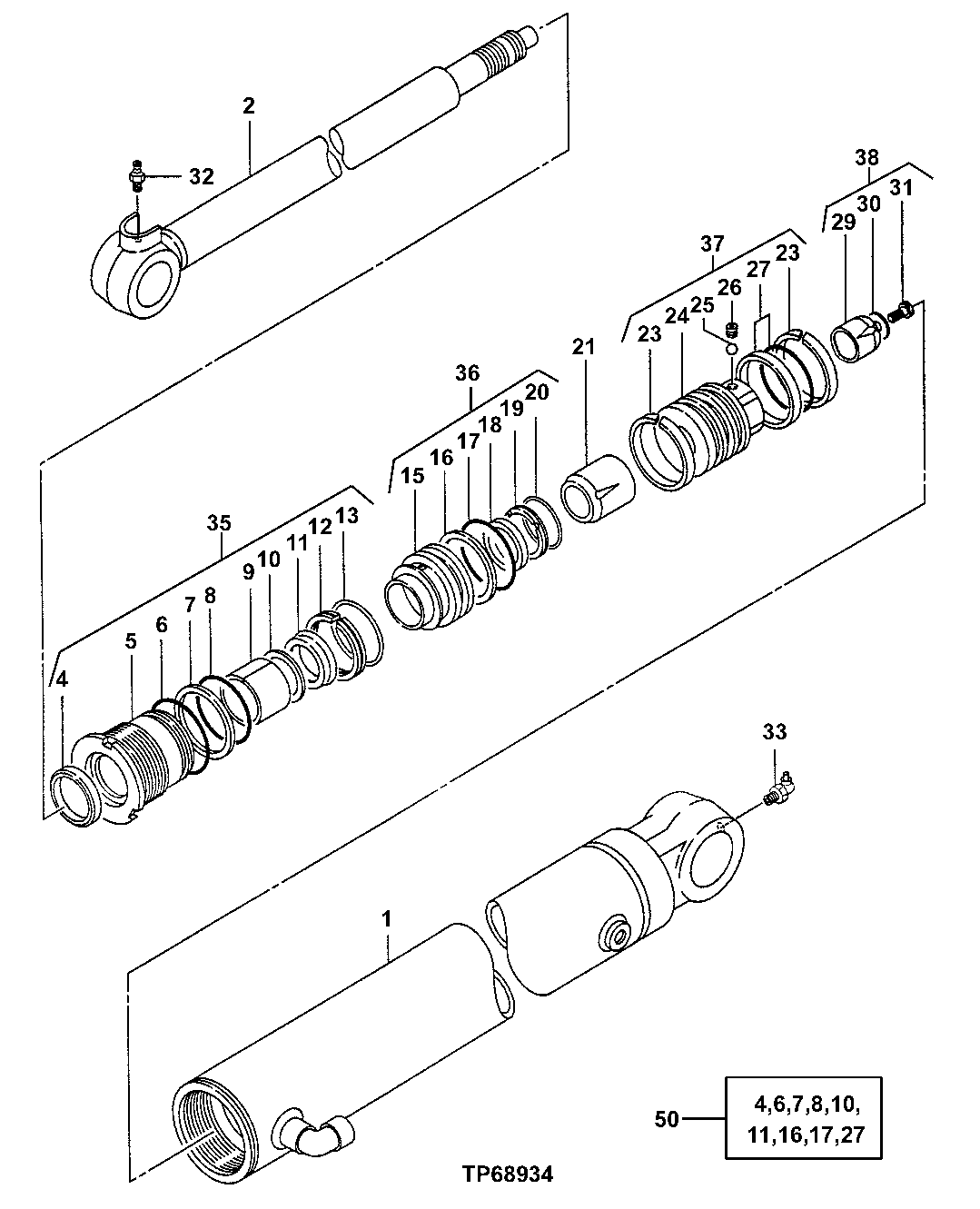

Запчасти John Deere 5ZTS 171 - ARM CYLINDER 3360 HYDRAULIC SYSTEM

1

0850401

Hydraulic Cylinder Barrel

SUB FOR 0745201 OR TH0745201

1шт.

2

0850402

Rod

SUB FOR TH0745202 OR 0745202

1шт.

4

0663001

Seal

SUB FOR AT251899

1шт.

5

0744404

Hydr. Cylinder Rod Guide

SUB FOR TH0744404

1шт.

6

TH105684

O-Ring

SUB FOR TH0478907

1шт.

7

0479008

Back-Up Ring

SUB FOR TH0479008

1шт.

8

A811070

O-Ring

SUB FOR TH0656707 OR 0656707

1шт.

9

0637901

Bushing

SUB FOR TH0479002, 0479002

1шт.

10

0735606

Back-Up Ring

SUB FOR TH0735606

1шт.

11

0479003

Packing

SUB FOR TH0479003

1шт.

12

0481004

Ring

SUB FOR TH0481004

1шт.

13

0481005

Stop

SUB FOR TH0481005

1шт.

15

0481006

Retainer

SUB FOR TH0481006

1шт.

16

0479008

Back-Up Ring

SUB FOR TH0479008

1шт.

17

AT264334

O-Ring

SUB FOR TH0658607, TH100101

1шт.

18

0480908

Ring

SUB FOR TH0480908

2шт.

19

0480909

Spacer

SUB FOR TH0480909

4шт.

20

0480910

Stop

SUB FOR TH0480910

1шт.

21

0745204

Bearing

SUB FOR TH0745204

1шт.

23

0479010

Ring

SUB FOR AT251766

2шт.

24

0735607

Piston

SUB FOR AT251962

1шт.

25

0370110

Ball

SUB FOR AT251764, 0478719

1шт.

26

22M7080

Set Screw

M8 X 8 SUB FOR AT251765, 0326308 OR M000808

1шт.

27

0432304

Ring

SUB FOR TH0479011 OR 0479011

1шт.

29

0479103

Bearing

SUB FOR TH0479103

1шт.

30

0479104

Washer

SUB FOR AT251767

1шт.

31

0479105

Cap Screw

SUB FOR AT251768

1шт.

32

0429920

Lubrication Fitting

SUB FOR TH0429920

1шт.

33

AH226482

Lubrication Fitting

SUB FOR TH0481204, 0481 204, 0225709 OR CH18478

1шт.

35

Hydr. Cylinder Rod Guide

0744404 AND TH0744404 NO LONGER AVAILABLE

1шт.

36

Retainer

0745203 OR TH0745203 NO LONGER AVAILABLE FOR SERVICE, FURNISH INDIVIDUAL COMPONENTS

1шт.

37

Piston

0744406 NO LONGER AVAILABLE

1шт.

38

Ring

TH0745205 OR 0745205 NO LONGER AVAILABLE FOR SERVICE - ORDER INDIVIDUAL COMPONENTS

1шт.

50

0849304

Seal Kit

SUB FOR TH0744408 OR 0744408

1шт.
