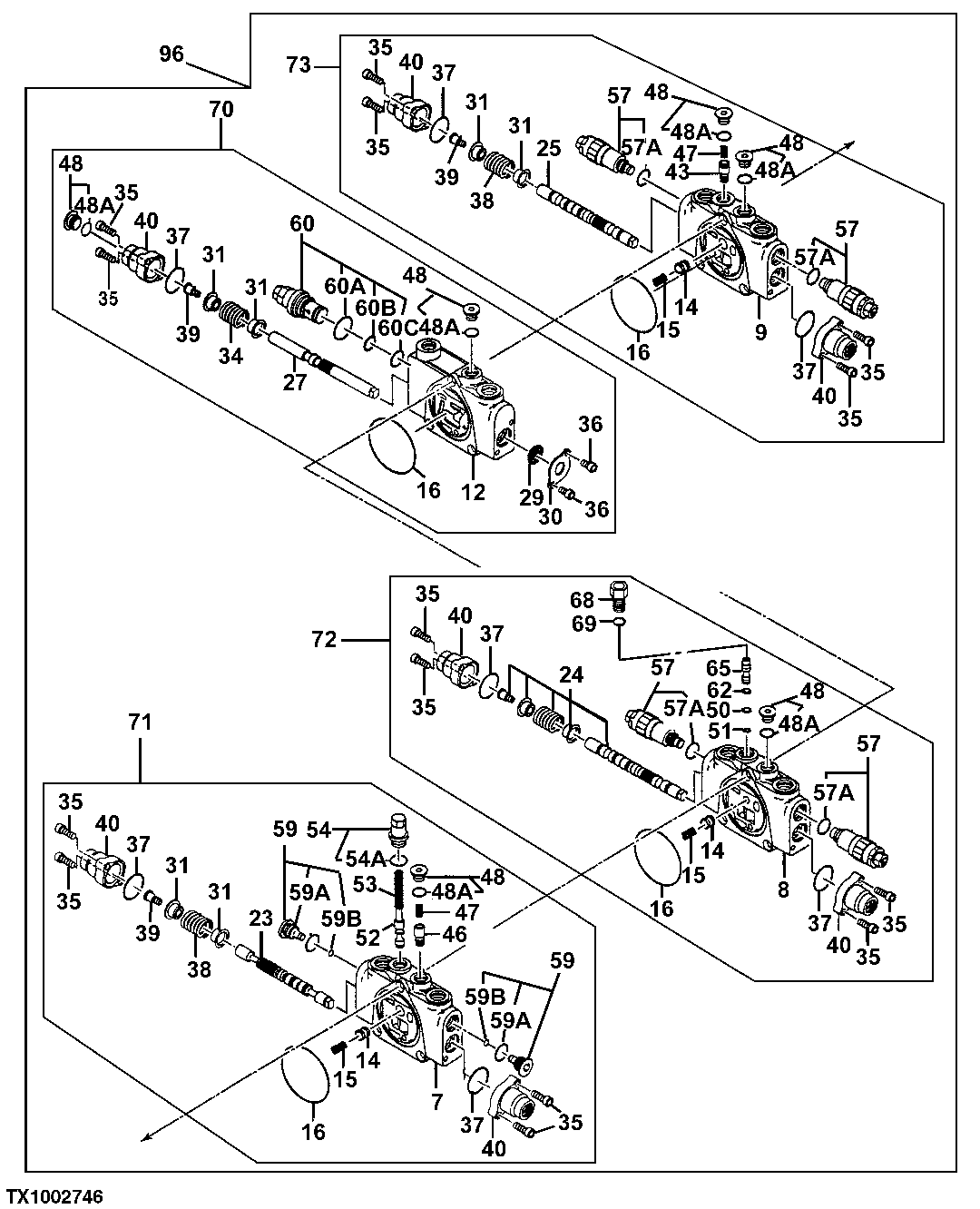

Запчасти John Deere 5ZTS 166 - Control Valve 3360 HYDRAULIC SYSTEM

7

Housing

1шт.

8

Housing

1шт.

9

Housing

1шт.

12

Housing

1шт.

14

0433001

Check Valve

SUB FOR TH0433001

3шт.

15

0433002

Spring

SUB FOR TH0433002

3шт.

16

4254406

O-Ring

SUB FOR AT153883 OR 4S00114

4шт.

23

Spool

1шт.

24

Spool

1шт.

25

Spool

1шт.

27

Spool

1шт.

29

Seal

0432906 NLA, SUB FOR TH0432906

1шт.

30

0432907

Plate

SUB FOR TH0432907

1шт.

31

0432908

Plate

SUB FOR TH0432908

6шт.

34

0749501

Spring

SUB FOR TH0749501

1шт.

35

19M8627

Screw

M6 X 20 SUB FOR TH0432911

14шт.

36

0209423

Bolt

SUB FOR TH100738

2шт.

37

0432912

O-Ring

SUB FOR TH0432912

7шт.

38

0432913

Spring

SUB FOR TH0432913

2шт.

39

0432914

Bolt

SUB FOR TH0432914

3шт.

40

0432915

Cap

SUB FOR TH0432915

7шт.

43

0639103

Check Valve

SUB FOR TH0639103

1шт.

46

0639202

Check Valve

SUB FOR TH0639202

1шт.

47

0432917

Spring

SUB FOR TH0432917

2шт.

48

0432918

Fitting Plug

SUB FOR AT251729

6шт.

48A

M800650

Packing

1шт.

50

CH11568

Packing

1шт.

51

4506405

O-Ring

4.800 X 1.900 mm (0.189" X 0.075") SUB FOR TH102655

1шт.

52

0433009

Valve Spool

SUB FOR TH0433009

1шт.

53

0433010

Spring

SUB FOR AT251732

1шт.

54

0433011

Fitting Plug

SUB FOR AT251733

1шт.

54A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

57

0733802

Pressure Relief Valve

SUB FOR TH0733802

4шт.

57A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

59

0433013

Plug

SUB FOR TH0433013

2шт.

59A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

59B

4506404

O-Ring

SUB FOR TH4506404

1шт.

60

0749502

Pressure Relief Valve

SUB FOR TH0749502

1шт.

60A

0976602

O-Ring

SUB FOR TH103574, AT264354 OR 4S00734

1шт.

60B

0433513

Back-Up Ring

SUB FOR AT251748

1шт.

60C

O-Ring

NLA 0637402, SUB FOR AT251797

1шт.

62

4046168

Back-Up Ring

SUB FOR AT251731 OR 0432922

1шт.

65

0733809

Orifice

SUB FOR TH0733809

1шт.

68

0749404

Adapter Fitting

SUB FOR TH0749404

1шт.

69

M800650

Packing

1шт.

70

0749503

Spool Valve

SUB FOR TH0749503 Pump 2 Inlet

1шт.

71

0768901

Housing

Right Propel

1шт.

72

0749505

Spool Valve

SUB FOR TH0749505 Arm

1шт.

73

0749506

Spool Valve

SUB FOR TH0749506 Bucket

1шт.

96

4429010

Hyd Actuated Control Valve

SUB FOR TH4429010 Additional Components Listed On Previous and Following Pages

1шт.

4447583

Hyd Actuated Control Valve

SUB FOR 4449764 Additional Components Listed On Previous and Following Pages

1шт.
