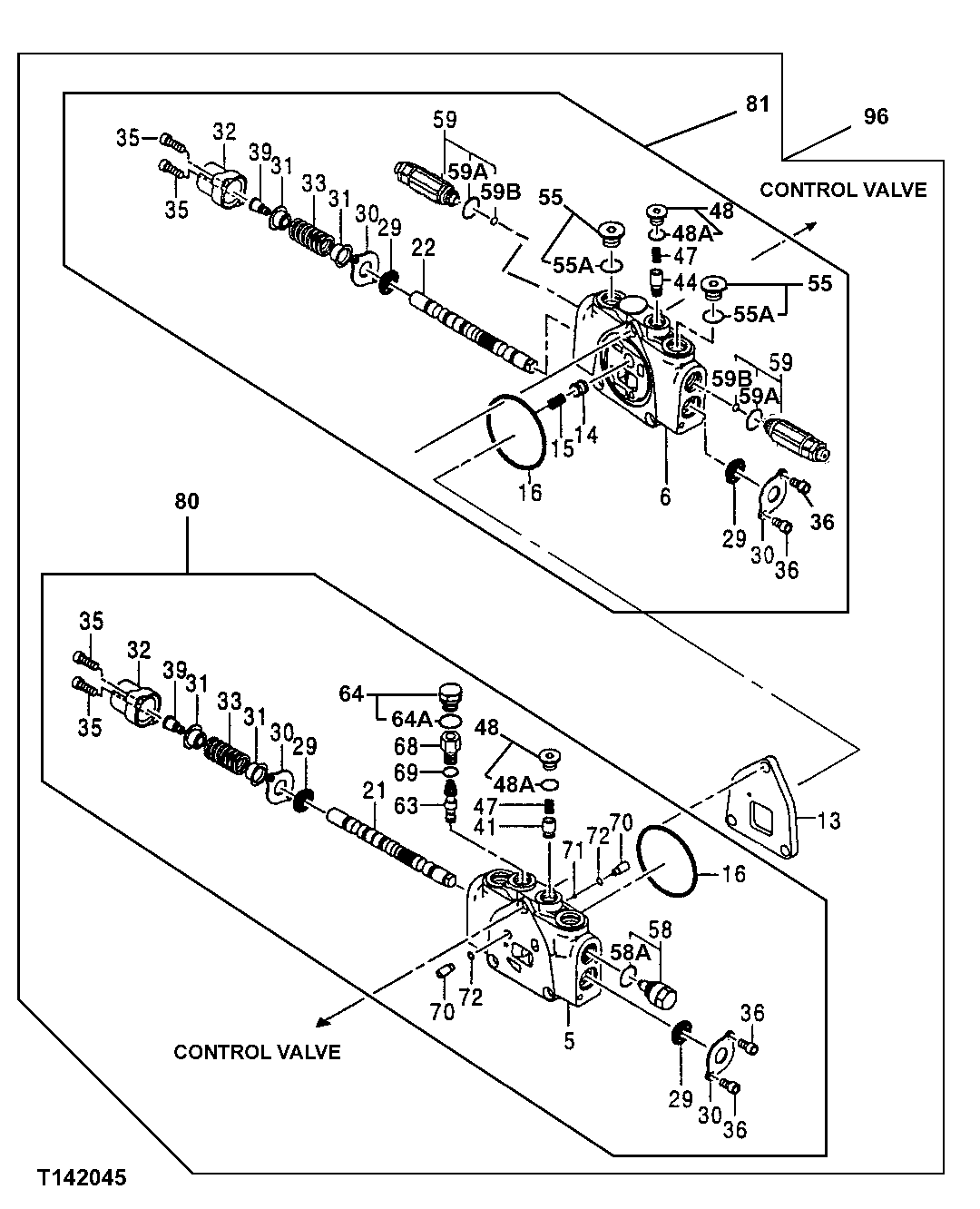

Запчасти John Deere 5ZTS 165 - Control Valve 3360 HYDRAULIC SYSTEM

5

Housing

1шт.

6

Housing

1шт.

13

0749401

Plate

SUB FOR TH0749401

1шт.

14

0433001

Check Valve

SUB FOR TH0433001

1шт.

15

0433002

Spring

SUB FOR TH0433002

1шт.

16

4254406

O-Ring

SUB FOR AT153883 OR 4S00114

2шт.

21

Spool

1шт.

22

Spool

1шт.

29

Seal

0432906 NLA, SUB FOR TH0432906

4шт.

30

0432907

Plate

SUB FOR TH0432907

4шт.

31

0432908

Plate

SUB FOR TH0432908

4шт.

32

0639102

Cap

SUB FOR TH0639102

2шт.

33

0432909

Spring

SUB FOR TH0432909

2шт.

35

19M8627

Screw

M6 X 20 SUB FOR TH0432911

4шт.

36

0209423

Bolt

SUB FOR TH100738

4шт.

39

0432914

Bolt

SUB FOR TH0432914

2шт.

41

0432916

Check Valve

SUB FOR TH0432916

1шт.

44

0639201

Check Valve

SUB FOR TH0639201

1шт.

47

0432917

Spring

SUB FOR TH0432917

2шт.

48

0432918

Fitting Plug

SUB FOR AT251729

2шт.

48A

M800650

Packing

1шт.

55

0664404

Fitting Plug

SUB FOR AT251904

2шт.

55A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

58

0768801

Flow Control Hyd. Valve

SUB FOR TH0768801

1шт.

58A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

59

4435824

Pressure Relief Valve

SUB FOR AT191809 Auxiliary Relief Valve

2шт.

59A

O-Ring

1шт.

59B

O-Ring

1шт.

63

0433418

Bushing

SUB FOR TH0433418

1шт.

64

0433420

Fitting Plug

SUB FOR AT251743

1шт.

64A

M800650

Packing

1шт.

68

0749404

Adapter Fitting

SUB FOR TH0749404

1шт.

69

M800650

Packing

1шт.

70

0733706

Pin

SUB FOR TH0733706

2шт.

71

0733707

Ball

SUB FOR TH0733707

1шт.

72

4092111

O-Ring

SUB FOR TH0733708

2шт.

80

Spool

0749408 NLA; SUB FOR TH0749408

1шт.

81

Spool Valve

0749409 NLA, SUB FOR TH0749409 Auxiliary

1шт.

96

4429010

Hyd Actuated Control Valve

SUB FOR TH4429010 Additional Components Listed On Previous and Following Pages

1шт.

4447583

Hyd Actuated Control Valve

SUB FOR 4449764 Additional Components Listed On Previous and Following Pages

1шт.
