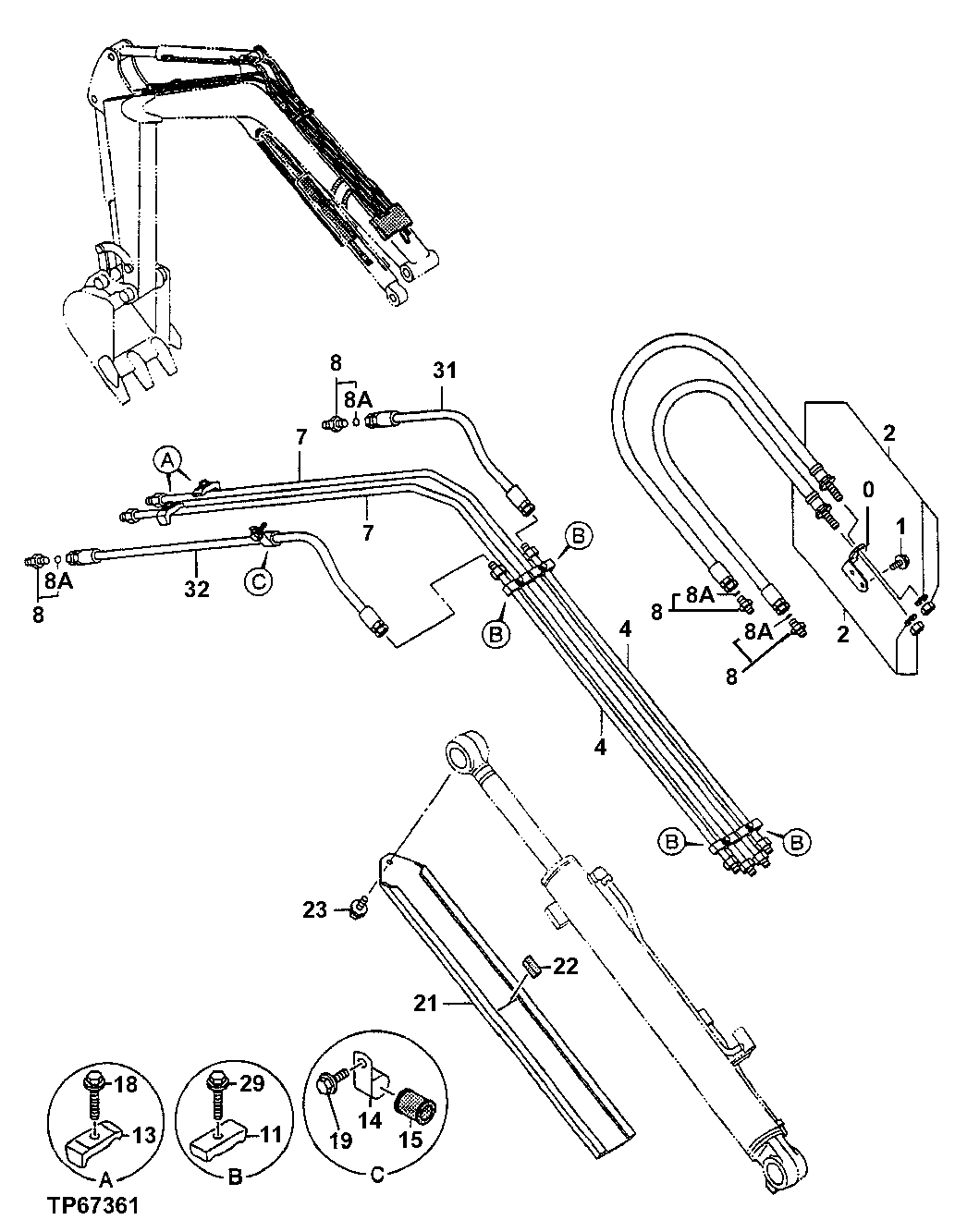

Запчасти John Deere 5ZTS 162 - FRONT PIPINGS 3360 HYDRAULIC SYSTEM

0

4423122

Bracket

(SUB FOR TH4423122)

1шт.

1

19M7932

Cap Screw

M8 X 16

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

12M7056

Lock Washer

8 mm

2шт.

2

4428818

Hydraulic Hose

(SUB FOR TH4428818)

2шт.

4

9752130

Oil Line

(SUB FOR TH9752130)

2шт.

7

8075840

Oil Line

(SUB FOR TH8075840)

2шт.

8

4042031

Adapter Fitting

(SUB FOR TH103891)

4шт.

8A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

11

4331314

Block Clamp

(SUB FOR AT251231)

4шт.

13

4138227

Clamp

(SUB FOR TH4331315 OR 4331315)

2шт.

14

T24432

Clamp

1шт.

15

4374994

Bushing

(SUB FOR TH4374994)

1шт.

18

19M7550

Cap Screw

M10 X 35

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

19

19M7932

Cap Screw

M8 X 16

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

12M7056

Lock Washer

8 mm

1шт.

21

3070379

Cover

(SUB FOR TH3070379)

1шт.

22

4352044

Isolator

(SUB FOR AT251252)

2шт.

23

19M7938

Cap Screw

M10 X 20

1шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

1шт.

12M7066

Lock Washer

10 mm

1шт.

29

19M8008

Cap Screw

M8 X 35

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

12M7056

Lock Washer

8 mm

4шт.

31

4427482

Hydraulic Hose

(SUB FOR TH4427482)

1шт.

32

4427483

Hydraulic Hose

(SUB FOR TH4427483)

1шт.
