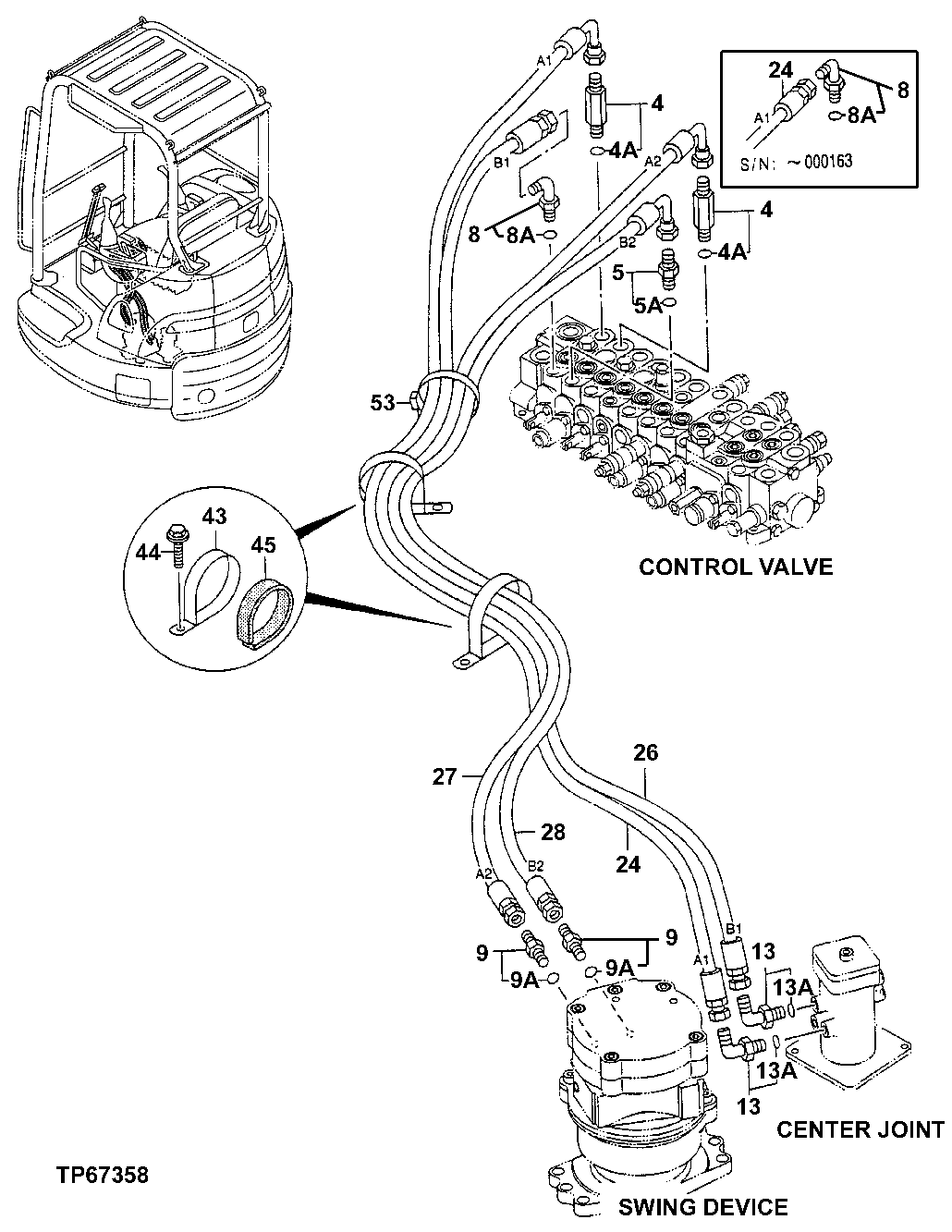

Запчасти John Deere 5ZTS 158 - MAIN PIPINGS 3360 HYDRAULIC SYSTEM

4

4368210

Adapter Fitting

(SUB FOR AT251302)

2шт.

4A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

5

4042031

Adapter Fitting

(SUB FOR TH103891)

1шт.

5A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

8

4162917

Elbow Fitting

(SUB FOR AT251166)

1шт.

8A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

9

4042031

Adapter Fitting

(SUB FOR TH103891)

2шт.

9A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

13

4037761

Hose Fitting

(SUB FOR TH103894)

2шт.

13A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

24

4432904

Hydraulic Hose

(A1) (SUB FOR TH4432904)

1шт.

26

4428015

Hydraulic Hose

(B1) (SUB FOR TH4428015)

1шт.

27

4428016

Hydraulic Hose

(A2) (SUB FOR TH4428016)

1шт.

28

4428017

Hydraulic Hose

(B2) (SUB FOR TH4428017)

1шт.

43

R134002

Clamp

(SUB FOR TH111255 ) (SUB FOR 4193816)

2шт.

44

19M7932

Cap Screw

M8 X 16

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

12M7056

Lock Washer

8 mm

2шт.

45

4429105

Retainer

(SUB FOR TH4429105)

2шт.

53

H77698

Tie Band

1шт.
