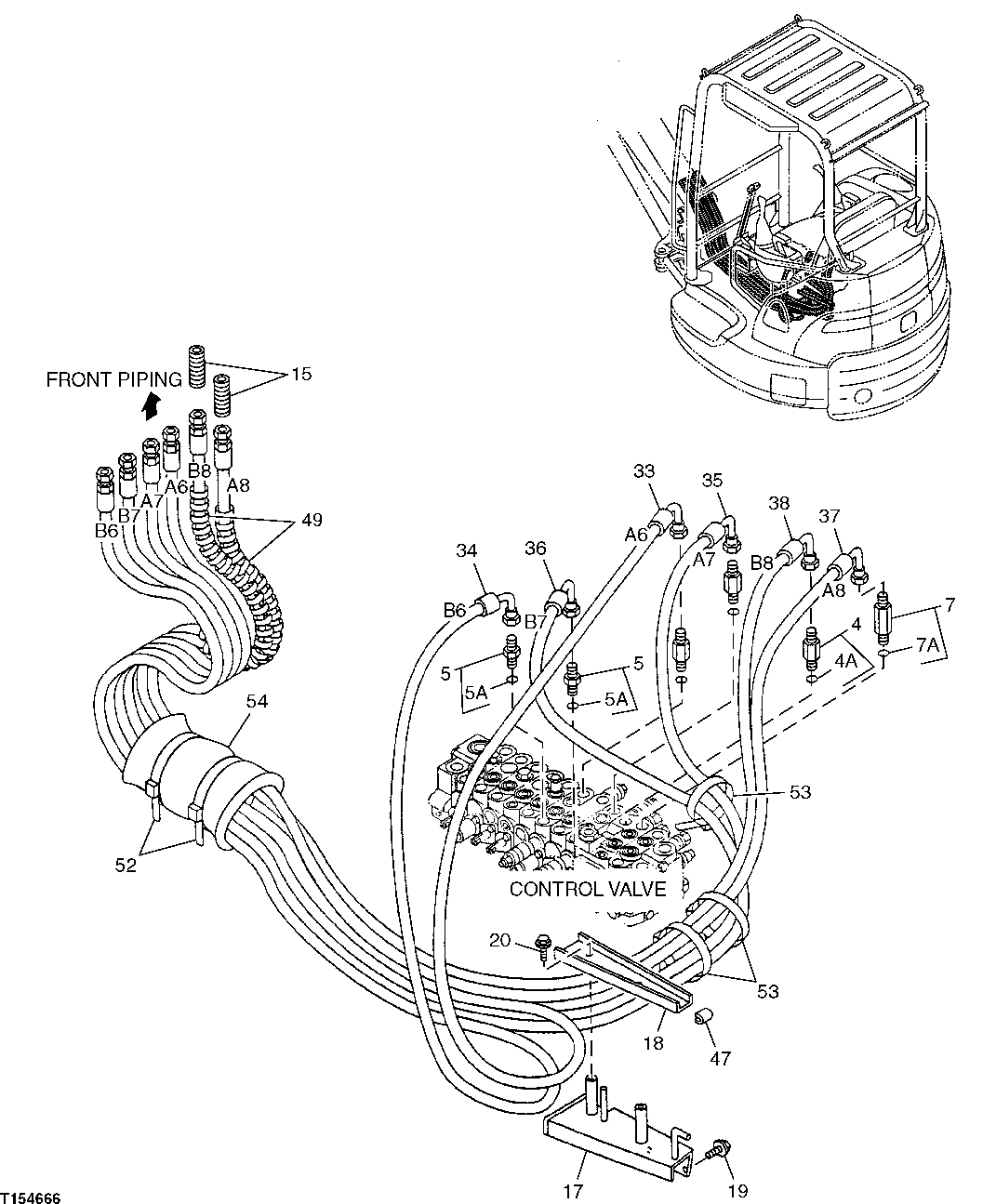

Запчасти John Deere 5ZTS 157 - MAIN PIPING 3360 HYDRAULIC SYSTEM

4

4368210

Adapter Fitting

(SUB FOR AT251302)

3шт.

4A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

5

4042031

Adapter Fitting

(SUB FOR TH103891)

2шт.

5A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

7

4419496

Fitting

(SUB FOR TH4419496)

1шт.

7A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

15

4400458

Hose Guard

(SUB FOR 4433810, 4350503, 4434365, 4427938 OR 4422674)

2шт.

17

8076333

Bracket

(SUB FOR TH8076333)

1шт.

18

4420034

Bracket

(SUB FOR TH4420034)

1шт.

19

19M7402

Cap Screw

M10 X 25

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

20

19M7932

Cap Screw

M8 X 16

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

12M7056

Lock Washer

8 mm

2шт.

33

4428022

Hydraulic Hose

(A6) (SUB FOR TH4428022)

1шт.

34

4428023

Hydraulic Hose

(B6) (SUB FOR TH4428023)

1шт.

35

4428024

Hydraulic Hose

(A7) (SUB FOR TH4428024)

1шт.

36

4428025

Hydraulic Hose

(B7) (SUB FOR TH4428025)

1шт.

37

4428026

Hydraulic Hose

(A8) (SUB FOR TH4428026)

1шт.

38

4428027

Hydraulic Hose

(B8) (SUB FOR TH4428027)

1шт.

47

4431045

Isolator

1шт.

49

Hose Guard

(MAKE FROM XHG-075, BULK MATER IAL CUT TO LENGTH) (SUB FOR TH4 320661, 4044420 ( 4327294 NLA))

2шт.

52

H77698

Tie Band

(SUB FOR TH4323613 OR 4323613)

2шт.

53

H77698

Tie Band

3шт.

54

4370544

Sheet

1шт.
