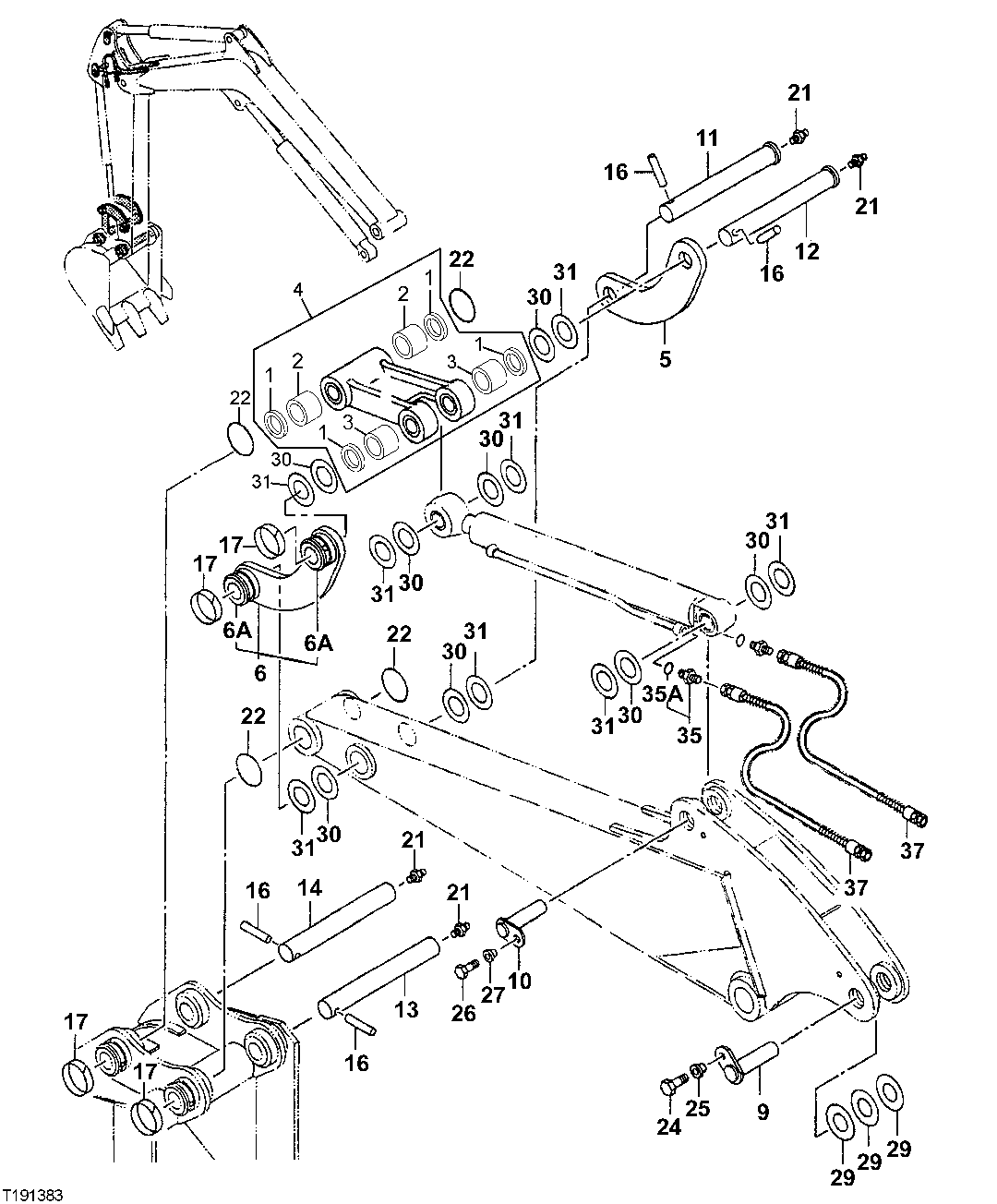

Запчасти John Deere 5ZTS 150 - ARM SUPPORT 3340 BACKHOE AND EXCAVATOR FRAMES

1

4473086

Seal

(SUB FOR 4347250 OR 4279530)

6шт.

2

4428636

Bushing

(SUB FOR 4340371)

2шт.

3

4376637

Bushing

(SUB FOR TH4351960 OR 4351960)

2шт.

4

8060334

Link

(SUB FOR TH8060334)

1шт.

5

4416335

Link

(SUB FOR TH4416335)

1шт.

6

8073993

Link

(SUB FOR TH8073993)

1шт.

6A

4244702

Stop

(SUB FOR TH4244702)

2шт.

9

9742469

Pin

(SUB FOR TH9742469)

1шт.

10

9751493

Pin Fastener

(SUB FOR 9750945)

1шт.

11

4340409

Pin

(SUB FOR TH4340409)

1шт.

12

4340410

Pin

(SUB FOR TH4340410)

1шт.

13

4487429

Pin

(SUB FOR TH4340411, 4340411, 44669947)

1шт.

14

4340412

Pin

(SUB FOR TH4340412)

1шт.

16

4244708

Pin Fastener

16 X 57 mm (0.630" X 2. 244") (SUB FOR AT200417)

4шт.

17

4351621

Retainer

(SUB FOR TH4351621)

4шт.

21

TH100074

Lubrication Fitting

4шт.

22

4275533

O-Ring

(SUB FOR TH4275533)

4шт.

24

19M7877

Cap Screw

M14 X 30

1шт.

25

4339355

Bushing

(SUB FOR AT251237)

1шт.

26

19M8011

Cap Screw

M12 X 30

1шт.

27

4339354

Bushing

(SUB FOR TH4339354)

1шт.

29

4377897

Solid Shim

(SUB FOR TH4377897)(0.5)

3шт.

30

4367635

Shim

(SUB FOR TH4367635)(0.5)

8шт.

31

4367636

Shim

(SUB FOR TH4367636)(0.8)

8шт.

35

4042031

Adapter Fitting

(SUB FOR TH103891)

2шт.

35A

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

1шт.

37

4427485

Hydraulic Hose

(SUB FOR TH4427485)

2шт.
