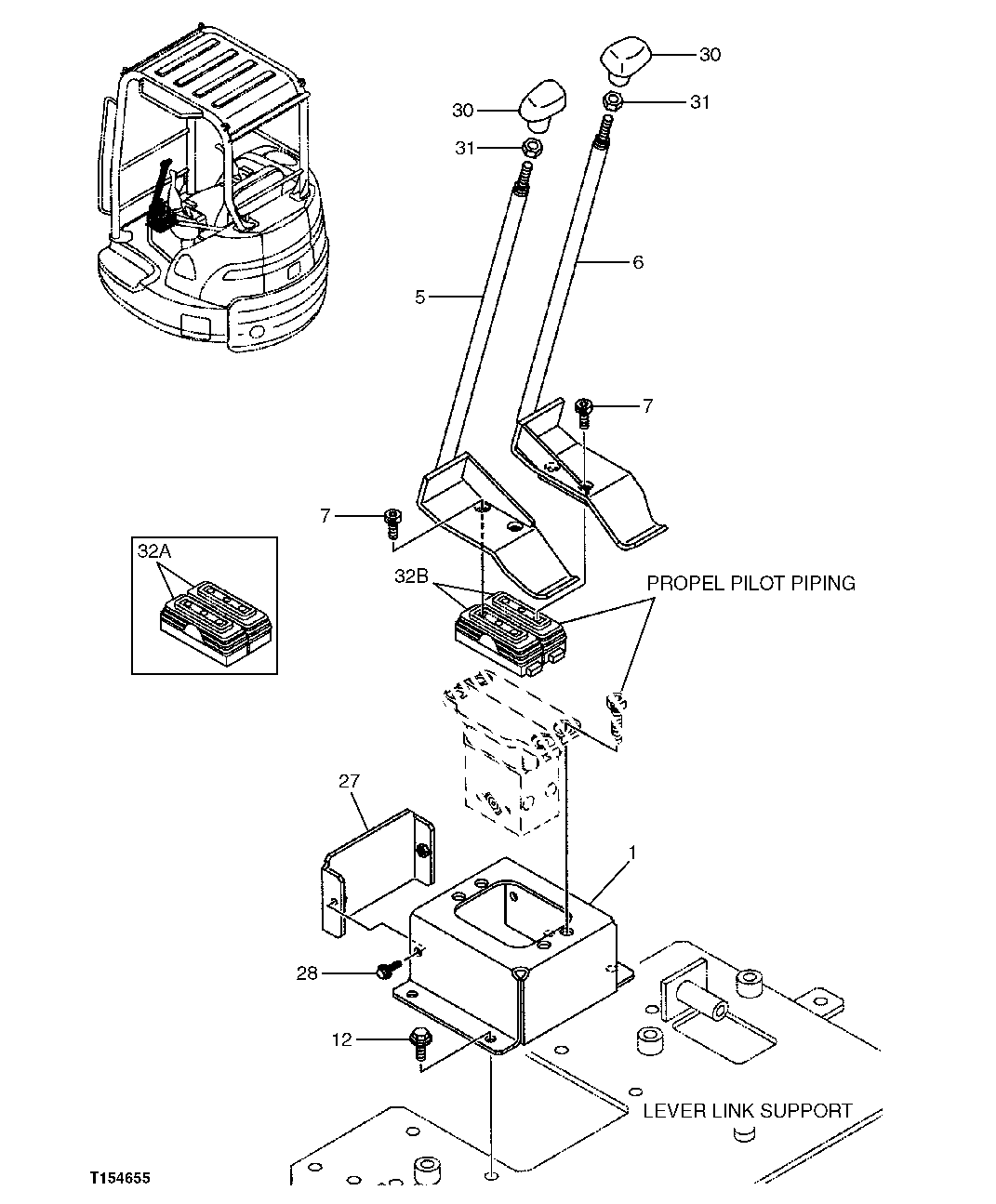

Запчасти John Deere 5ZTS 147 - Propel Control Lever (Front, Swing) 3315 CONTROLS LINKAGE

1

8078329

Support

(SUB FOR TH8078329)

1шт.

5

7038464

Control Lever

(SUB FOR TH7038464)

1шт.

6

7038465

Control Lever

(SUB FOR TH7038465)

1шт.

7

19M7647

Screw

M8 X 16 (SUB FOR AT217709)

4шт.

12

19M7881

Screw

M8 X 20

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

12M7056

Lock Washer

8 mm

4шт.

27

9754821

Cover

(SUB FOR TH9754821)

1шт.

28

19M7077

Cap Screw

M6 X 20

2шт.

24M7267

Washer

6.400 X 11 X 1.600 mm

2шт.

12M7006

Lock Washer

6 mm

2шт.

30

4417442

Grip

(SUB FOR AT258399)

2шт.

31

4417423

Nut

(SUB FOR TH4417423)

2шт.

32A

Boot

(SUB 0757402)( 0757401 NLA)

2шт.

32B

0757402

Boot

2шт.
