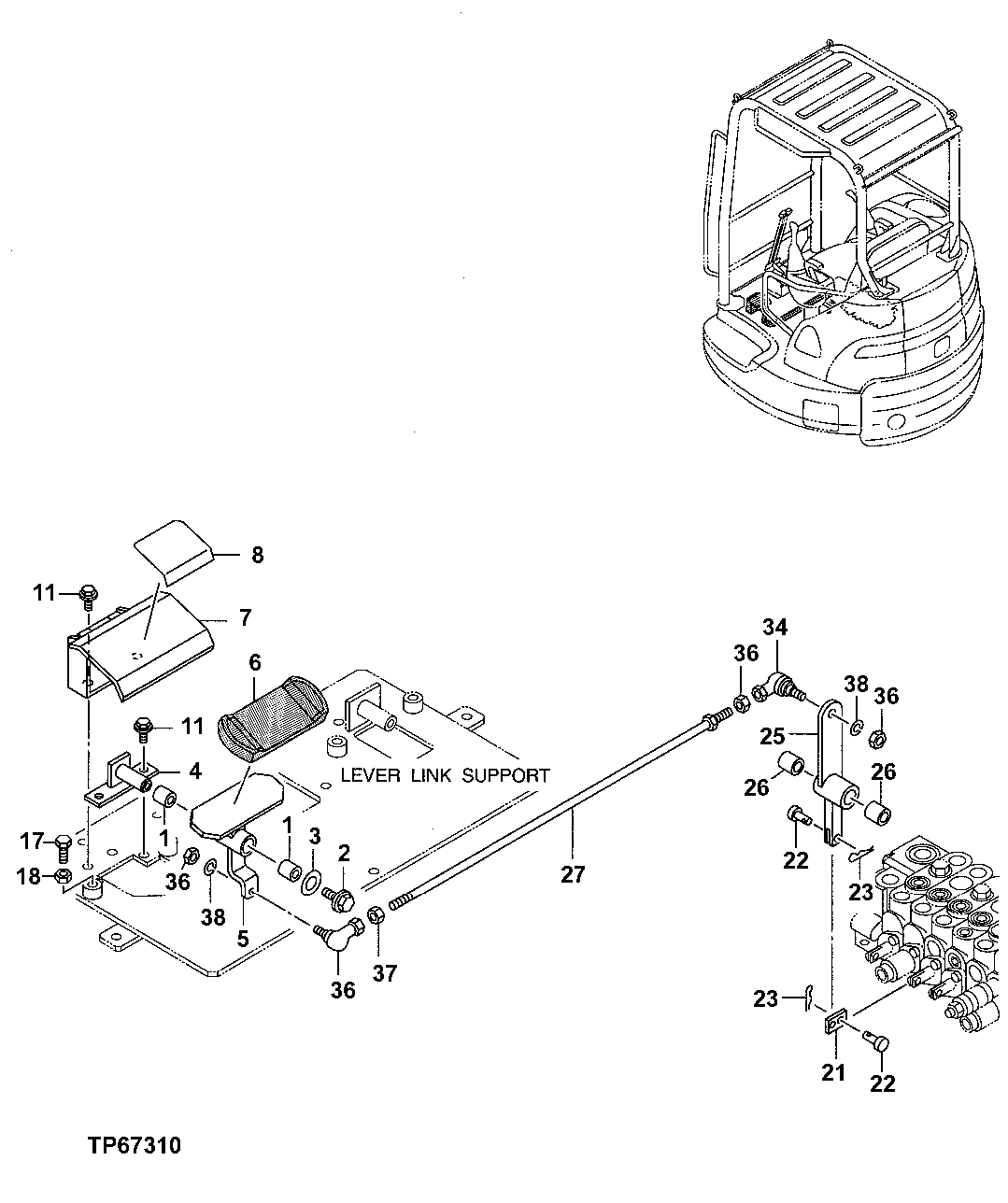

Запчасти John Deere 5ZTS 144 - ATTACHMENT PEDAL 3315 CONTROLS LINKAGE

1

4280298

Bushing

(SUB FOR AT251196)

2шт.

2

19M7881

Screw

M8 X 20

1шт.

12M7056

Lock Washer

8 mm

1шт.

3

4346037

Washer

(SUB FOR AT250610)

1шт.

4

8078328

Bracket

(SUB FOR TH8078328)

1шт.

5

8078330

Pedal

(SUB FOR TH8078330)

1шт.

6

4374008

Cover

(SUB FOR AT251310)

1шт.

7

8074332

Cover

(SUB FOR AT251596)

1шт.

8

4345731

Mat

(SUB FOR AT255935)

1шт.

11

19M7881

Screw

M8 X 20

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

12M7056

Lock Washer

8 mm

4шт.

17

19M7323

Cap Screw

M8 X 40

2шт.

19M7981

Cap Screw

M8 X 55

2шт.

18

14M7273

Nut

M8

2шт.

21

TH4333080

Link

1шт.

4448717

Link

(SUB FOR TH4448717)

1шт.

22

4279607

Pin Fastener

(SUB FOR AT251194)

2шт.

23

4365839

Spring Locking Pin

(SUB FOR AT251295)

2шт.

25

Link

( TH8076141 NO LONGER AVAILABLE) ( SUB 8082847 ) (ALSO ORDER 4448717)

1шт.

8082847

Link

(SUB FOR TH8082847)

1шт.

26

4280298

Bushing

(SUB FOR AT251196)

2шт.

27

9752598

Rod

(SUB FOR TH9752598)

1шт.

34

4287792

Ball Joint

(SUB FOR AT251201)

1шт.

35

4287793

Ball Joint

(SUB FOR AT251202)

1шт.

36

14M7273

Nut

M8

3шт.

37

M580008

Nut

(SUB FOR AT256017)

1шт.

38

12M7056

Lock Washer

8 mm

2шт.
