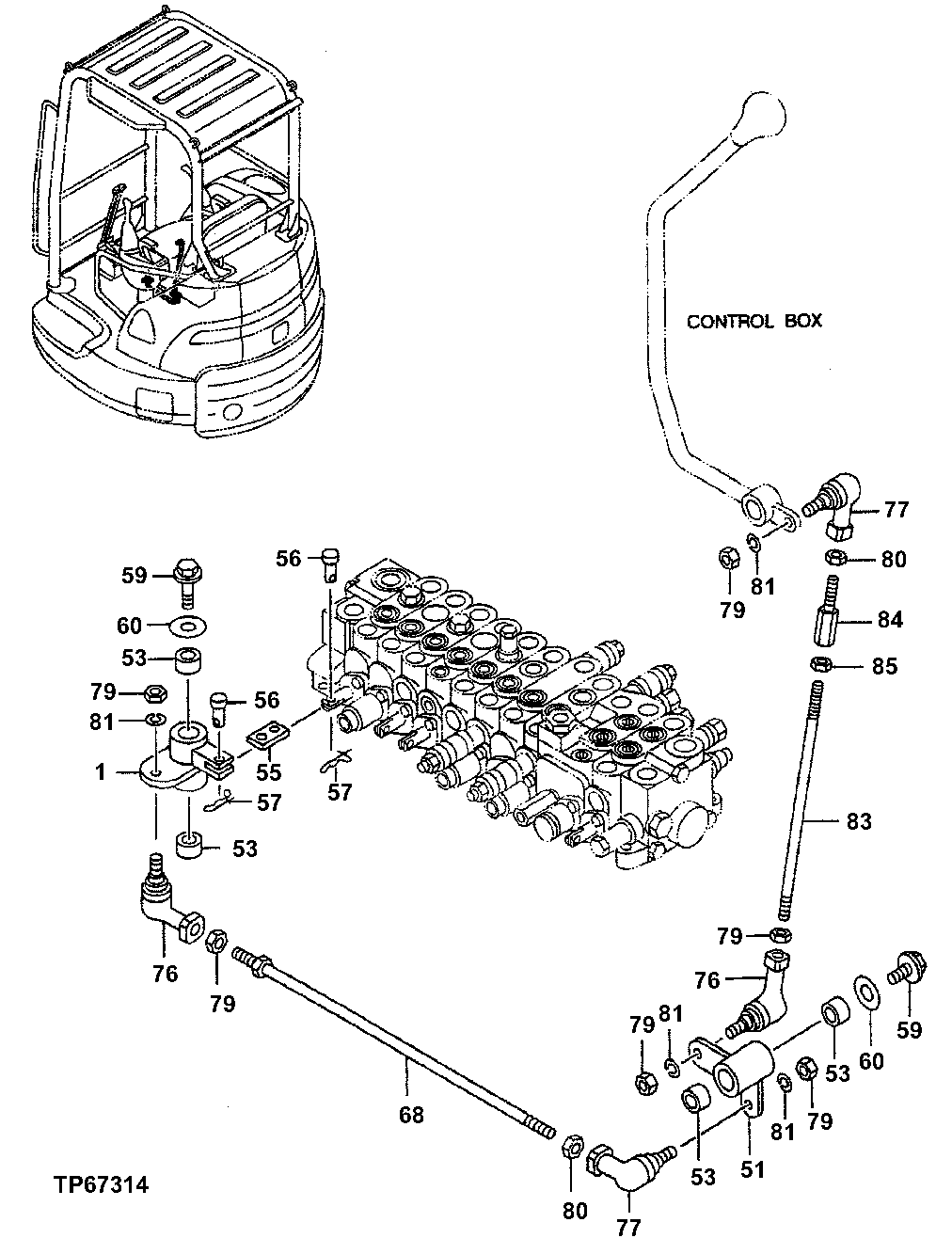

Запчасти John Deere 5ZTS 143 - LEVER LINK (BLADE) 3315 CONTROLS LINKAGE

1

9752593

Linkage

(SUB FOR TH9752593)

1шт.

51

9752594

Linkage

(SUB FOR TH9752594)

1шт.

53

4280298

Bushing

(SUB FOR AT251196)

4шт.

55

TH4333080

Link

1шт.

56

4279607

Pin Fastener

(SUB FOR AT251194)

2шт.

57

4365839

Spring Locking Pin

(SUB FOR AT251295)

2шт.

59

19M7881

Screw

M8 X 20

2шт.

12M7056

Lock Washer

8 mm

2шт.

60

4346037

Washer

(SUB FOR AT250610)

2шт.

68

9752596

Rod

(SUB FOR TH9752596)

1шт.

76

4287792

Ball Joint

(SUB FOR AT251201)

2шт.

77

4287793

Ball Joint

(SUB FOR AT251202)

2шт.

79

14M7273

Nut

M8

6шт.

80

M580008

Nut

(SUB FOR AT256017)

2шт.

81

12M7056

Lock Washer

8 mm

4шт.

83

4422895

Rod

(SUB FOR TH4422895)

1шт.

84

9753057

Turnbuckle

(SUB FOR TH9753057)

1шт.

85

14M7273

Nut

M8

1шт.
