138 - LEFT CONSOLE AND CONTROL LEVER LINKAGE

Запчасти John Deere 5ZTS 138 - LEFT CONSOLE AND CONTROL LEVER LINKAGE 3315 CONTROLS LINKAGE

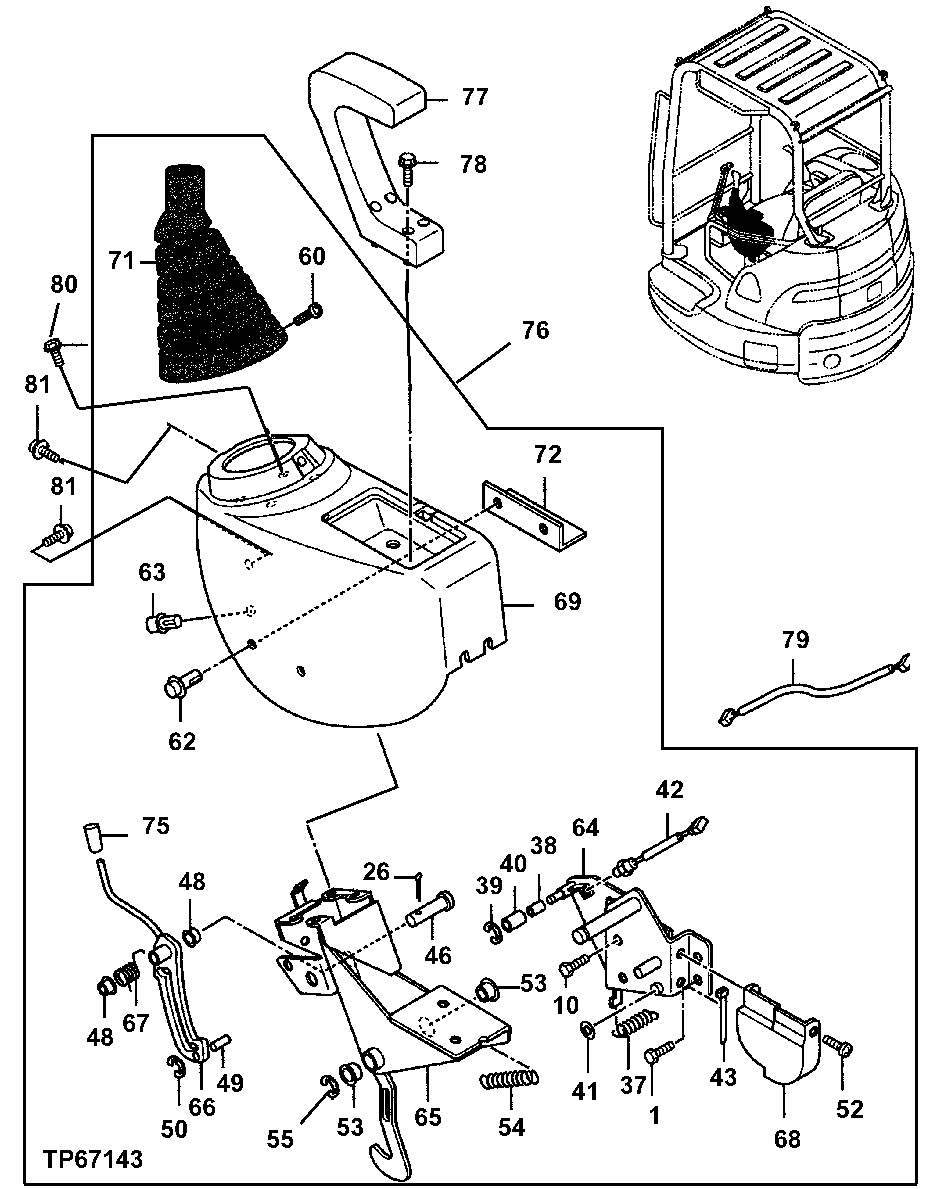

Схема запчастей John Deere 5ZTS - 138 - LEFT CONSOLE AND CONTROL LEVER LINKAGE 3315 CONTROLS LINKAGE
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

19M7881

Screw

M8 X 20

3шт.

12M7056

Lock Washer

8 mm

3шт.

10

19M7323

Cap Screw

M8 X 40

1шт.

12M7056

Lock Washer

8 mm

1шт.

26

11M7009

Cotter Pin

2 X 16 mm (SUB FOR AT258341, 43723 27, A762020, TH101639 AND 11M7008)

1шт.

37

4393841

Spring

(SUB FOR AT258361)

1шт.

38

4393842

Bushing

(SUB FOR AT258362)

1шт.

39

991334

Snap Ring

(SUB FOR 4393843, AT258363)

1шт.

40

4393844

Bushing

(SUB FOR AT258364)

1шт.

41

4393845

Washer

(SUB FOR AT258365)

1шт.

42

4355738

Switch

(SUB FOR AT251279)

1шт.

43

H77698

Tie Band

1шт.

46

4383004

Pin Fastener

(SUB FOR AT258351)

1шт.

48

4383002

Bushing

(SUB FOR AT258350)

2шт.

49

4411179

Bushing

(SUB FOR AT258391)

1шт.

50

4393850

Snap Ring

(SUB FOR AT258366)

1шт.

52

4393852

Bolt

(SUB FOR TH4393852)

2шт.

53

4382992

Bushing

(SUB FOR AT258348)

2шт.

54

4383016

Spring

(SUB FOR AT258352)

1шт.

55

4382993

Snap Ring

(SUB FOR AT258349)

1шт.

60

4382998

Clip

(SUB FOR TH4382998)

1шт.

62

4383021

Rivet

(SUB FOR AT258354)

2шт.

63

4383025

Rivet

(SUB FOR AT258355)

1шт.

64

4393855

Bracket

(SUB FOR AT258367)

1шт.

65

4393856

Frame

(SUB FOR AT258368)

1шт.

66

4439476

Lever

(SUB FOR AT258384)

1шт.

67

4393858

Torsion Spring

(SUB FOR AT258369)

1шт.

68

4393859

Cover

(SUB FOR AT258370)

1шт.

69

Cover

NOT AVAILABLE FOR SERVICE

1шт.

71

4383019

Boot

(SUB FOR AT255940)

1шт.

72

4383020

Cover

(SUB FOR AT258353)

1шт.

75

4414917

Grip

(SUB FOR AT258396)

1шт.

76

4437492

Console

(SUB FOR AT258416)

1шт.

77

4437491

Armrest

(SUB FOR AT258410)

1шт.

78

19M8329

Cap Screw

M6 X 50

2шт.

12H302

Lock Washer

1/4"

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

79

AT258385

Wiring Harness

1шт.

80

19M7932

Cap Screw

M8 X 16

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

12M7056

Lock Washer

8 mm

4шт.

81

21M7246

Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7105

Washer

6 X 12 X 1.600 mm

2шт.
