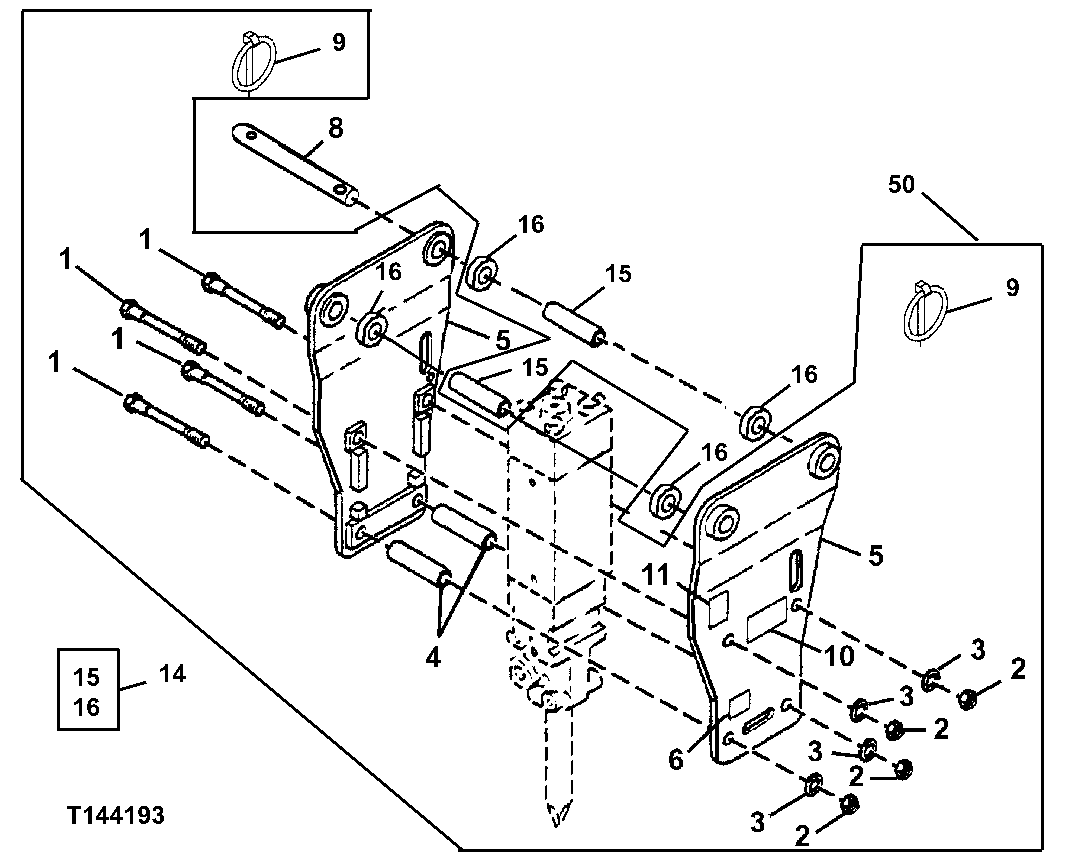

Запчасти John Deere 5ZTS 129 - Hydraulic Breaker Bracket (HB75) 3302 BUCKETS, TEETH, SHANKS AND SIDECUTTERS

1

19H3529

Cap Screw

1" X 8"

4шт.

2

14H1048

Nut

1"

4шт.

3

24M7294

Washer

26 X 39 X 4 mm

4шт.

4

KV17493

Bushing

2шт.

5

KV20304

Plate

(MATCHED SET)

2шт.

6

ES10894

Label

(FLYING DEBRIS)

2шт.

8

T185390

Pin

2шт.

9

AH89461

Pin Fastener

4шт.

10

KV22129

Label

(SUB FOR KV16408)(WORKSITE PRO)

2шт.

11

N279497

Label

(WARNING, ACCUMULATOR)

2шт.

14

AT190489

Pin & Bushing Kit

(WHOLEGOODS)

1шт.

16

T185391

Bushing

4шт.

50

Field Installation Kit

(WHOLEGOODS) ( AT280191 NO LONGER AVAIL ABLE) (HB75 HYDRAULIC BREAKER) (ALSO ORD ER AT190489 PIN AND BUSHING KIT) (ADDITI ONAL COMPONENTS LISTED ON SEPARATE PAGE)

1шт.
