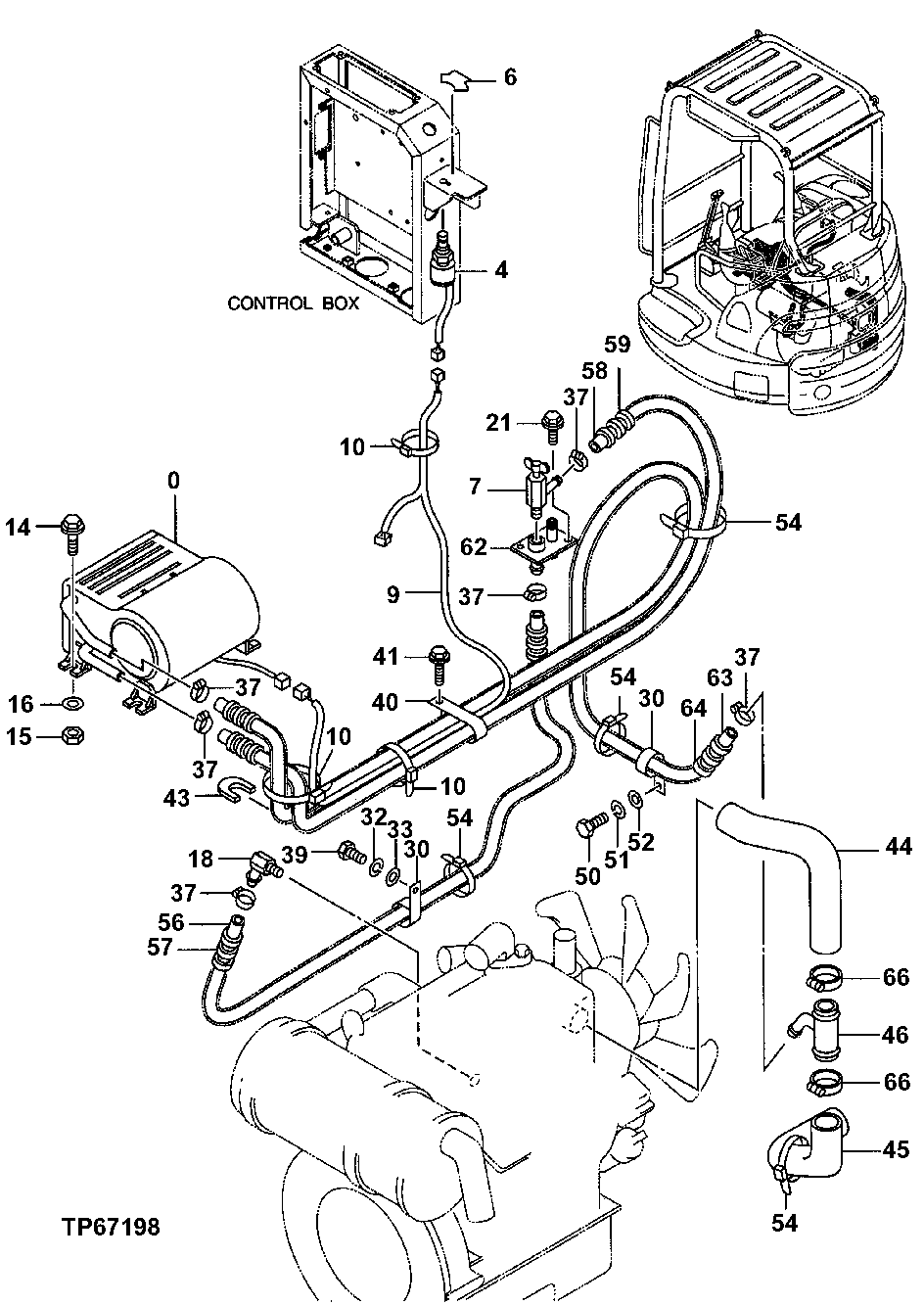

Запчасти John Deere 5ZTS 82 - HEATER 1830 HEATING AND AIR CONDITIONING

0

4464959

Heater

(SUB FOR AT251207, TH4464959)

1шт.

4

4294504

Temperature Switch

(SUB FOR AT251214)

1шт.

6

4343720

Label

(SUB FOR AT251241)

1шт.

7

4508050

Drain Valve

(SUB FOR TH106168)

1шт.

9

4420022

Wiring Harness

(SUB FOR AT251522)

1шт.

10

H77698

Tie Band

3шт.

14

19M7402

Cap Screw

M10 X 25

4шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

4шт.

12M7066

Lock Washer

10 mm

4шт.

15

14M7274

Nut

M10

4шт.

16

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR 12M7096)

4шт.

18

9752876

Elbow Fitting

(SUB FOR TH9752876)

1шт.

21

19M7881

Screw

M8 X 20

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

12M7056

Lock Washer

8 mm

1шт.

30

XCL-19

Hose Clamp

(SUB FOR TH108459 OR 4192035)

2шт.

32

12M7066

Lock Washer

10 mm

1шт.

33

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR 12M7096)

1шт.

37

WZ2141223

Hose Clamp

(SUB FOR AA34965)

6шт.

39

19M7938

Cap Screw

M10 X 20

1шт.

40

R50454

Clamp

(SUB FOR 4295017, AT251218 OR 4411911)

1шт.

41

19M7881

Screw

M8 X 20

1шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

1шт.

12M7056

Lock Washer

8 mm

1шт.

43

4423957

Isolator

(SUB FOR TH4423957)

1шт.

44

3087947

Radiator Hose

(SUB FOR TH3087947)

1шт.

45

3087948

Radiator Hose

(SUB FOR TH3087948)

1шт.

46

8078418

Fitting

(SUB FOR TH8078418)

1шт.

50

19M7881

Screw

M8 X 20 (SUB FOR J960820)

1шт.

51

12M7056

Lock Washer

8 mm

1шт.

52

12M7036

Lock Plate

1шт.

54

H77698

Tie Band

4шт.

56

4431213

Radiator Hose

(SUB FOR TH4431213)

1шт.

57

4431214

Elec. Connector Accessory

(SUB FOR TH4431214)

1шт.

58

Hose

( 4412685 NO LONGER AVAIL ABLE) (SUB FOR TH4412685)

1шт.

4470603

Hose

1шт.

59

4475423

Sleeve

(SUB FOR TH4412686)(CTL 1054MM)

1шт.

62

8077058

Adapter Fitting

(SUB FOR TH8077058)

1шт.

63

Bulk Hose

(SUB FOR TH4432359)( 4432359 NO LONGER AVAILABLE FOR SERVICE) (FURNISH TY2232 6 BULK MATERIAL CUT TO 1100 MM LENGTH)

1шт.

64

4475423

Sleeve

(SUB FOR TH4432360)(CTL 1054MM)

1шт.

66

TY22470

Clamp

(SUB FOR AR65293)

2шт.
