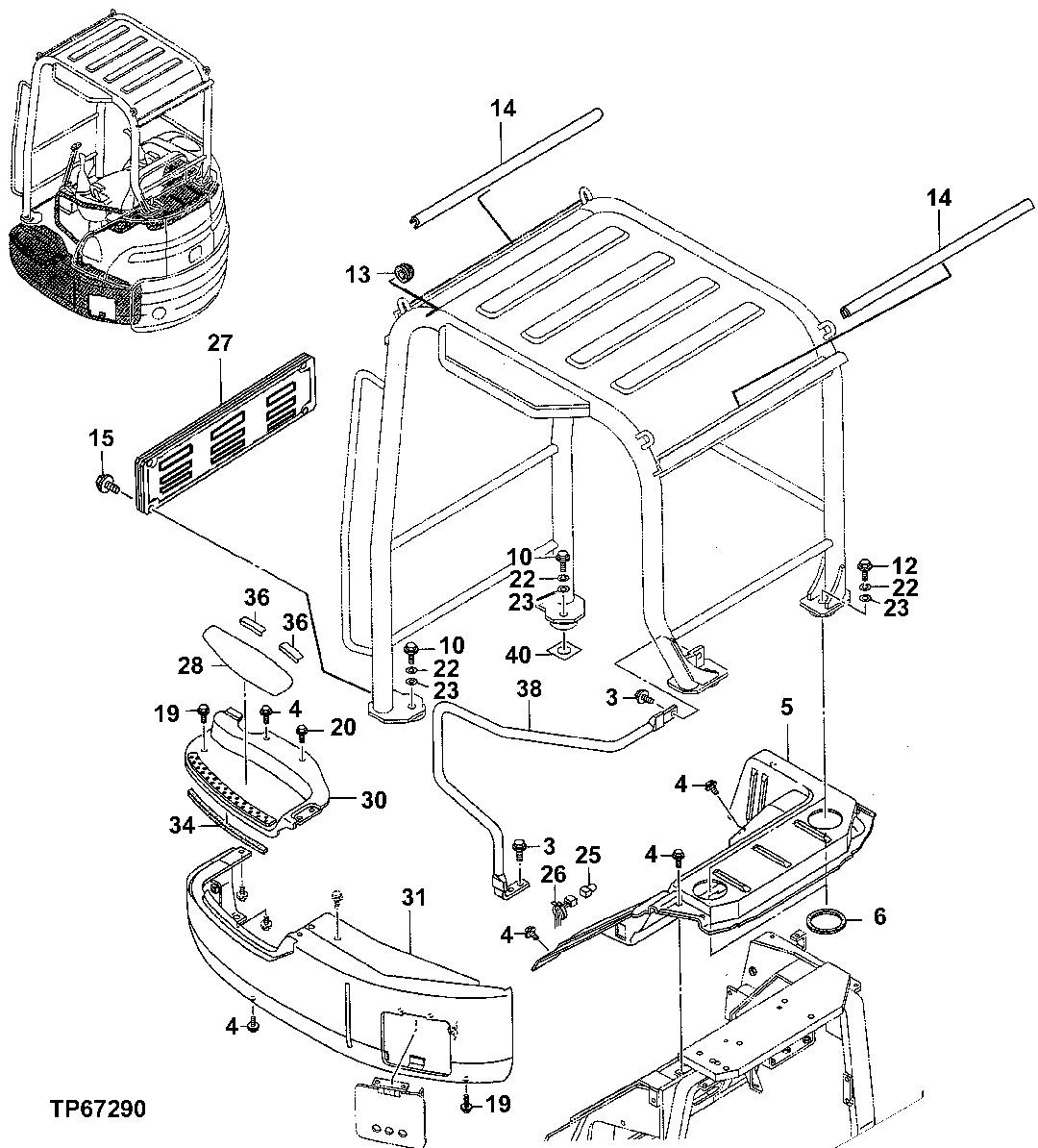

Запчасти John Deere 5ZTS 77 - TOPS FRAME, MOUNTING PARTS AND REAR COVER 1810 OPERATOR ENCLOSURE

0

6018641

Canopy

(SUB FOR AT258436)

1шт.

3

19M7662

Cap Screw

M10 X 30

3шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

3шт.

12M7066

Lock Washer

10 mm

3шт.

4

19M7881

Screw

M8 X 20

10шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

10шт.

12M7056

Lock Washer

8 mm

10шт.

5

4615662

Cover

(SUB FOR 4428511, TH4428511)

1шт.

6

4416050

Seal

(SUB FOR AT258397)

2шт.

10

19M7135

Cap Screw

M16 X 70

2шт.

12

19M8295

Cap Screw

M16 X 55

2шт.

13

4207699

Bushing

(SUB FOR AT121399)

1шт.

14

4427072

Seal

(SUB FOR AT258415)

2шт.

15

19M7407

Cap Screw

M8 X 25

4шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

4шт.

12M7056

Lock Washer

8 mm

4шт.

19

19M8008

Cap Screw

M8 X 35

2шт.

24M7055

Washer

8.400 X 16 X 1.600 mm

2шт.

12M7056

Lock Washer

8 mm

2шт.

20

19M7932

Cap Screw

M8 X 16

2шт.

12M7056

Lock Washer

8 mm

2шт.

22

12M7069

Lock Washer

16 mm

4шт.

23

24M7053

Washer

17 X 30 X 3 mm (SUB FOR THJ 253116, J253116 OR A590116)

4шт.

25

4392691

Wiring Harness

(SUB FOR TH4392691)

1шт.

26

H77698

Tie Band

2шт.

27

3089894

Guard

(SUB FOR TH3089894)

1шт.

28

H21259

Mat

(ANTI-SKID) (TRIM TO FIT)

1шт.

30

7038522

Cover

(SUB FOR TH7038522)

1шт.

31

6019164

Cover

(SUB FOR TH6019164)

1шт.

34

4429104

Isolator

(SUB FOR TH4429104)

1шт.

36

4430638

Label

(SUB FOR TH4430638)

2шт.

38

Handrail

( TH7038420 AND 7038420 NLA)

1шт.

40

4427494

Washer

(SUB FOR TH4427494)

1шт.
