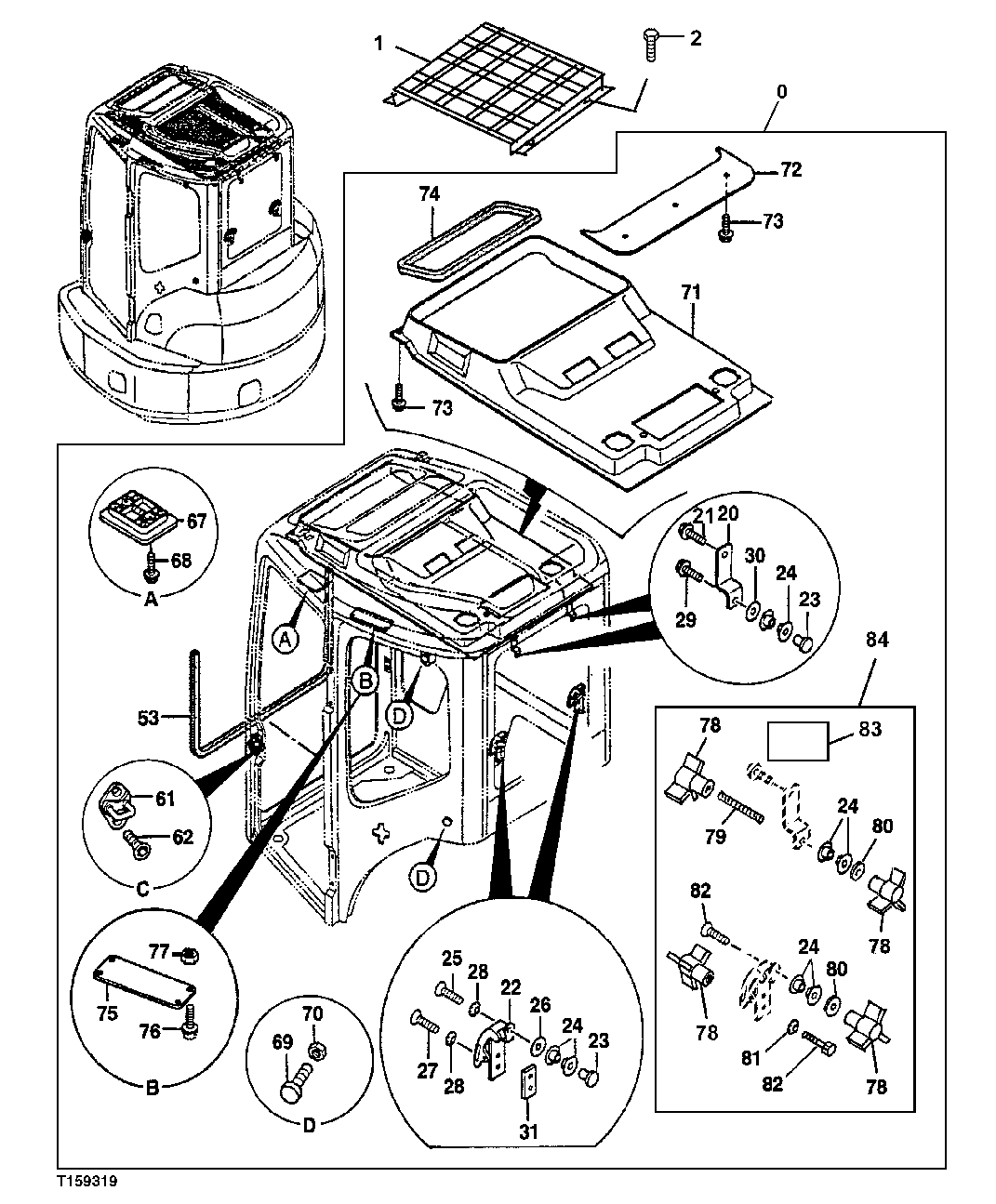

Запчасти John Deere 5ZTS 70 - CAB COMPONENTS 1810 OPERATOR ENCLOSURE
№
Артикул
Название
Примечание
Количество
0
9203820
Cab
(SUB FOR 4454007) Contains All Itmes o n This Page With the Exception of Cab T op Guard and Attaching Hardware Additio nal Components Listed On Separate Pages
1шт.
1
7038840
Guard
(SUB FOR TH7038840) Not Comp onent of Cab Order Separately
1шт.
2
19M7932
Cap Screw
M8 X 16
4шт.
24M7055
Washer
8.400 X 16 X 1.600 mm
4шт.
12M7056
Lock Washer
8 mm
4шт.
20
4424675
Leaf Spring
(SUB FOR AT252082)
2шт.
21
M140225
Bolt
M6 X 14
2шт.
22
4347060
Handle
(SUB FOR AT252062)
2шт.
23
4424676
Retainer
(SUB FOR AT252083)
4шт.
24
4347062
Bumper
(SUB FOR AT252063)
8шт.
25
4424750
Cap Screw
(SUB FOR AT252131)
2шт.
26
12M7080
Lock Washer
6.400 mm (SUB FOR AT252132 OR 4424751)
2шт.
27
4380958
Bolt
(SUB FOR TH4380958)
4шт.
28
T205218
Washer
(SUB FOR TH111908, 4107762)
8шт.
29
4424753
Cap Screw
(SUB FOR AT252133)
2шт.
30
4424754
Washer
(SUB FOR AT252134)
2шт.
31
4424677
Plate
(SUB FOR AT252084)
2шт.
53
4424692
Weatherstrip
(SUB FOR AT252098)
1шт.
61
4347035
Striker
(SUB FOR AT252059)
1шт.
62
4424759
Cap Screw
(SUB FOR AT252138)
2шт.
67
4424703
Lamp
(SUB FOR AT252106)
1шт.
68
4424760
Bolt
(SUB FOR TH4424760)
2шт.
69
4347063
Stop
(SUB FOR AT252064)
2шт.
70
14M7274
Nut
M10
2шт.
71
4424722
Cover
(SUB FOR AT252117)
1шт.
72
4425835
Cover
(SUB FOR AT252157)
1шт.
73
4424723
Rivet
(SUB FOR AT252118)
6шт.
74
4424721
Weatherstrip
(SUB FOR AT252116)
1шт.
75
4424707
Plate
(SUB FOR AT252108)
1шт.
76
19M8425
Cap Screw
M6 X 16 (SUB FOR TH4380957, 43809 57, J090616, J020616 OR TH111223)
4шт.
12M7006
Lock Washer
6 mm
4шт.
24M7054
Washer
6.400 X 12 X 1.600 mm
4шт.
78
T184750
Knob
8шт.
79
M87155
Rod
2шт.
80
24H1822
Washer
11/32" X 7/8" X 1/16"
4шт.
81
12M7080
Lock Washer
6.400 mm (SUB FOR AT252132 OR 4424751)
2шт.
82
19H3512
Cap Screw
1/4" X 1-1/4"
4шт.
83
T167256
Label
1шт.
84
AT190956
Kit
Rear Secondary Exit Window Kit
1шт.
Выбрано товаров: 40
