Запчасти John Deere 5ZTS 69 - CAB COMPONENTS 1810 OPERATOR ENCLOSURE

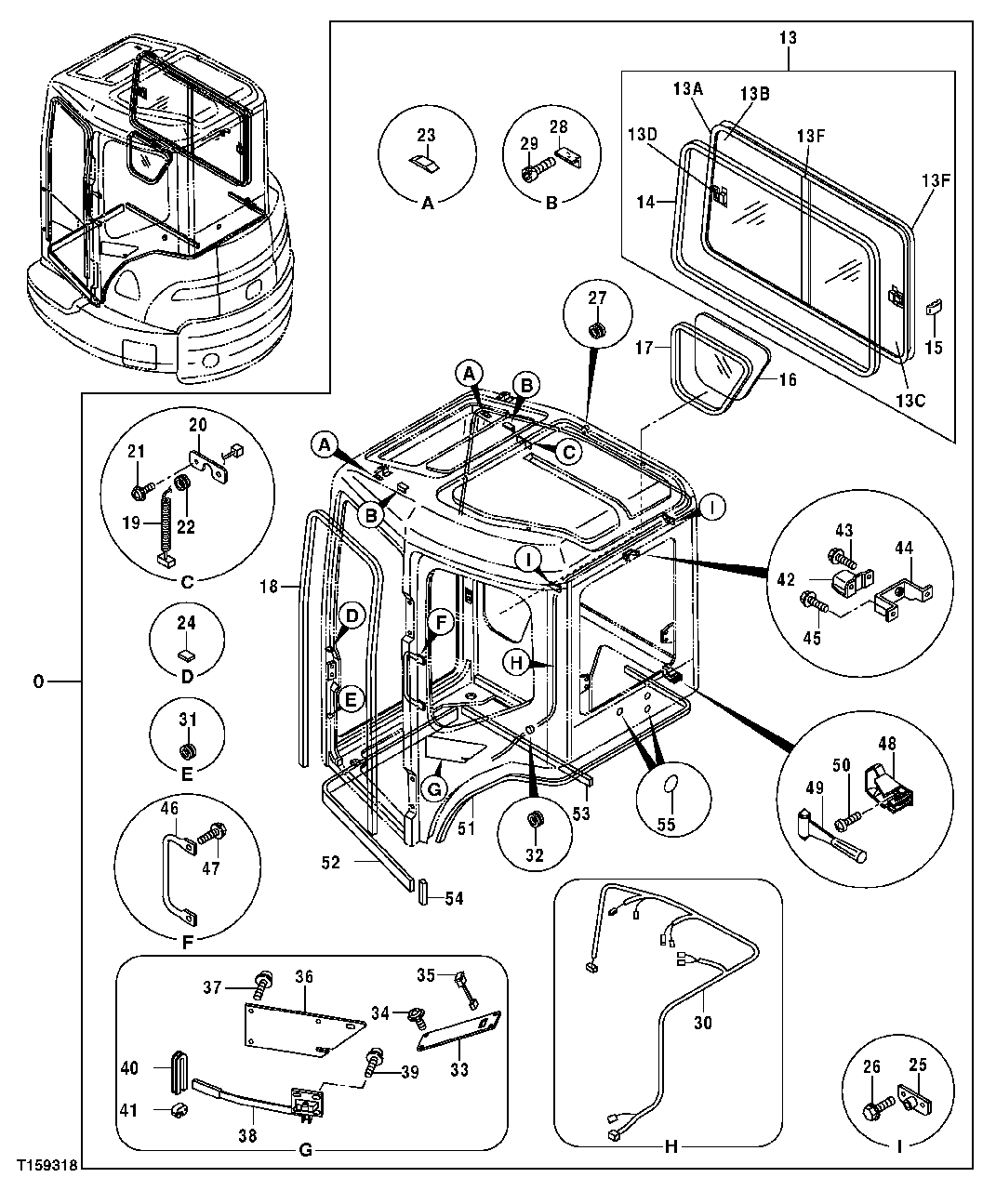

Схема запчастей John Deere 5ZTS - 69 - CAB COMPONENTS 1810 OPERATOR ENCLOSURE

Артикул

Название

Примечание

Количество

0

9203820

Cab

(SUB FOR 4454007) Contains All Items On This Page Additional Co mponents Listed On Separate Page s

1шт.

13

Window

4425822 AND AT252146 NLA Furnish Components

1шт.

13A

4448354

Frame

1шт.

13B

4448355

Windowpane

1шт.

13C

4448356

Windowpane

1шт.

13D

4369653

Lock

(SUB FOR 4448357 AND 4295610)

3шт.

13E

4448358

Seal

Felt Pad in Frame Channel

1шт.

13F

4448359

Mounting Parts

Vertical Seal Between Windows

1шт.

14

4425823

Weatherstrip

(SUB FOR AT252147)

1шт.

15

4425824

Isolator

(SUB FOR AT252148)

10шт.

16

4425825

Windowpane

(SUB FOR AT252149)

1шт.

17

4425826

Weatherstrip

(SUB FOR AT252150)

1шт.

18

4424680

Weatherstrip

(SUB FOR AT252087)

1шт.

19

4424694

Wiper Motor Wiring Harness

(SUB FOR AT252100)

1шт.

20

4424695

Plate

(SUB FOR AT252101)

1шт.

21

19M8425

Cap Screw

M6 X 16 (SUB FOR TH4380957, 43809 57, J090616, J020616 OR TH111223)

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

22

4380977

Grommet

(SUB FOR AT252072)

2шт.

23

4424696

Isolator

(SUB FOR AT252102)

2шт.

24

4424697

Isolator

(SUB FOR AT252103)

2шт.

25

4424741

Stop

(SUB FOR AT252127)

2шт.

26

19M9045

Bolt

(SUB FOR TH4380970 OR 4380970)

4шт.

27

4425829

Plug

(SUB FOR AT252153)

1шт.

28

4424704

Plate

(SUB FOR AT252107)

2шт.

29

19M7768

Screw

M6 X 16

4шт.

30

4425830

Wiring Harness

(SUB FOR AT252154)

1шт.

31

4380977

Grommet

(SUB FOR AT252072)

1шт.

32

4347039

Grommet

(SUB FOR AT252060)

1шт.

33

4424742

Cover

(SUB FOR AT252128)

1шт.

34

19M8425

Cap Screw

M6 X 16 (SUB FOR TH4380957, 43809 57, J090616, J020616 OR TH111223)

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

35

4424743

Switch

WIPER MOTOR (SUB FOR AT252129)

1шт.

36

4425834

Cover

(SUB FOR AT252156)

1шт.

37

19M8425

Cap Screw

M6 X 16 (SUB FOR TH4380957, 43809 57, J090616, J020616 OR TH111223)

5шт.

12M7006

Lock Washer

6 mm

5шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

5шт.

38

4424714

Latch

(SUB FOR AT252110)

1шт.

39

19M8163

Bolt

M8 X 16

4шт.

40

4424715

Grommet

(SUB FOR AT252111)

1шт.

41

4424716

Stop

(SUB FOR AT252112)

1шт.

42

4424717

Latch

(SUB FOR AT252113)

1шт.

43

19M8163

Bolt

M8 X 16

2шт.

44

4424718

Bracket

(SUB FOR AT252114)

1шт.

45

19M8163

Bolt

M8 X 16

2шт.

46

4380982

Handrail

(SUB FOR AT252073)

1шт.

47

CC22170

Screw

2шт.

48

2038764

Bracket

(SUB FOR T158021)

1шт.

49

4362700

Hammer

(SUB FOR T158020)

1шт.

50

4424771

Cap Screw

(SUB FOR TH4424771)

2шт.

51

4425836

Isolator

(SUB FOR AT252158)

1шт.

52

4425837

Isolator

(SUB FOR AT252159)

1шт.

53

4425838

Isolator

(SUB FOR AT252160)

1шт.

54

4425839

Isolator

(SUB FOR AT252161)

1шт.

55

4425840

Plug

(SUB FOR AT252162)

3шт.

Выбрано товаров: 56
