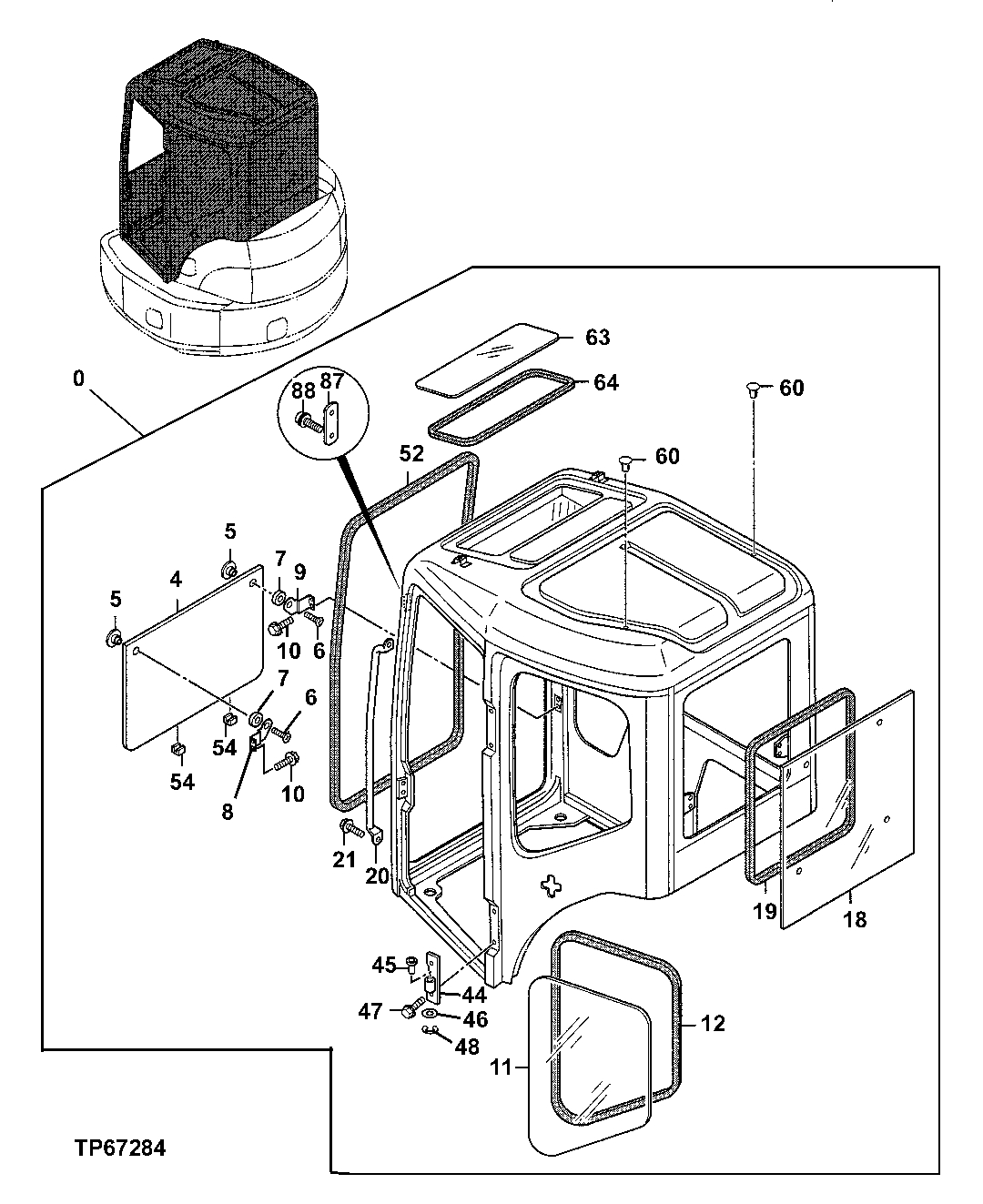

Запчасти John Deere 5ZTS 68 - CAB COMPONENTS 1810 OPERATOR ENCLOSURE

0

9203820

Cab

(SUB FOR 4454007)(CONTAINS ALL IT EMS ON THIS PAGE - ADDITIONAL COMP ONENTS LISTED ON FOLLOWING PAGES)

1шт.

4

4424665

Windowpane

(SUB FOR AT252078)

1шт.

5

4424666

Nut

(SUB FOR TH4424666)

2шт.

6

4424749

Bolt

(SUB FOR TH4424749)

2шт.

7

4424667

Isolator

(SUB FOR AT252079)

2шт.

8

4425819

Plate

(SUB FOR AT252144)

1шт.

9

4425820

Plate

(SUB FOR AT252145)

1шт.

10

19M9007

Screw

M6 X 12

4шт.

11

4424669

Windowpane

(SUB FOR AT252080)

1шт.

12

4424670

Weatherstrip

(SUB FOR AT252081)

1шт.

18

4425841

Windowpane

(SUB FOR AT252163)

1шт.

19

4425842

Weatherstrip

(SUB FOR AT252164)

1шт.

20

4432623

Handrail

(SUB FOR AT258428)

1шт.

21

CC22170

Screw

2шт.

44

4424735

Bracket

(SUB FOR AT252125)

2шт.

45

4424736

Bushing

(SUB FOR AT252126)

2шт.

46

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

47

CC22170

Screw

4шт.

48

4424769

Snap Ring

(SUB FOR AT252142)

2шт.

52

4424691

Weatherstrip

(SUB FOR AT252097)

1шт.

54

4424693

Stop

(SUB FOR AT252099)

2шт.

60

4424728

Plug

(SUB FOR AT252119)

2шт.

63

4425827

Windowpane

(SUB FOR AT252151)

1шт.

64

4425828

Weatherstrip

(SUB FOR AT252152)

1шт.

87

4424711

Plate

(SUB FOR AT252109)

1шт.

88

19M8425

Cap Screw

M6 X 16 (SUB FOR TH4380957, 43809 57, J090616, J020616 OR TH111223)

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.
