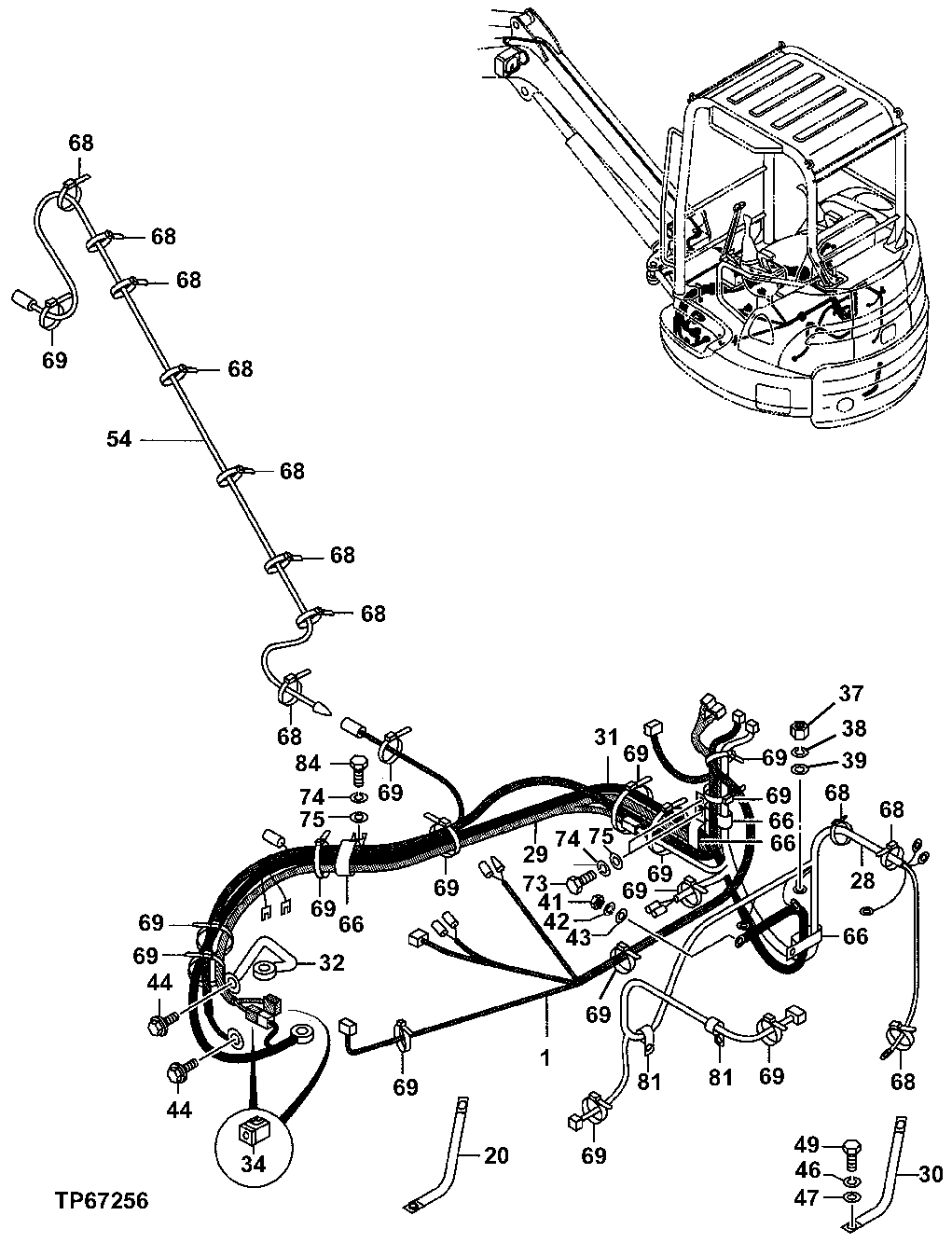

Запчасти John Deere 5ZTS 61 - WIRE HARNESS 1674 WIRING HARNESS AND SWITCHES

1

3085055

Wiring Harness

(SUB FOR TH3085055)(SEE DTAC SOLUT ION FOR REPAIR KIT AND CONNECTORS)

1шт.

20

4443250

Wiring Harness

(SUB FOR TH4443250)(WINDOW WASHER TANK BRACKET TO MAIN FRAME SIDE)

1шт.

28

3085056

Wiring Harness

(SUB FOR TH3085056)(ENGINE)

1шт.

29

3085057

Wiring Harness

(SUB FOR TH3085057)(BATTERY)

1шт.

30

4372789

Ground Cable

(SUB FOR AT251308)

1шт.

31

4417777

Cable

(SUB FOR TH4417777)

1шт.

32

4417776

Cable

(SUB FOR TH4417776)

1шт.

34

4331898

Fuse

(SUB FOR AT251232)(FUSIBLE LINK)

2шт.

37

14M7272

Nut

M6

1шт.

38

12M7006

Lock Washer

6 mm

1шт.

39

12M7054

Lock Washer

19 mm

1шт.

41

14M7273

Nut

M8

1шт.

42

12M7056

Lock Washer

8 mm

1шт.

43

12M7036

Lock Plate

1шт.

44

19M7402

Cap Screw

M10 X 25

2шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

2шт.

12M7066

Lock Washer

10 mm

2шт.

46

12M7066

Lock Washer

10 mm

1шт.

47

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR 12M7096)

1шт.

49

19M7938

Cap Screw

M10 X 20

2шт.

54

4343506

Wiring Harness

(SUB FOR TH4343506)(BOOM LIGHT)

1шт.

66

T32854

Clamp

4шт.

68

R44302

Band

(SUB FOR TH4326365)

11шт.

69

H77698

Tie Band

14шт.

73

19M8324

Cap Screw

M10 X 16

2шт.

74

12M7066

Lock Washer

10 mm

3шт.

75

24M7028

Washer

10.500 X 20 X 2 mm (SUB FOR 12M7096)

3шт.

81

4190275

Clamp

(SUB FOR TH108598)

2шт.

84

19M7938

Cap Screw

M10 X 20

1шт.
