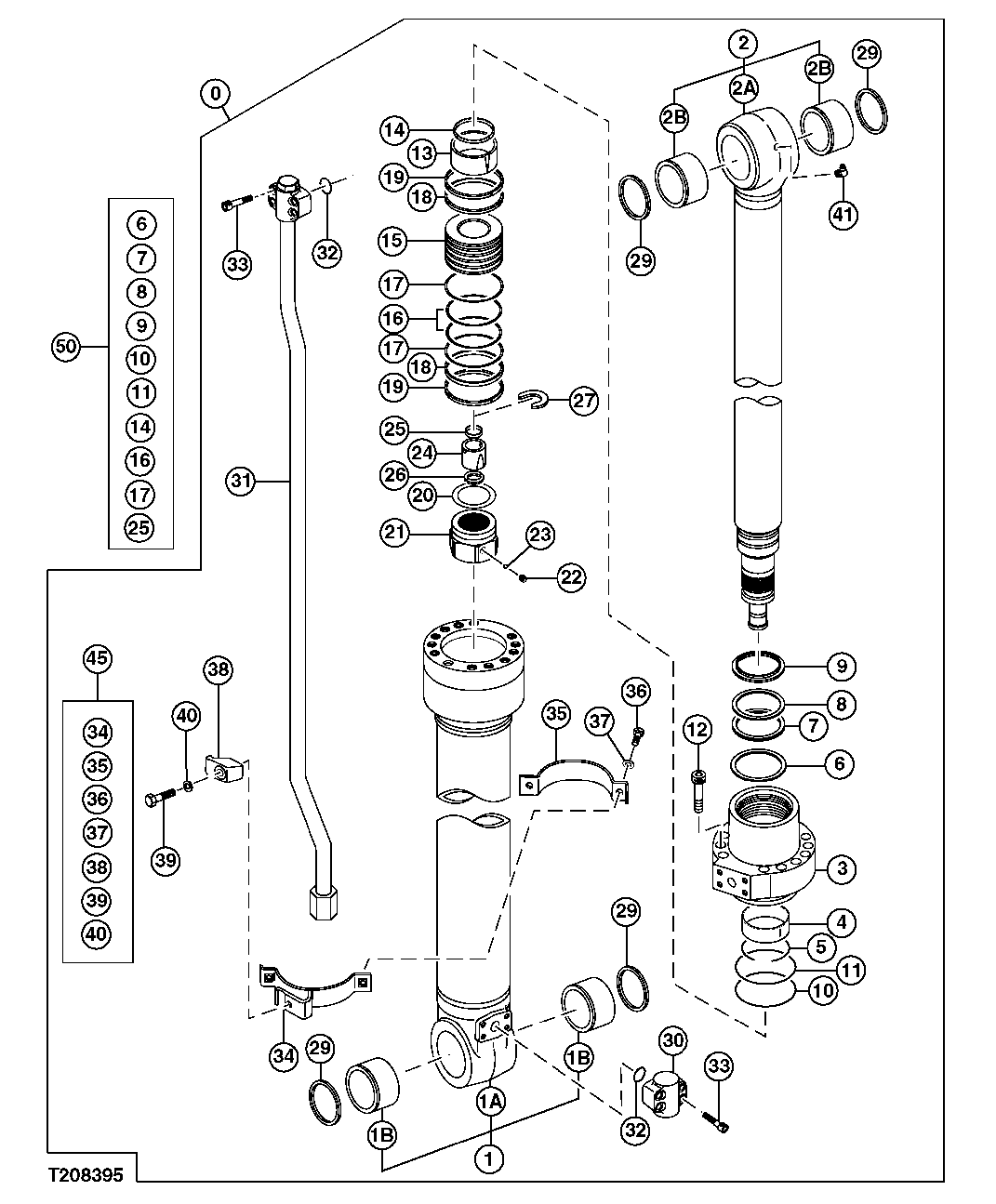

Запчасти John Deere 35D 259 - ARM CYLINDER 3365 HYDRAULIC CYLINDERS

0

9169805

Cylinder

SUB FOR 4385638 For Non NA Applications

1шт.

9169805Y

Cylinder

REMAN For NA Applications

1шт.

1

0876301

Tube

SUB FOR 0789101

1шт.

Hyd Cylinder Barrel Reman

PG201488 NLA

1шт.

1A

Tube

0789102 NLA

1шт.

1B

4352399

Bushing

2шт.

2

0789103

Rod

1шт.

2A

Rod

0789104 NLA

1шт.

2B

4352399

Bushing

2шт.

3

H178686

Hydr. Cylinder Rod Guide

SUB FOR 0789105

1шт.

4

T108050

Wear Ring

SUB FOR 0309204

1шт.

5

TH102766

Snap Ring

SUB FOR 0236905

1шт.

6

H227909

Seal

SUB FOR 0789106, 0789118 OR 0976005

1шт.

7

H227910

Seal

SUB FOR 0667404 OR H155308

1шт.

8

H155310

Back-Up Ring

SUB FOR 0667405

1шт.

9

H155311

Seal

SUB FOR 0667406

1шт.

10

AT264224

O-Ring

SUB FOR A811130

1шт.

11

H178691

Back-Up Ring

SUB FOR 0789107

1шт.

12

19M8913

Screw

M18 X 80 SUB FOR 0219305

12шт.

13

H155319

Ring

SUB FOR 0409908

1шт.

14

H155320

Seal

SUB FOR 0667407

1шт.

15

0789108

Piston

1шт.

16

AH173446

Ring

SUB FOR 0309210, 4S00186 OR T108057

1шт.

17

H178694

Back-Up Ring

SUB FOR 0789109

2шт.

18

H227905

Ring

SUB FOR 0789110

2шт.

19

H178696

Back-Up Ring

SUB FOR 0309212, T108059 OR AT309611

2шт.

20

T108063

Shim

SUB FOR 0309216

1шт.

21

0789111

Nut

1шт.

22

22M6684

Set Screw

M12 X 12 SUB FOR 0309011

1шт.

23

T13624

Ball

SUB FOR 0111707

1шт.

24

H155321

Spacer

SUB FOR 0409913

1шт.

25

H155322

Seal

SUB FOR 0667411

1шт.

26

H155329

Ring

SUB FOR (2) 0409915

2шт.

27

H155330

Piston Ring

SUB FOR 0409916

1шт.

29

TH102446

Seal

SUB FOR (4) 4067902

4шт.

30

Support

0387307 NLA

1шт.

H155333

Shoulder Fitting

1шт.

A853188

Adapter Fitting

2шт.

31

0789117

Line

SUB FOR 0789112; ALSO ORDER (4) 19M8448

1шт.

32

AT264348

O-Ring

SUB FOR 984614

2шт.

33

M800636

Screw

M12 X 55 SUB FOR (4) 03 09020; USE WITH 0789112

8шт.

19M8448

Screw

M12 X 35 USE WITH 0789117

4шт.

34

0789114

Band

1шт.

35

0789115

Band

1шт.

36

19M7550

Cap Screw

M10 X 35 SUB FOR 0408815

2шт.

37

12M7066

Lock Washer

10 mm SUB FOR 0325913

2шт.

38

0309219J

Half Clamp

SUB FOR 0309219

1шт.

39

19M8348

Cap Screw

M12 X 65 SUB FOR 0224115

1шт.

40

12M7067

Lock Washer

12 mm SUB FOR 0208516

1шт.

41

JD7781

Lubrication Fitting

SUB FOR 0159411

1шт.

45

0876205

Band Kit

Band SUB FOR 0789113

1шт.

50

AH225135

Hydraulic Cylinder Kit

SUB FOR 4448399 AND 4661594

1шт.
