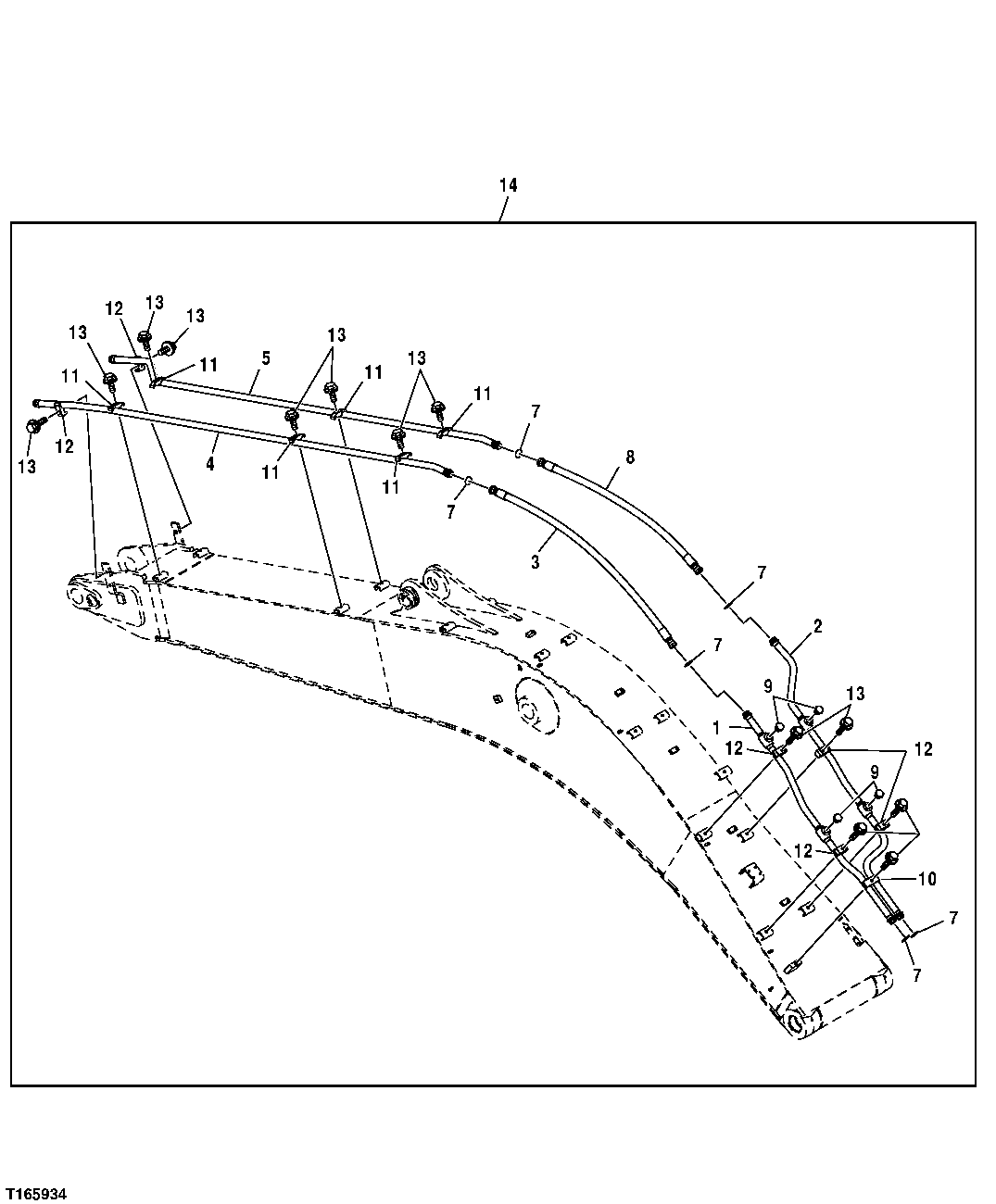

Запчасти John Deere 35D 253 - BOOM AUXILIARY LINES 3363 LINES, HOSES, AND FITTINGS

1

AT302763

Oil Line

1шт.

2

AT302764

Oil Line

1шт.

3

AT302748

Hydraulic Hose

Fabricate

1шт.

4

DH800081J

Oil Line

SUB FOR 8082052J

1шт.

5

DH800082J

Oil Line

SUB FOR 8082053J

1шт.

7

T76938

O-Ring

6шт.

8

AT302749

Hydraulic Hose

Fabricate

1шт.

9

A885008

Pipe Plug

SUB FOR 4113926

4шт.

11

4153488

Clamp

6шт.

12

4190127

Clamp

6шт.

13

19M7753

Cap Screw

M12 X 70

2шт.

14

Field Installation Kit

Auxiliary Line Kit Includes Base AuxiliaryLine Kit and Boom and A rm Auxiliary Lines AT302701 NLA

1шт.
