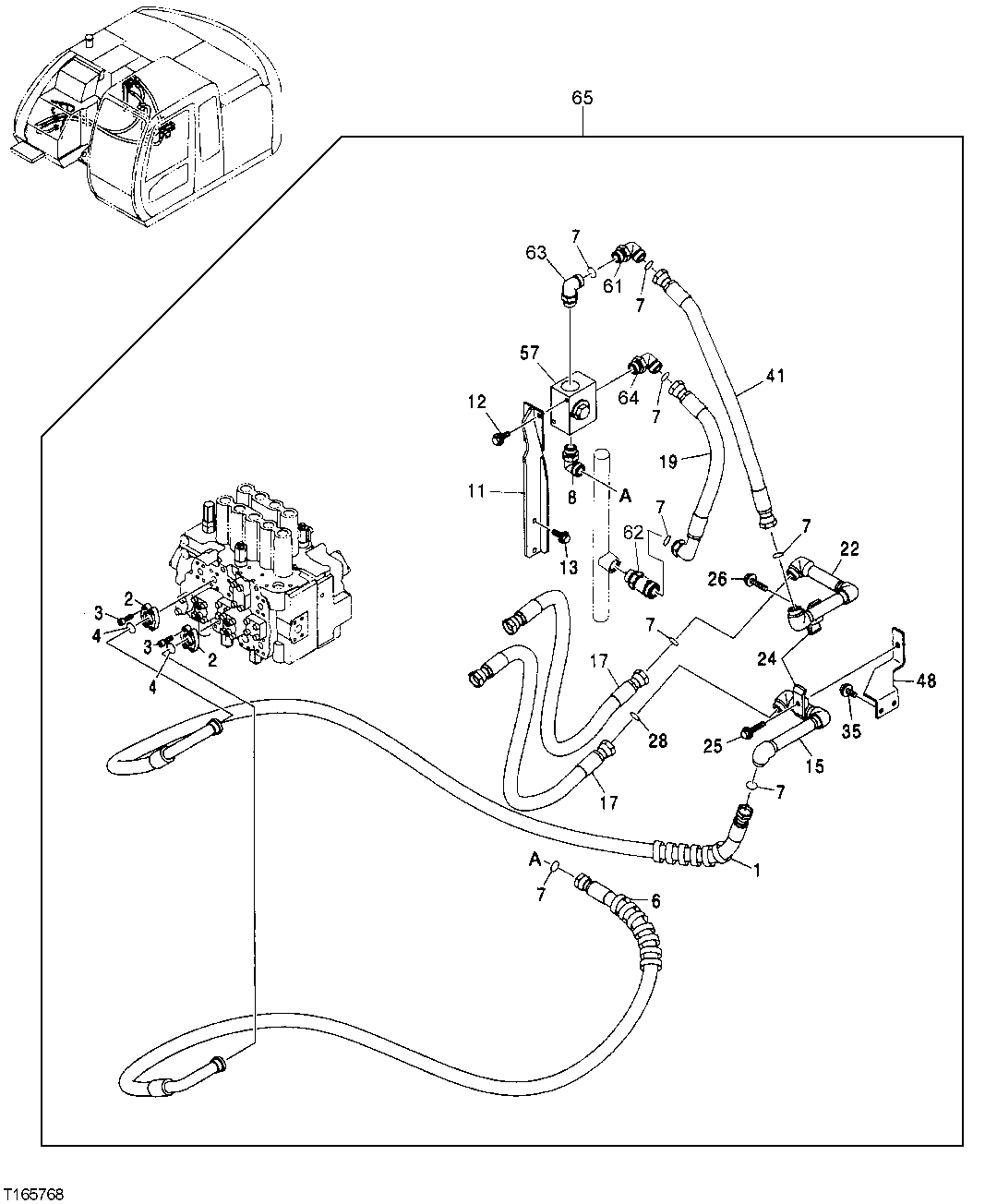

Запчасти John Deere 35D 252 - AUXILIARY HYDRAULIC KITS 3363 LINES, HOSES, AND FITTINGS

1

4451142

Hydraulic Hose

1шт.

2

H61354

Flange Fitting

4шт.

3

19M7576

Screw

M10 X 30 (SUB FOR J781030)

8шт.

4

966993

O-Ring

Z966993

2шт.

6

4451141

Hydraulic Hose

1шт.

7

T76938

O-Ring

8шт.

8

4450867

Elbow Fitting

1шт.

11

8083334

Bracket

1шт.

12

19M8011

Cap Screw

M12 X 30 ( 9203441 NLA)

2шт.

12H301

Lock Washer

1/2"

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

13

19M7403

Cap Screw

M12 X 35 ( 9203440 NLA)

2шт.

12H301

Lock Washer

1/2"

2шт.

24M7047

Washer

13 X 24 X 2.500 mm

2шт.

15

9756289

Oil Line

1шт.

17

4455501

Hydraulic Hose

Fabricate

2шт.

19

4306725

Hydraulic Hose

Fabricate

1шт.

22

9755224

Oil Line

1шт.

24

4189860

Clamp

2шт.

25

19M8088

Cap Screw

M12 X 75

1шт.

12H301

Lock Washer

1/2"

1шт.

26

19M7753

Cap Screw

M12 X 70

1шт.

12H301

Lock Washer

1/2"

1шт.

35

19M7872

Cap Screw

M12 X 25

2шт.

12H301

Lock Washer

1/2"

2шт.

41

4602103

Hose

1шт.

48

8083286

Bracket

1шт.

57

4455599

Valve

1шт.

61

9756290

Oil Line

1шт.

62

A853188

Adapter Fitting

1шт.

63

A853380

Elbow Fitting

1шт.

63A

T78612

O-Ring

1шт.

64

A853388

Elbow Fitting

1шт.

65

Kit

( 9198928 NLA) Base Auxiliary Line Kit

1шт.

66

4309832

Valve

Not Illustrated

1шт.

U12547U

O-Ring

Not Illustrated

1шт.

67

Field Installation Kit

Complete Auxiliary Line Kit Includ es Base Auxiliary Kit and Boom and Arm Auxiliary Lines ( AT302701 NLA )

1шт.
