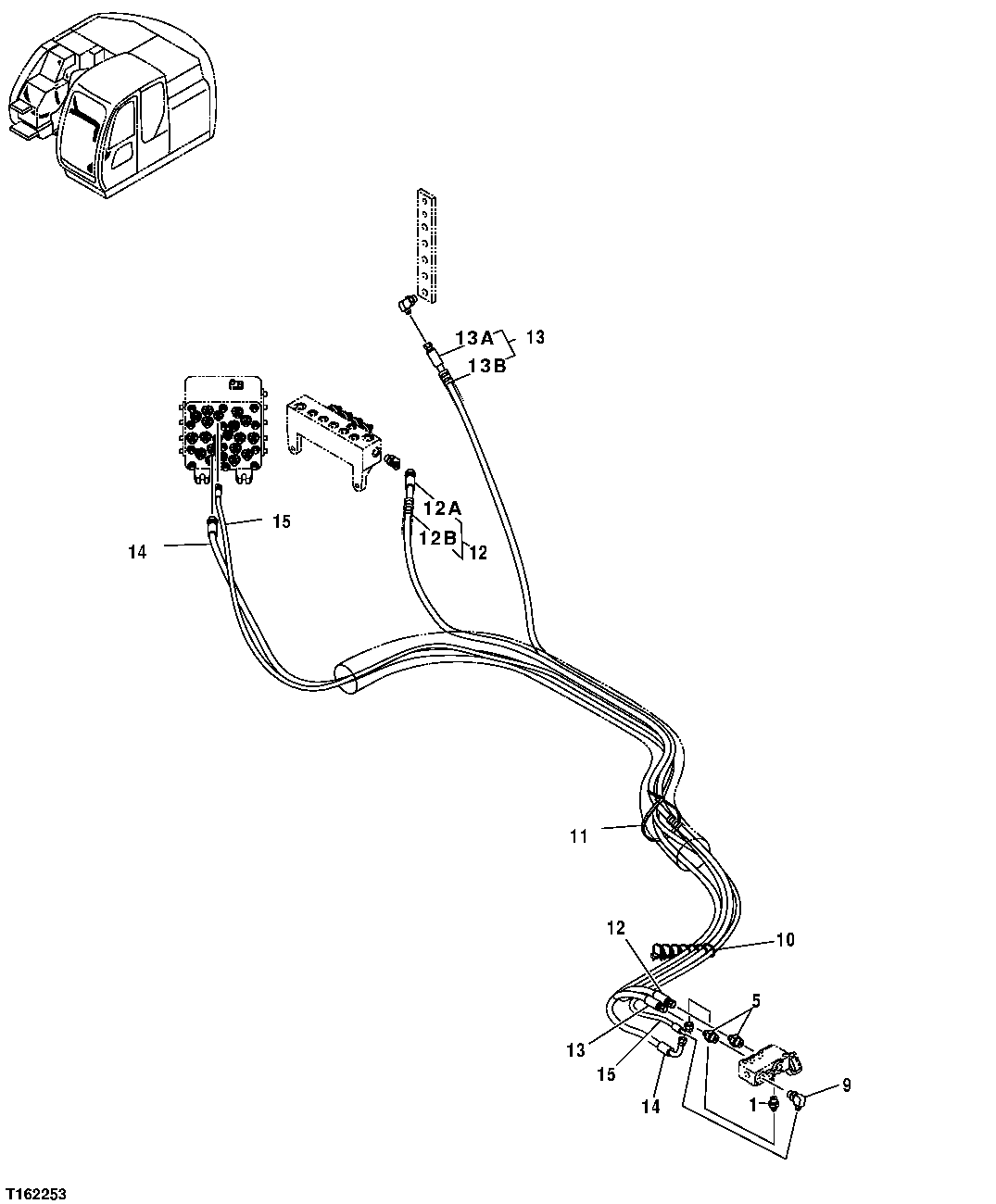

Запчасти John Deere 35D 251 - PILOT LINES (PILOT SIGNAL MANIFOLD TO PILOT SHUTOFF VALVE) 3363 LINES, HOSES, AND FITTINGS

1

A852122

Adapter Fitting

1шт.

M800650

Packing

SUB FOR 957366

1шт.

5

A852133

Adapter Fitting

2шт.

CH11570

O-Ring

SUB FOR 4509180

2шт.

9

A852333

Elbow Fitting

1шт.

CH11570

O-Ring

SUB FOR 4509180

1шт.

10

M88199

Tie Band

7шт.

11

H77698

Tie Band

1шт.

12

Hydraulic Hose

9203441 NLA

1шт.

12A

4685196

Hydraulic Hose

SUB FOR 4457449, 4461271, 4461269, 4461268, 4685196

1шт.

12B

4327315

Hose Guard

4327293 NLA

4шт.

13

Hydraulic Hose

9203440 NLA

1шт.

13A

4437087

Hydraulic Hose

SUB FOR 4457447

1шт.

13B

4327315

Hose Guard

4327293 NLA

7шт.

14

4457450

Hydraulic Hose

1шт.

15

4457452

Hydraulic Hose

1шт.
