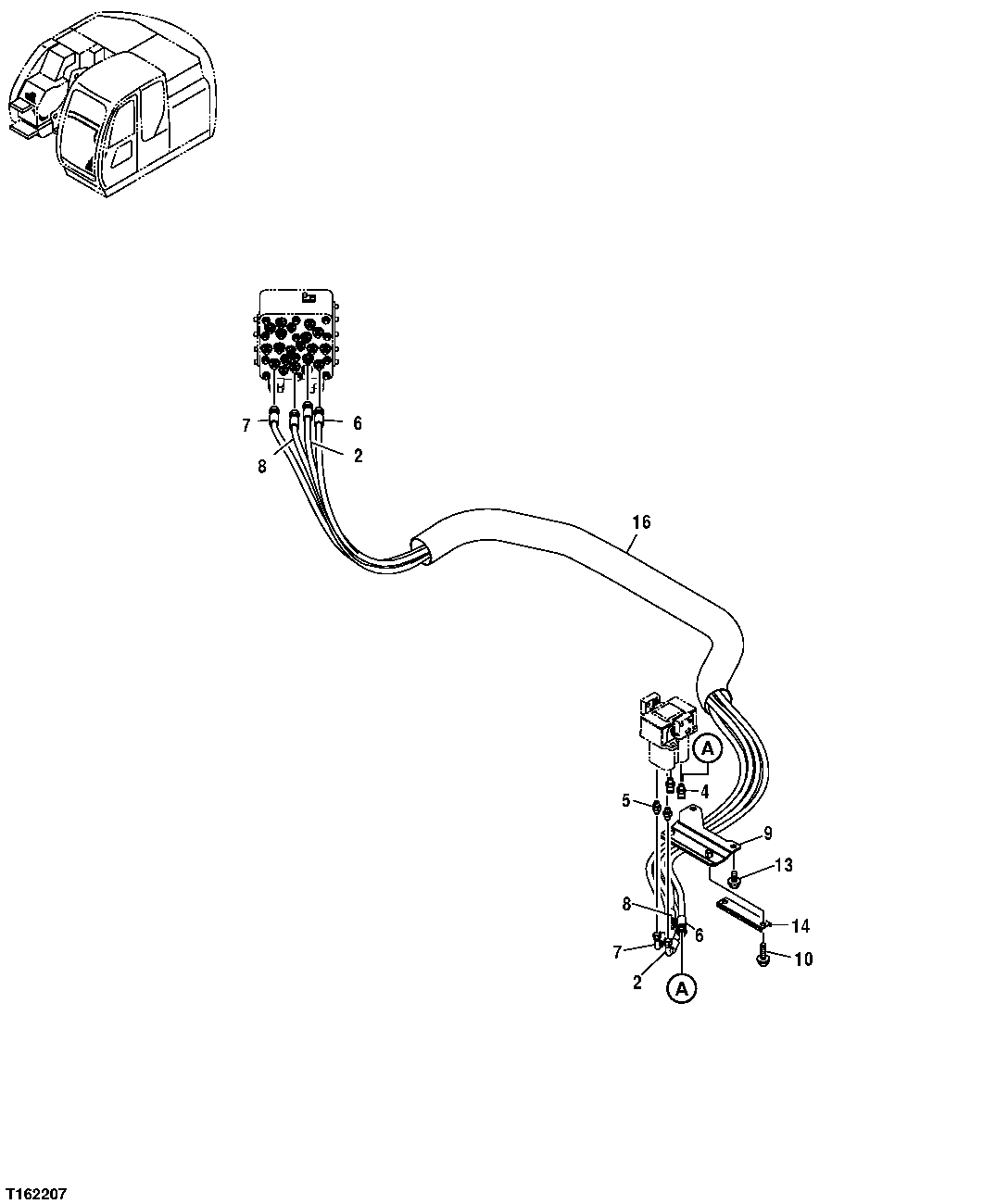

Запчасти John Deere 35D 245 - PILOT LINES (PILOT SIGNAL MANIFOLD TO PROPEL PILOT VALVE) 3363 LINES, HOSES, AND FITTINGS

2

4448912

Hydraulic Hose

1шт.

4

A852323

Elbow Fitting

2шт.

M800650

Packing

(SUB FOR 957366)

2шт.

5

A852123

Adapter Fitting

2шт.

M800650

Packing

(SUB FOR 957366)

2шт.

6

4671428

Hydraulic Hose

(SUB FOR 4450429, 4446852, 4484025, 4419172 OR 4462306)

1шт.

7

4437078

Hydraulic Hose

1шт.

8

4671428

Hydraulic Hose

(SUB FOR 4431844, 4419172 OR 4462306)

1шт.

9

8083070

Bracket

1шт.

10

19M7835

Screw

M10 X 35 (SUB FOR J021040)

2шт.

13

19M7402

Cap Screw

M10 X 25 (SUB FOR J021025)

2шт.

14

4412666

Clamp

1шт.

16

4448087

Hose

1шт.
