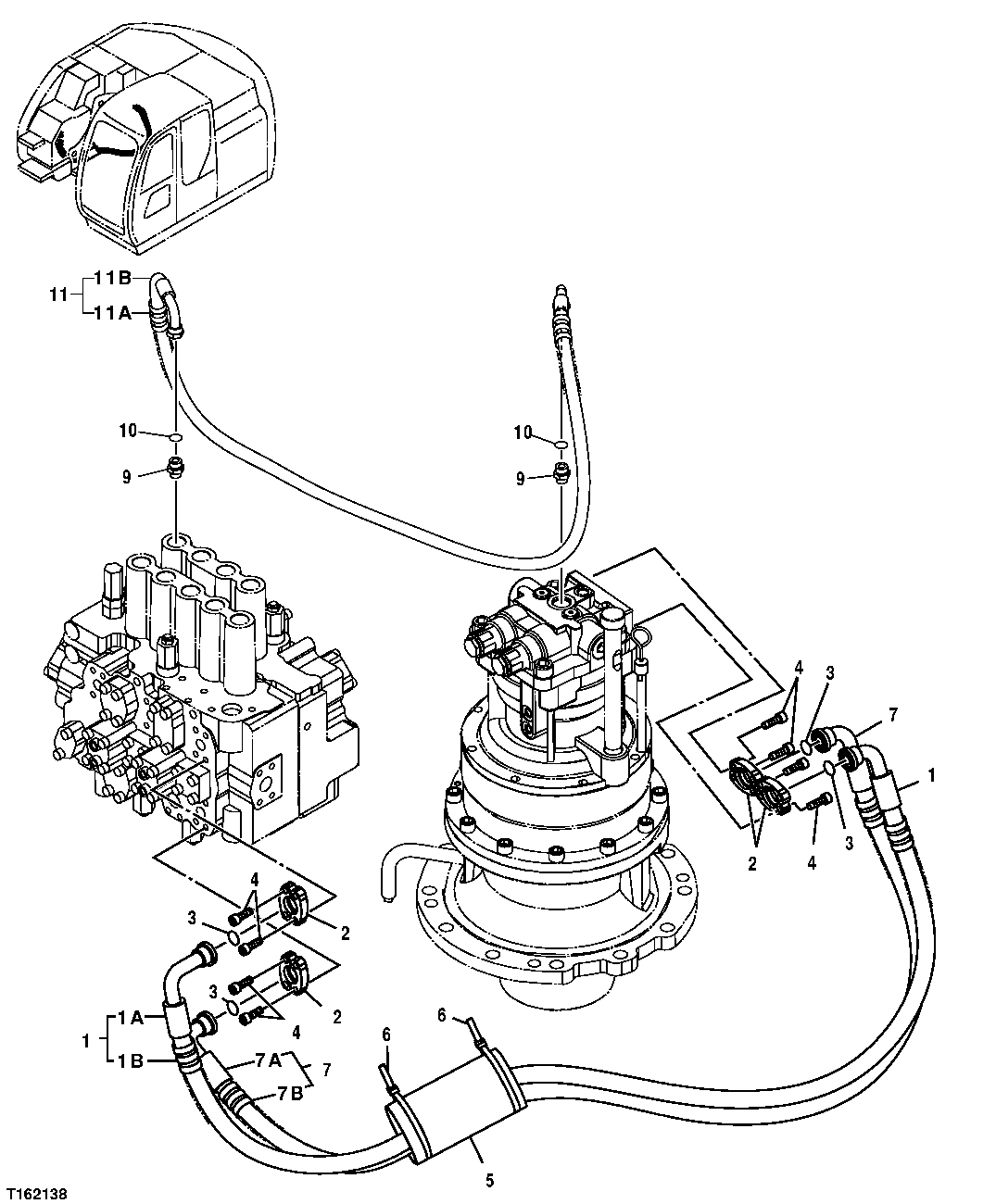

Запчасти John Deere 35D 236 - HYDRAULIC LINES (CONTROL VALVE TO SWING MOTOR) 3363 LINES, HOSES, AND FITTINGS

1

Hydraulic Hose

9197683 NLA

1шт.

1A

4449024

Hydraulic Hose

1шт.

1B

Hose Guard

4327294 NLA, CTL, MF XHG-075

6шт.

2

R29424

Flange Fitting

SUB FOR 986910

8шт.

3

T59014

O-Ring

SUB FOR 971489

4шт.

4

19M7576

Screw

M10 X 30 SUB FOR J781030

16шт.

5

4453084

Grommet

1шт.

6

H77698

Tie Band

(SUB FOR 4121859)

2шт.

7

Hydraulic Hose

9197682 NLA

1шт.

7A

4444309

Hydraulic Hose

1шт.

7B

Hose Guard

4327294 NLA, CTL, MF XHG-075

5шт.

9

A853166

Adapter Fitting

2шт.

AT318035

O-Ring

SUB FOR 4506424

2шт.

10

T77858

O-Ring

SUB FOR 4187308

2шт.

11

Hydraulic Hose

9200876 NLA

1шт.

11A

4453698

Hydraulic Hose

1шт.

11B

Hose Guard

4327294 NLA, CTL, MF XHG-075

ARшт.
