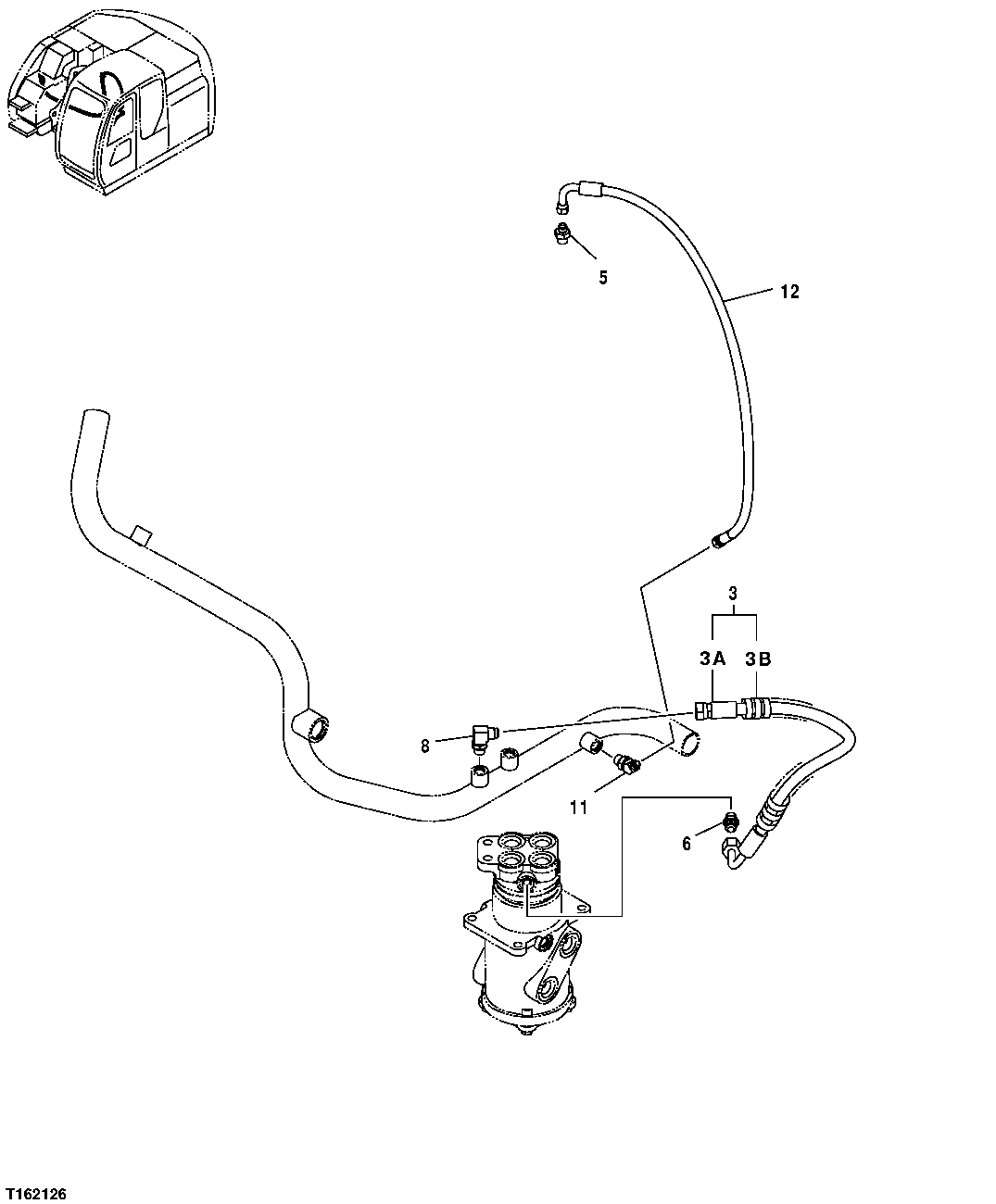

Запчасти John Deere 35D 233 - HYDRAULIC DRAIN LINES (SWING MOTOR AND ROTARY MANIFOLD) 3363 LINES, HOSES, AND FITTINGS

3

Hydraulic Hose

( 9201406 NOT AVAILABLE FOR SERVICE)

1шт.

3A

Hydraulic Hose

( 4420423 NLA) (ORDER 4304464, A852144)

1шт.

3B

Hose Guard

(MAKE FROM XHG-075 BULK MATERIAL , CUT TO LENGTH) ( 4327294 NLA)

1шт.

5

A852133

Adapter Fitting

1шт.

CH11570

O-Ring

1шт.

6

A852134

Adapter Fitting

1шт.

CH11570

O-Ring

1шт.

8

A852334

Elbow Fitting

1шт.

CH11570

O-Ring

(SUB FOR 4509180)

1шт.

11

4190244

Elbow Fitting

(SUB FOR THA852233)

1шт.

CH11570

O-Ring

1шт.

12

4452737

Hydraulic Hose

1шт.
