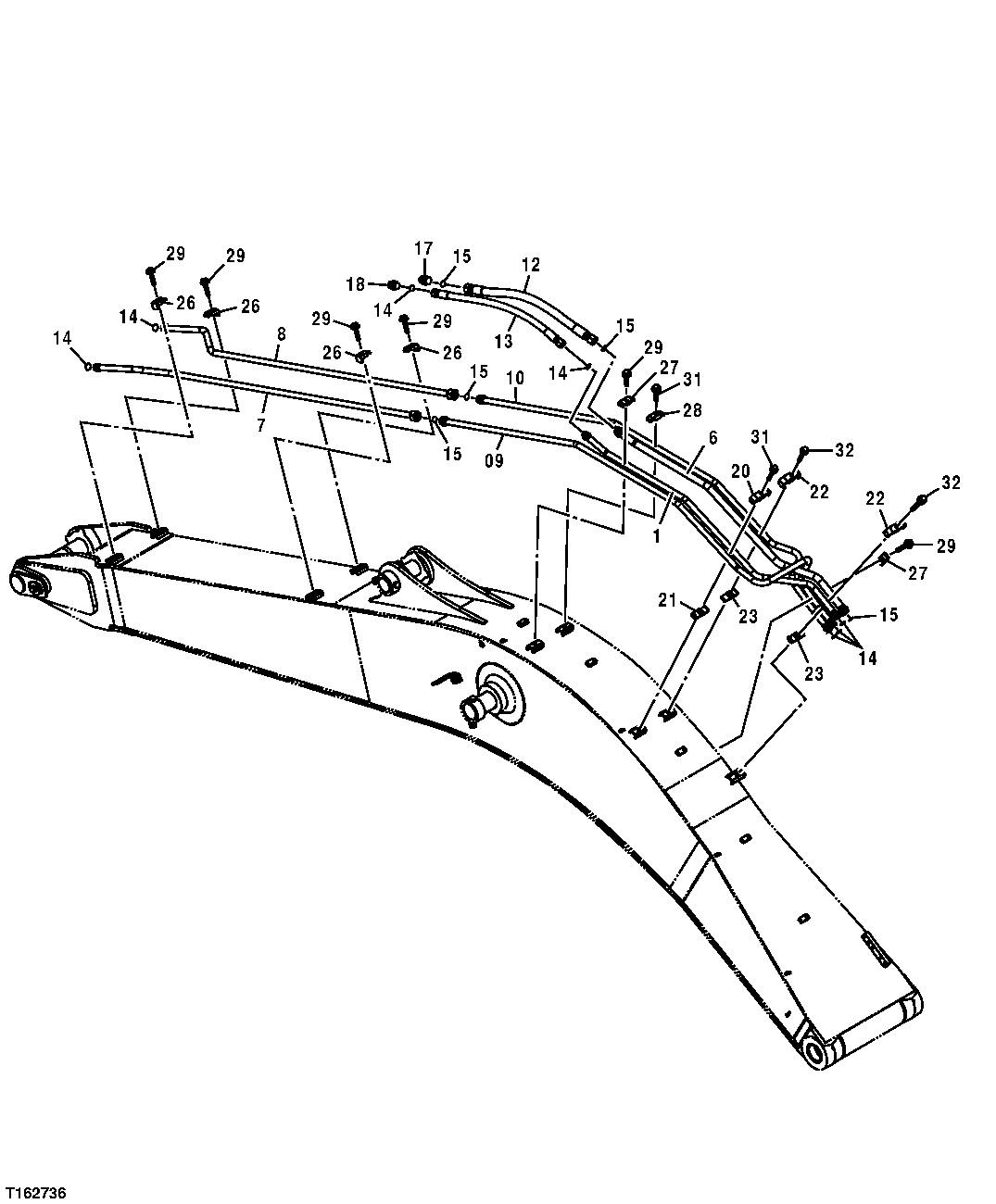

Запчасти John Deere 35D 228 - HYDRAULIC LINES ON BOOM TO CYLINDERS 3363 LINES, HOSES, AND FITTINGS

1

8069247

Oil Line

1шт.

6

8069244

Oil Line

1шт.

7

8079927H

Oil Line

(SUB FOR 8079927)

1шт.

8

8079930H

Oil Line

(SUB FOR 8079930)

1шт.

9

8069851

Oil Line

1шт.

10

8069850

Oil Line

1шт.

12

AT213814

Hydraulic Hose

(SUB FOR 4276956)

1шт.

13

AT168311

Hydraulic Hose

(SUB FOR 4249334)

1шт.

14

T77858

O-Ring

(SUB FOR 4187308)

7шт.

15

T76938

O-Ring

(SUB FOR 4187328)

5шт.

17

A853188

Adapter Fitting

1шт.

TH101926

O-Ring

1шт.

18

A853186

Adapter Fitting

1шт.

TH101926

O-Ring

1шт.

20

4285723

Clamp

Rubber

1шт.

4189859

Clamp

Steel

1шт.

21

AT318021

Clamp

(SUB FOR 4285722)

1шт.

22

4285723

Clamp

Rubber

2шт.

4189859

Clamp

Steel

2шт.

23

AT309596

Clamp

(SUB FOR 4285724)

2шт.

26

4190126

Clamp

4шт.

27

4285723

Clamp

Rubber

2шт.

4189859

Clamp

Steel

2шт.

28

4153488

Clamp

1шт.

29

19M7363

Cap Screw

M12 X 60 (SUB FOR J011260)

6шт.

12H301

Lock Washer

1/2"

6шт.

31

19M7753

Cap Screw

M12 X 70 (SUB FOR J011270)

2шт.

12H301

Lock Washer

1/2"

2шт.

32

19M8088

Cap Screw

M12 X 75 (SUB FOR J011275)

2шт.

12H301

Lock Washer

1/2"

2шт.
