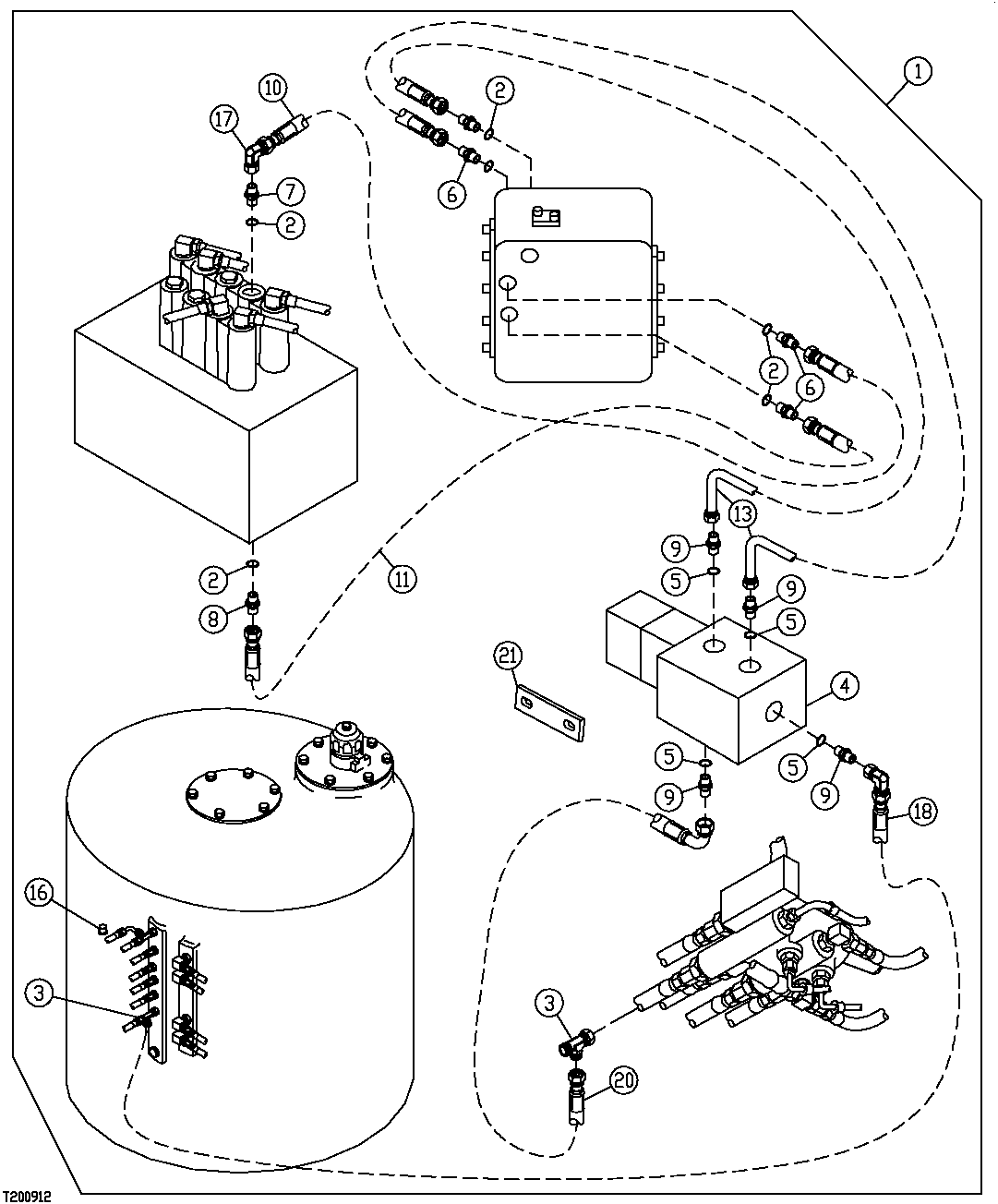

Запчасти John Deere 35D 202 - ELECTRIC SOLENOID VALVE KIT (1 WAY/2 WAY) (WITHOUT PRESSURE SWITCH) 3360 HYDRAULIC SYSTEM

1

Field Installation Kit

(WHOLE GOODS) Electric Solenoid Valv e (INCLUDES H102543 ( AT195713 NLA))

1шт.

2

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

6шт.

3

AT36921

Tee Fitting

2шт.

4

AT180585

Solenoid Valve

1шт.

AT139433

Electrical Coil

2шт.

5

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

4шт.

6

4200466

Adapter Fitting

(SUB FOR TH108320)

4шт.

7

AT130053

Adapter Fitting

1шт.

8

AT131445

Adapter Fitting

1шт.

9

R27212

Fitting

4шт.

10

AT108783

Hydraulic Hose

9/16" X 567 mm (22-1/4") X 9/16"

1шт.

11

AR90081

Hydraulic Hose

9/16" X 1270 mm (50") X 9/16"

1шт.

12

24M7054

Washer

6.400 X 12 X 1.600 mm Not Illustrated

4шт.

13

AT68901

Hydraulic Hose

9/16" X 964 mm (38") X 9/16"

2шт.

14

14M7272

Nut

M6 Not Illustrated

2шт.

15

19M7529

Cap Screw

M6 X 55 Not Illustrated

2шт.

16

R31147

Fitting

Cap

1шт.

17

AE24616

Elbow Fitting

1шт.

18

AT71732

Hydraulic Hose

9/16" X 1422 mm (56") X 9/16"

1шт.

20

AT78124

Hydraulic Hose

9/16" X 3531 mm (139") X 9/16"

1шт.

21

T202379

Strap

1шт.
