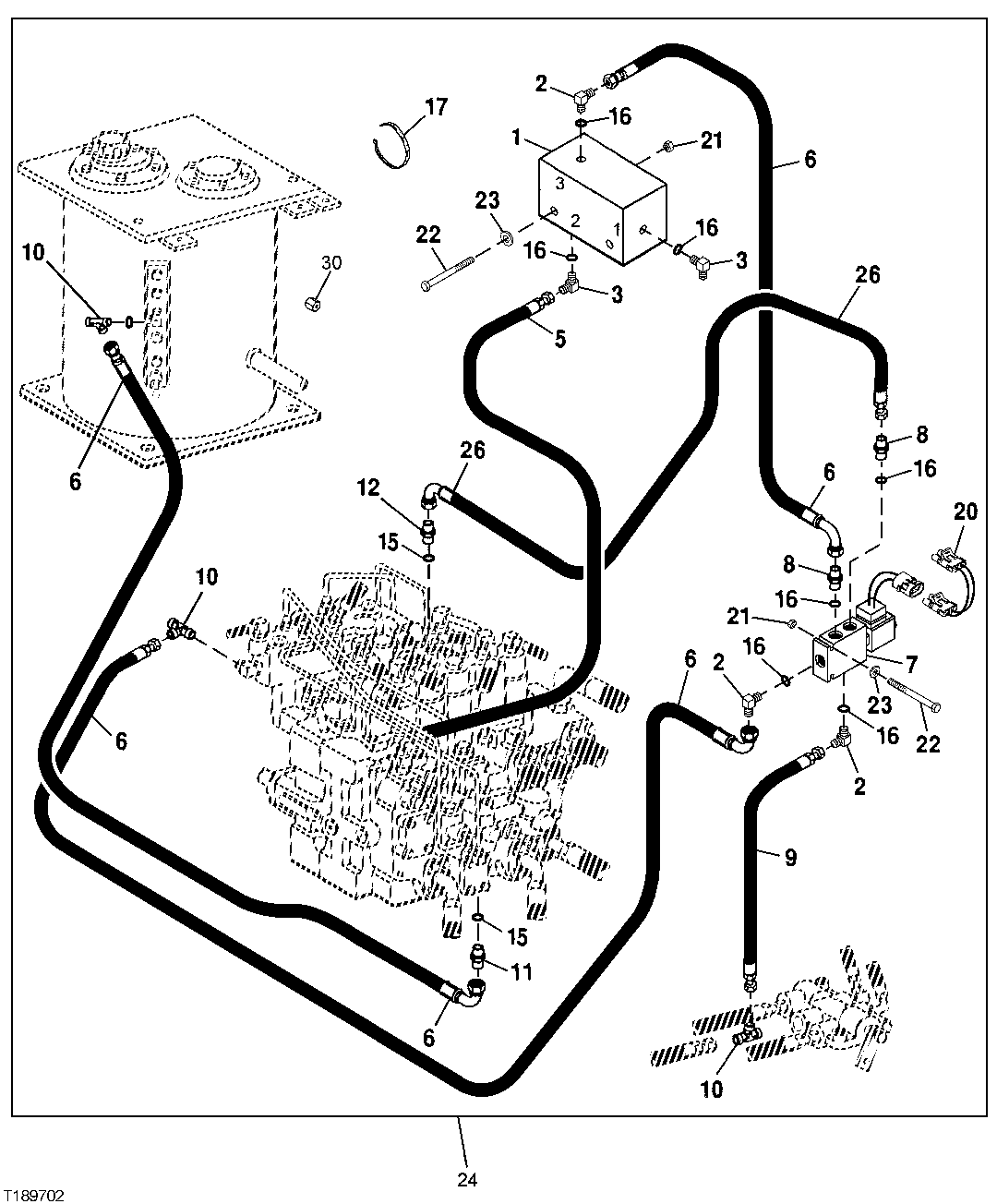

Запчасти John Deere 35D 201 - SOLENOID CONTROL AND FLOW CONTROL VALVE KIT (1-WAY) 3360 HYDRAULIC SYSTEM

1

AT186623

Hydraulic Pressure Valve

Load Lowering Boom Holding Valve

1шт.

2

AT35121

Elbow Fitting

4шт.

3

AH75160

Elbow Fitting

2шт.

5

AE42718

Hydraulic Hose

1шт.

6

AT71732

Hydraulic Hose

4шт.

7

AT306723

Elec.Proportional Valve

Solenoid (SUB FOR AT116486 AND AT140041)

1шт.

Electrical Coil

( AT140041 NLA)

1шт.

8

R27212

Fitting

4шт.

9

AT130684

Hydraulic Hose

1шт.

10

AT36921

Tee Fitting

3шт.

11

4200466

Adapter Fitting

(SUB FOR TH108320)

1шт.

12

AT130053

Adapter Fitting

1шт.

15

CH11570

O-Ring

13.800 X 2.400 mm (0.543" X 3/32")

3шт.

16

R26448

O-Ring

11.887 X 1.981 mm (0.468" X 5/64")

7шт.

17

R44302

Tie Band

4шт.

20

AT191297

Wiring Harness

1шт.

21

14M7272

Nut

M6

4шт.

22

19M7529

Cap Screw

M6 X 55

4шт.

23

24M7139

Washer

6.400 X 18 X 1.600 mm

4шт.

24

Field Installation Kit

(WHOLE GOODS) Complete Kit (ALSO ORDE R T188662 AND AT78124 ( AT186622 NLA))

1шт.

25

R28782

O-Ring

8.915 X 1.829 mm (0.351" X 0.072") Not Illustrated

1шт.

26

AT71082

Hydraulic Hose

1шт.

27

AE24616

Elbow Fitting

Not Illustrated

1шт.

30

R31147

Fitting

1шт.
