Запчасти John Deere 35D 197 - Standard Arm (2.91 m - 9 ft. 6 in.) 3340 BACKHOE & EXCAVATOR FRAMES

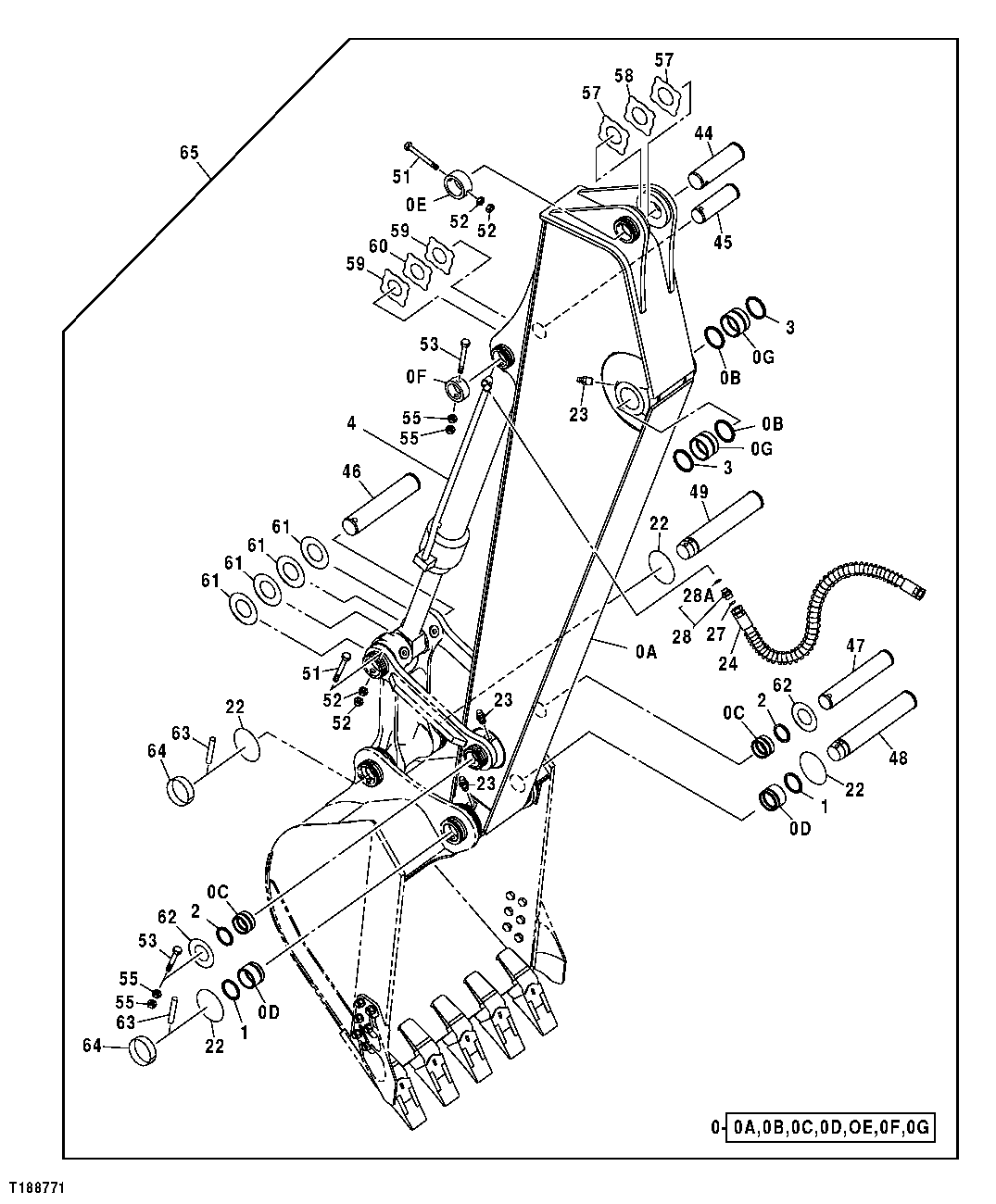

Схема запчастей John Deere 35D - 197 - Standard Arm (2.91 m - 9 ft. 6 in.) 3340 BACKHOE & EXCAVATOR FRAMES

Артикул

Название

Примечание

Количество

0

7035467

Arm

SUB FOR TH7035467

1шт.

0A

Arm

6017445 NLA SUB FOR TH6017445

1шт.

0B

TH102445

Seal

2шт.

0C

4409122

Bushing

SUB FOR TH4409122

2шт.

0D

4409178

Bushing

SUB FOR TH4409178

2шт.

0E

4434953

Stop

SUB FOR TH4434953

1шт.

0F

4435239

Stop

SUB FOR TH4435239

1шт.

0G

4443881

Bushing

SUB FOR TH4443881

2шт.

0H

8070638

Boss

Not Illustrated Replacement Arm End Parts

1шт.

1

TH102446

Seal

2шт.

2

TH104472

Seal

2шт.

3

TH102445

Seal

2шт.

4

Cylinder

Bucket Cylinder See Se parate Page For Detail

1шт.

22

4089028

O-Ring

(STANDARD O-RING)

4шт.

AT349466

Seal

(SPLIT O-RING)

4шт.

T397473

V-Ring Seal

V O-Ring

4шт.

23

TH100074

Lubrication Fitting

6шт.

24

AT155741

Hydraulic Hose

30.1752" X 1600 mm (63") X 30.1752"

2шт.

27

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

2шт.

28

A853166

Adapter Fitting

SUB FOR THA853166

2шт.

28A

T77858

O-Ring

18.771 X 1.778 mm (0.739" X 0.070")

1шт.

44

3088575

Pin

SUB FOR TH3088575

1шт.

45

3088578

Pin Fastener

SUB FOR TH3088578

1шт.

46

AT317252

Pin Fastener

SUB FOR AT192340, 3088581

1шт.

47

3088579

Pin Fastener

SUB FOR TH3088579

1шт.

48

3088577

Pin Fastener

SUB FOR TH3088577

1шт.

49

3088580

Pin Fastener

SUB FOR TH3088580

1шт.

51

4435126

Pin Fastener

SUB FOR TH4435126

2шт.

52

14M7277

Nut

M20

4шт.

53

4435124

Pin Fastener

SUB FOR TH4435124

2шт.

55

14M7276

Nut

M16

4шт.

57

4444286

Thrust Washer

SUB FOR TH4444286

2шт.

58

4444287

Thrust Washer

SUB FOR TH4444287

1шт.

59

4361293

Plate

SUB FOR 4444288

2шт.

60

4361294

Plate

SUB FOR 4444289

1шт.

61

4450012

Thrust Washer

SUB FOR TH4450012

4шт.

62

4450011

Thrust Washer

SUB FOR TH4450011

2шт.

63

4454560

Pin Fastener

SUB FOR TH4454560

2шт.

64

4454561

Bushing

SUB FOR TH4454561

2шт.

65

Arm

AT194921 NLA; WHOLE GOODS; INCLU DES ARM, BUCKET CYLINDER, HOSES AN D LINKAGE; DOES NOT INCLUDE BUCKET

1шт.

Выбрано товаров: 40
