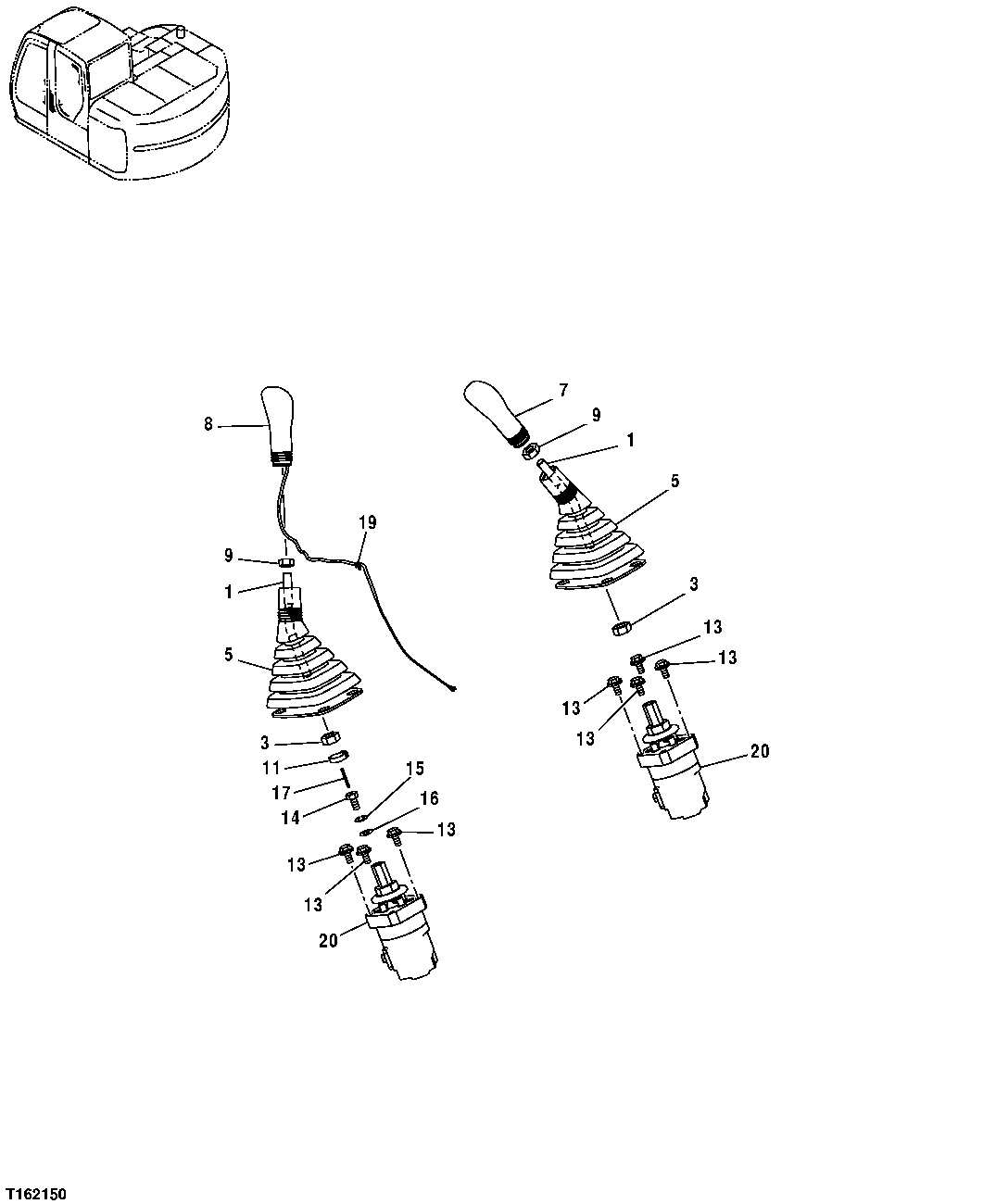

Запчасти John Deere 35D 187 - PILOT CONTROLLERS (DIG AND SWING) 3315 CONTROLS LINKAGE

1

4445322

Lever

2шт.

3

14M7141

Nut

M14 SUB FOR J950014

2шт.

5

2045470

Boot

2шт.

7

2045471

Grip

1шт.

8

2045472

Grip

1шт.

9

14M7357

Nut

M12 SUB FOR J952012

2шт.

11

H77698

Tie Band

SUB FOR 4055311

2шт.

13

19M7162

Cap Screw

M8 X 16 SUB FOR J020816

6шт.

19M7139

Cap Screw

M8 X 20 SUB FOR J260820 OR J900820

6шт.

24M7055

Washer

8.400 X 16 X 1.600 mm SUB FOR A590108

6шт.

14

4438279

Bolt

2шт.

4609956

Bolt

2шт.

15

Washer

12M7065 NLA

2шт.

16

24M7055

Washer

8.400 X 16 X 1.600 mm SUB FOR A590108

2шт.

17

34M7086

Spring Pin

3 X 32 mm SUB FOR 4144011

2шт.

19

H77698

Tie Band

2шт.

20

9195304

Hydr./Pilot Control Valve

SUB 9239583, (3) 19M7139 , (3) 24M7055 AND 4609956

2шт.

FYB60000655

Hydr./Pilot Control Valve

SUB FOR 9239583

2шт.
