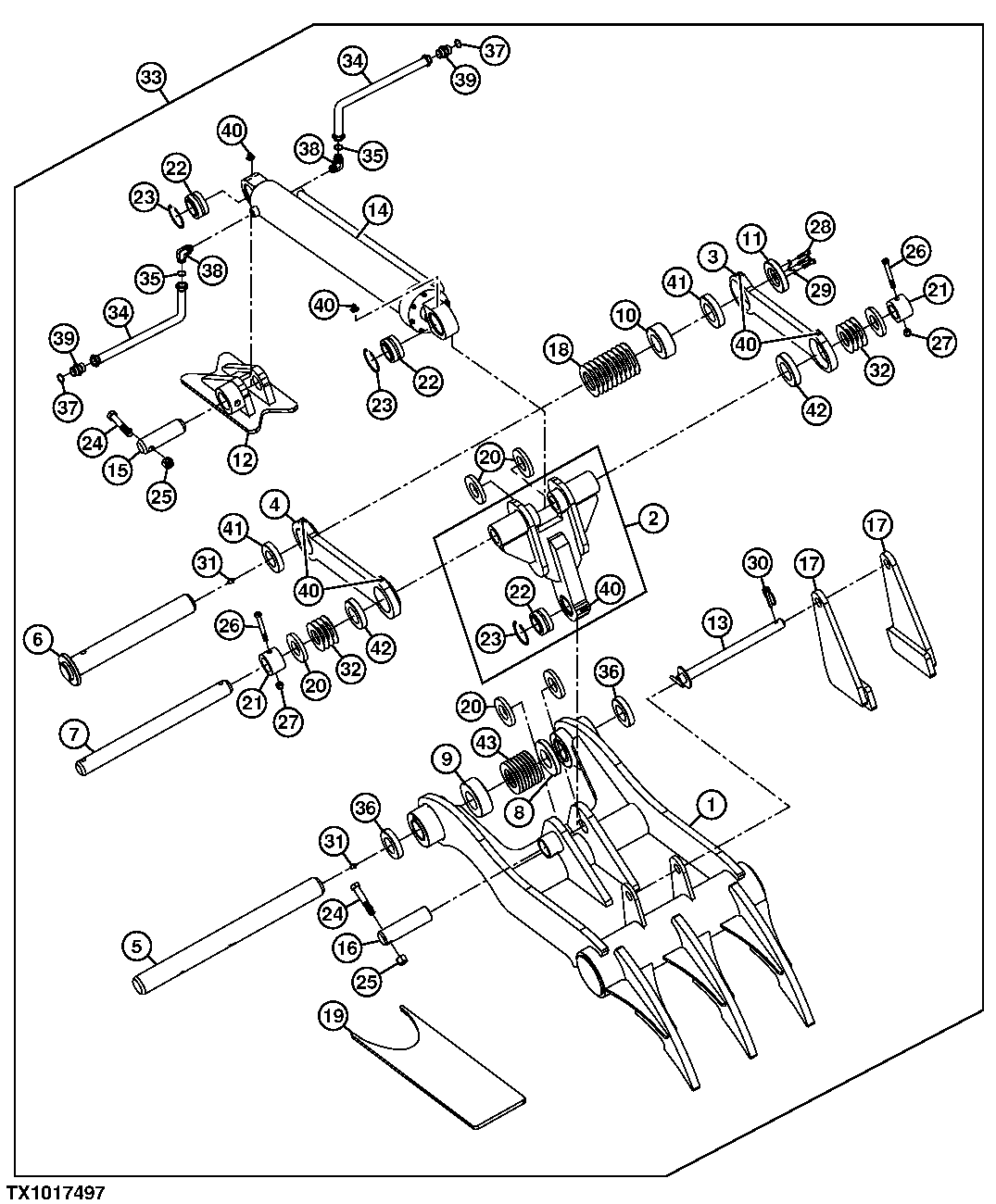

Запчасти John Deere 35D 185 - Progressive Hydraulic Thumb Kit 3302 BUCKET WITH TEETH

1

Clamp

1шт.

2

AT339888

Link

1шт.

3

AT339889

Link

1шт.

4

AT339883

Link

1шт.

5

AT339886

Pin

1шт.

6

AT339890

Pin

1шт.

7

AT339891

Pin

1шт.

8

Spacer

1шт.

9

Spacer

1шт.

10

Spacer

1шт.

11

T229312

Cap

1шт.

12

Bracket

1шт.

13

T229430

Pin

1шт.

14

AT339877

Hydraulic Cylinder

1шт.

AT339879

Seal Kit

Not Illustrated

1шт.

15

T229331

Pin

1шт.

16

AT339862

Pin

1шт.

17

Bracket

2шт.

18

T229330

Shim

10шт.

19

Reinforcement

1шт.

20

T229423

Thrust Washer

6шт.

21

T229431

Locking Collar

2шт.

22

AT339878

Bushing

3шт.

23

T229413

Snap Ring

3шт.

24

19H3196

Cap Screw

3/4" X 4"

2шт.

25

T25879

Nut

2шт.

26

19H3550

Cap Screw

1/2" X 4"

2шт.

27

U16721

Lock Nut

2шт.

28

19H2633

Cap Screw

3/8" X 1-1/2"

3шт.

29

12H304

Lock Washer

3/8"

3шт.

30

T115753

Pin Fastener

1шт.

31

JD7769

Lubrication Fitting

1шт.

32

T229428

Shim

8шт.

33

AT339847

Clamp

30 in. Bucket Not For Use W ith 7 ft. 3 in. (2.22 m) Arm

1шт.

AT341014

Clamp

36 in. Bucket Not For Use W ith 7 ft. 3 in. (2.22 m) Arm

1шт.

AT341015

Clamp

42 in. Bucket Not For Use W ith 7 ft. 3 in. (2.22 m) Arm

1шт.

34

AT342742

Hydraulic Hose

2шт.

35

R26375

O-Ring

2шт.

36

T229309

Bushing

2шт.

37

R29936

O-Ring

2шт.

38

X128C5OXS

Fitting

2шт.

39

X1216F4OMXS

Hose Fitting

2шт.

40

JD5815

Lubrication Fitting

7шт.

41

T229434

Bushing

2шт.

42

T229327

Bushing

2шт.

43

T229509

Shim

(SUB FOR T229310)

8шт.
