Запчасти John Deere 35D 169 - DITCHING BUCKET 3302 BUCKET WITH TEETH

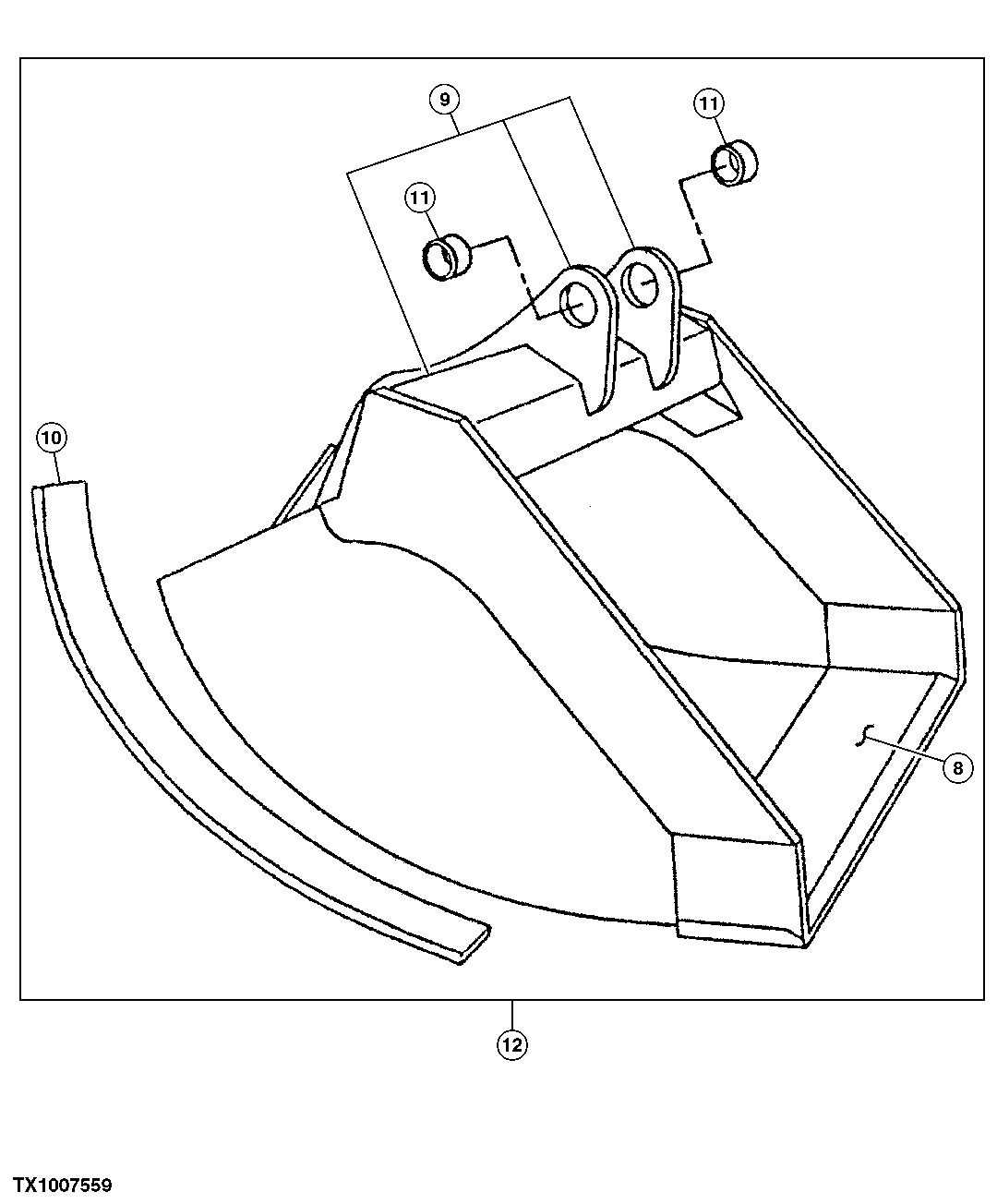

Схема запчастей John Deere 35D - 169 - DITCHING BUCKET 3302 BUCKET WITH TEETH

Артикул

Название

Примечание

Количество

8

AT131089

Dura-Max Cutting Edge

(USE WITH AT332702 BUCKET)

1шт.

AT131088

Dura-Max Cutting Edge

(USE WITH AT332703 BUCKET)

1шт.

9

C607480

Pivot

(A) (BUCKET EAR BLANK ASSEMBLY)

1шт.

10

300204

Bar

(A) (WEAR)

5шт.

11

TH104509

Bushing

(USE WITH AT332702 BUCKET)

2шт.

TH108649

Bushing

(USE WITH AT332703 BUCKET)

2шт.

12

Excavator Bucket

( AT332702 NLA) (60 INCH/0.90 CUBIC YARD) (SUB FOR AT161005)

1шт.

Excavator Bucket

( AT332703 NLA) (60 INCH/1.13 CUBIC YA RD) (SUB FOR AT199362 ) (SUB AT339148)

1шт.

Выбрано товаров: 8
