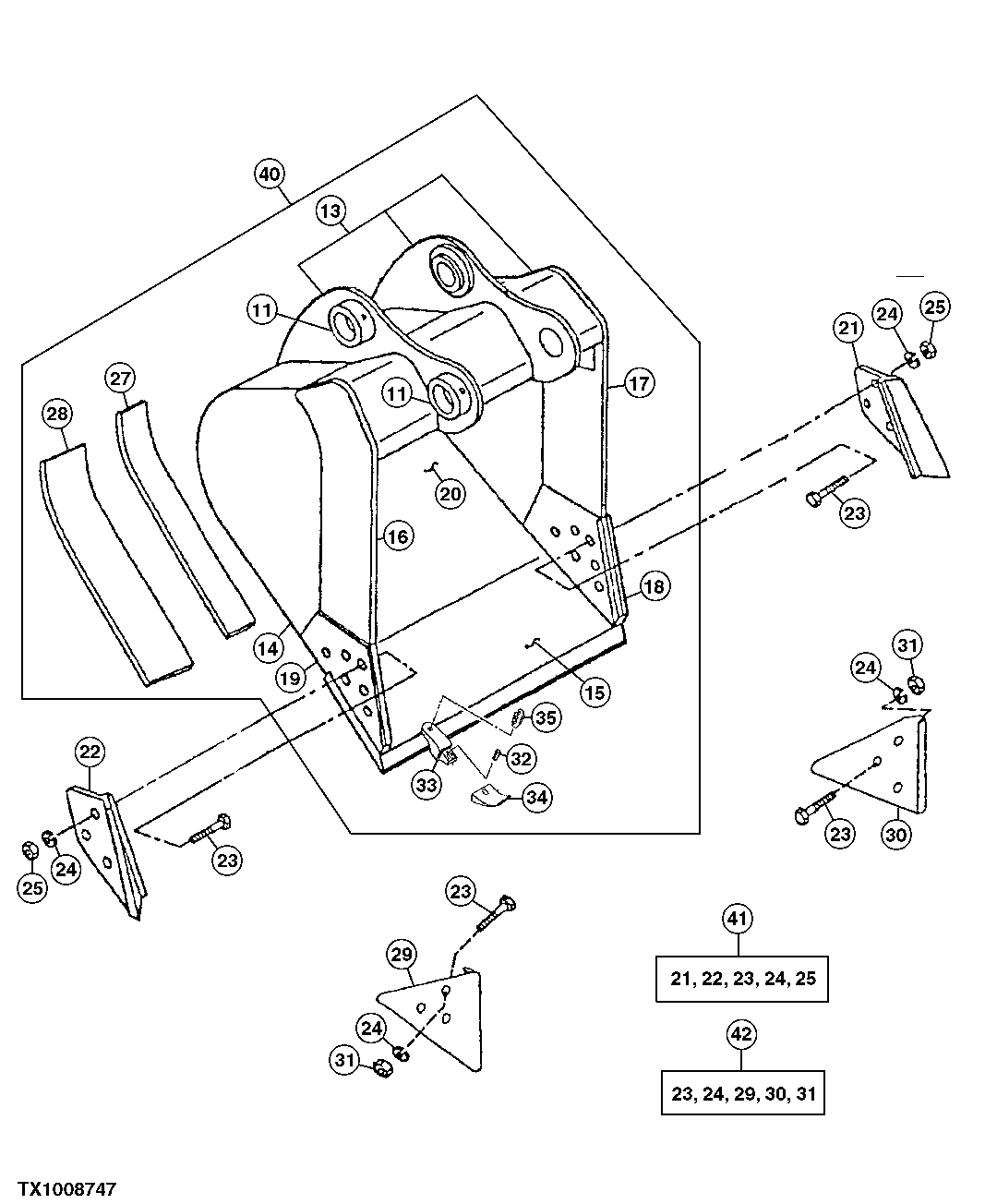

Запчасти John Deere 35D 163 - HEAVY DUTY HIGH CAPACITY BUCKET 3302 BUCKET WITH TEETH

11

TH104509

Bushing

(LOCKING COLLAR)

2шт.

13

C607480

Pivot

(A) (BUCKET EAR BLANK ASSEMBLY)

1шт.

14

300167

Plate

(A) (RH / LH)

2шт.

15

Cutting Edge

(MAKE FROM AT131090)(CUT TO LENGTH)

1шт.

C252567

Cutting Edge

(A) (CUT TO LENGTH) Use With 36 in. Bucket

1шт.

16

300159

Vertical Cutter

(A) (UPPER) (RH)

1шт.

17

300160

Vertical Cutter

(A) (UPPER) (LH)

1шт.

18

300158

Vertical Cutter

(A) (INSERT) (LH)

1шт.

19

300157

Vertical Cutter

(A) (INSERT) (RH)

1шт.

20

600118

Moldboard

(A) (24 INCH)

1шт.

600119

Moldboard

(A) (30 INCH)

1шт.

600120

Moldboard

(A) (36 INCH)

1шт.

600121

Moldboard

(A) (42 INCH)

1шт.

600122

Moldboard

(A) (48 INCH)

1шт.

21

Cutting Edge

(SUB AT131085)(LH)

1шт.

22

Cutting Edge

(SUB AT131085)(RH)

1шт.

23

09H1771

Bolt

7/8" X 3"

6шт.

24

12H245

Lock Washer

7/8"

6шт.

25

14H1077

Nut

7/8"

6шт.

27

300156

Bar

(A) (INNER WEAR)

1шт.

28

306452

Bar

(A) (OUTER WEAR)

2шт.

29

Shroud

(SUB AT167876)(WEAR)

1шт.

30

Shroud

(SUB AT167876)(WEAR)

1шт.

31

14H1044

Nut

7/8"

6шт.

32

TK290

Pin

ARшт.

33

T158X290

Bucket Tooth Adapter

ARшт.

34

TF290

Tooth

ARшт.

35

TK130

Shaft Key

ARшт.

40

Excavator Bucket

( AT332693 NLA) (24 INCH/0.73 CUBIC YARD) 4 Teeth (SUB FOR AT163616 ) (SUB AT339138)

1шт.

Excavator Bucket

( AT332695 NLA) (30 INCH/0.95 CUBIC YARD) 4 Teeth (SUB FOR AT163617 ) (SUB AT339140)

1шт.

Excavator Bucket

( AT332696 NLA) (36 INCH/1.16 CUBIC YARD) 5 Teeth (SUB FOR AT163618 ) (SUB AT339142)

1шт.

Excavator Bucket

( AT332697 NLA) (42 INCH/1.38 CUBIC YARD) 5 Teeth (SUB FOR AT163620 ) (SUB AT339144)

1шт.

Excavator Bucket

( AT332698 NLA) (48 INCH/1.6 CUBIC YARD) 6 Teeth (SUB FOR AT199358 ) (SUB AT339146)

1шт.

41

Kit

Cutting Edge ( AT131085 NLA)

1шт.

42

Kit

Wear ( AT167876 NLA)

1шт.
