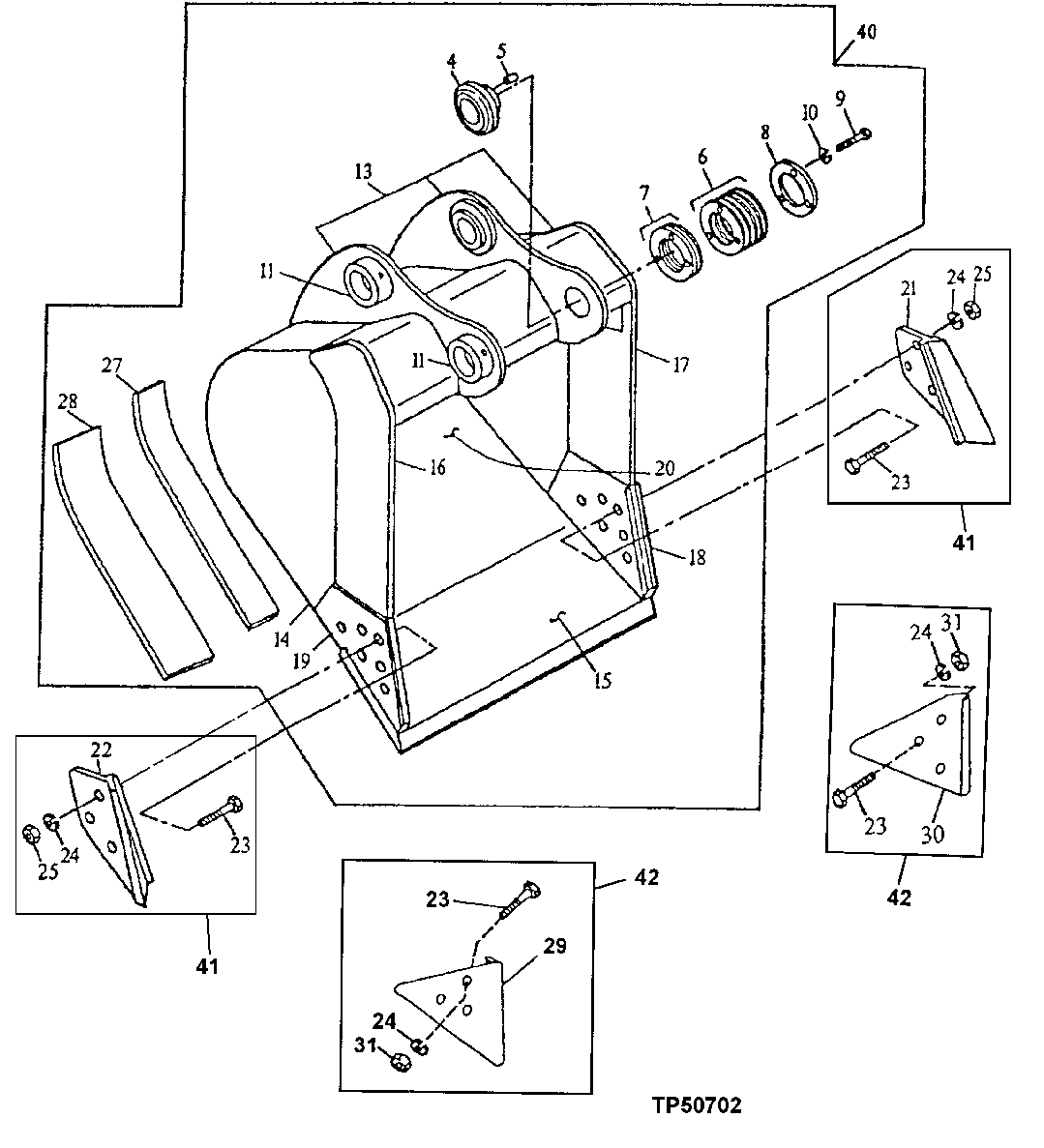

Запчасти John Deere 35D 162 - HEAVY DUTY HIGH CAPACITY BUCKET (ALSO ORDER BUCKET TOOTH ASSEMBLIES) 3302 BUCKET WITH TEETH
№
Артикул
Название
Примечание
Количество
4
Self-Aligning Bushing
(1 INCH HEAD THICKNESS) ( AT131083 NLA)
1шт.
5
R48685
Dowel Pin
1шт.
6
TH104512
Washer
9шт.
7
TH104513
Shim
1шт.
8
TH104514
Spacer
1шт.
9
19H2706
Cap Screw
5/8" X 2"
3шт.
10
12H294
Lock Washer
5/8"
3шт.
11
TH104509
Bushing
(LOCKING COLLAR)
2шт.
13
C607480
Pivot
(A) (BUCKET EAR BLANK ASSEMBLY)
1шт.
15
Cutting Edge
(MAKE FROM AT131090)(CUT TO LENGTH)
1шт.
C252567
Cutting Edge
(A) (CUT TO LENGTH) Use With 36 in. Bucket
1шт.
16
300159
Vertical Cutter
(A) (UPPER) (RH)
1шт.
17
300160
Vertical Cutter
(A) (UPPER) (LH)
1шт.
18
300158
Vertical Cutter
(A) (INSERT) (LH)
1шт.
19
300157
Vertical Cutter
(A) (INSERT) (RH)
1шт.
20
600118
Moldboard
(A) (24 INCH)
1шт.
600119
Moldboard
(A) (30 INCH)
1шт.
600120
Moldboard
(A) (36 INCH)
1шт.
600121
Moldboard
(A) (42 INCH)
1шт.
600122
Moldboard
(A) (48 INCH)
1шт.
21
Cutting Edge
(SUB AT131085)(LH)
1шт.
22
Cutting Edge
(SUB AT131085)(RH)
1шт.
23
09H1771
Bolt
7/8" X 3"
6шт.
24
12H245
Lock Washer
7/8"
6шт.
25
14H1077
Nut
7/8"
6шт.
27
300156
Bar
(A) (INNER WEAR)
1шт.
28
306452
Bar
(A) (OUTER WEAR)
2шт.
29
Shroud
(SUB AT167876)(WEAR)
1шт.
30
Shroud
(SUB AT167876)(WEAR)
1шт.
31
14H1044
Nut
7/8"
6шт.
40
Excavator Bucket
(SUB AT332693)( AT163616 NLA) (24 I NCH - .73 CUBIC YARD) (WHOLE GOODS)
1шт.
Excavator Bucket
(SUB AT332695)( AT163617 NLA) (30 I NCH - .95 CUBIC YARD) (WHOLE GOODS)
1шт.
Excavator Bucket
(SUB AT332696)( AT163618 NLA) (36 I NCH - 1.16 CUBIC YARD) (WHOLE GOODS)
1шт.
Excavator Bucket
(SUB AT332697)( AT163620 NLA) (42 I NCH - 1.38 CUBIC YARD) (WHOLE GOODS)
1шт.
Excavator Bucket
(36 INCH - 1.25 CUBIC YARD) ( AT183961 NLA) (WHOLE GOODS)
1шт.
Excavator Bucket
(SUB AT332698)( AT199358 NLA) (48 I NCH - 1.6 CUBIC YARD) (WHOLE GOODS)
1шт.
41
Kit
Cutting Edge ( AT131085 NLA)
1шт.
42
Kit
Wear ( AT167876 NLA)
1шт.
Выбрано товаров: 39
