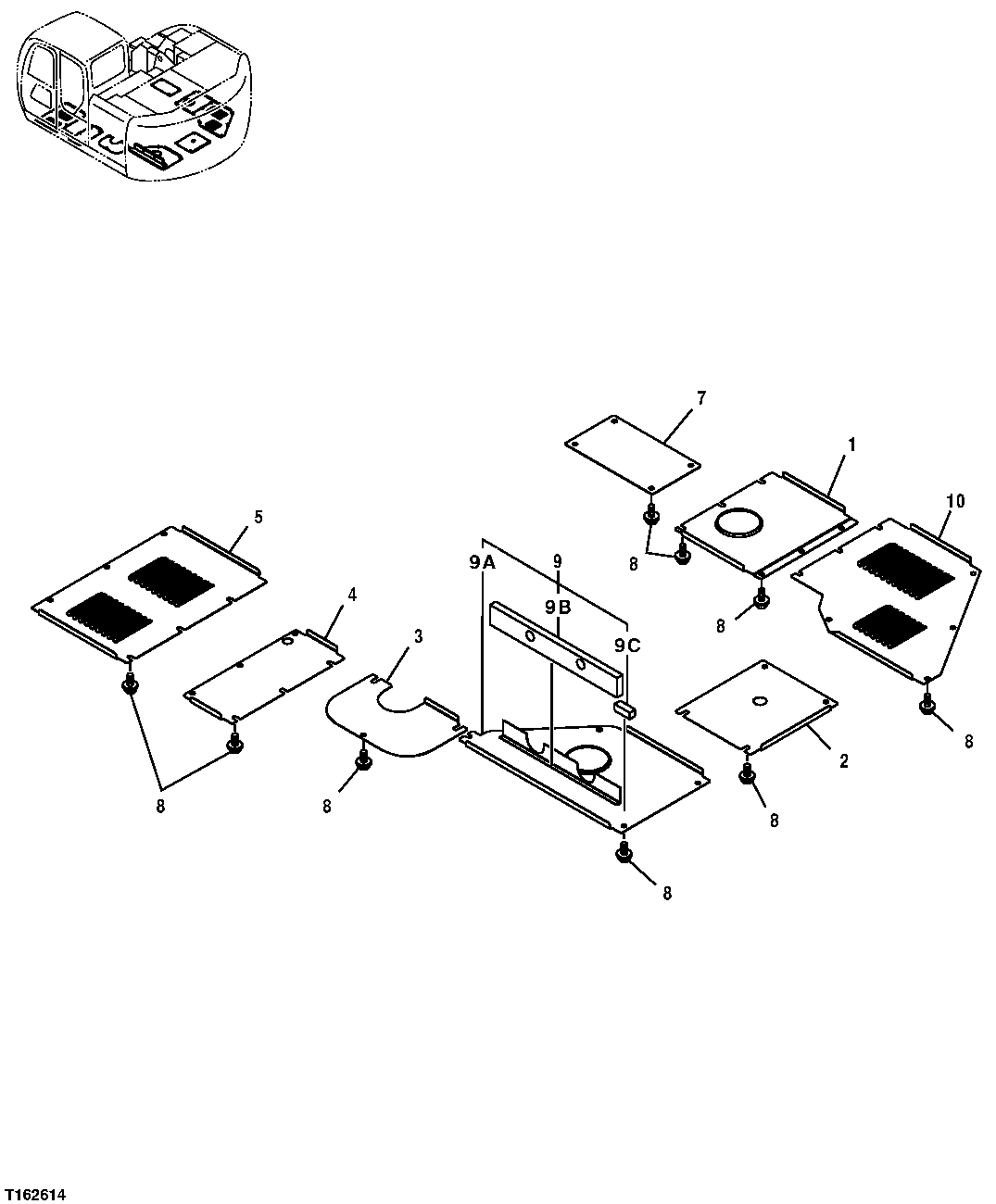

Запчасти John Deere 35D 144 - BOTTOM ACCESS COVERS 1910 HOOD OR ENGINE ENCLOSURE

1

3091380

Cover

1шт.

2

3091381

Cover

Engine Oil Pan

1шт.

3

3091382

Cover

Swing Motor Gearbox

1шт.

4

3091383

Cover

Cab Bottom Rear

1шт.

5

3091384

Cover

Cab Bottom Front

1шт.

7

4453610

Cover

(SUB FOR 4391207)

1шт.

8

19M7550

Cap Screw

M10 X 35

37шт.

12M7066

Lock Washer

10 mm

37шт.

24M7346

Washer

11 X 20 X 2 mm

37шт.

9

Cover

( 8083871 NLA) Furnish Compo nents Engine Bottom Left Side

1шт.

9A

8082982

Cover

1шт.

9B

4452728

Isolator

1шт.

9C

4452729

Isolator

1шт.

10

2046085

Cover

Pump Compartment

1шт.
