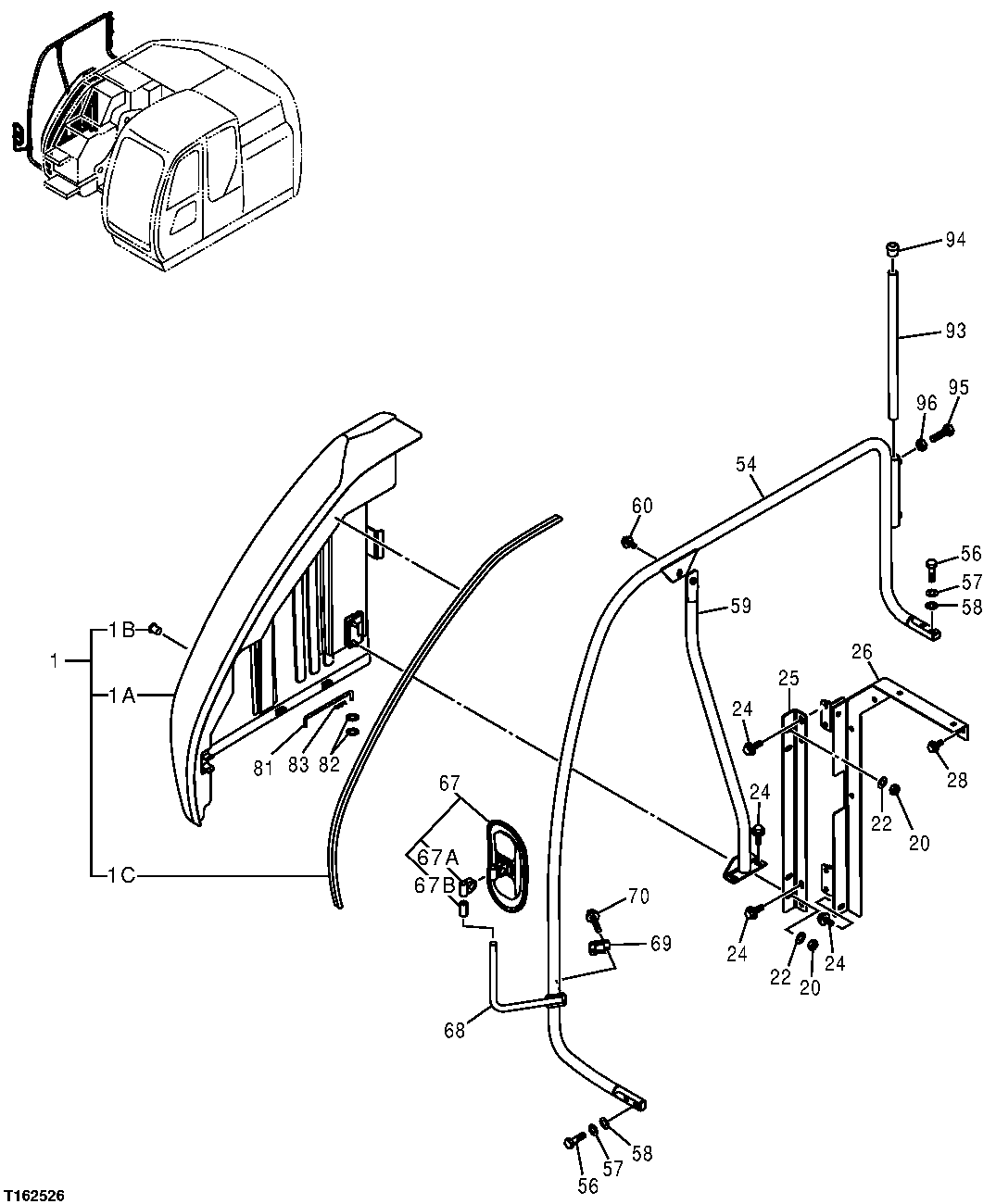

Запчасти John Deere 35D 134 - CONTROL VALVE COMPARTMENT DOOR 1910 HOOD OR ENGINE ENCLOSURE

1

7039930

Cover

1шт.

1A

6019574

Cover

1шт.

1B

4379989

Cylinder

1шт.

1C

4452747

Isolator

1шт.

20

14M7274

Nut

M10

4шт.

22

24M7101

Washer

11 X 34 X 3 mm

4шт.

24

19M7662

Cap Screw

M10 X 30 SUB FOR J031030

6шт.

12M7067

Lock Washer

12 mm

6шт.

24M7346

Washer

11 X 20 X 2 mm

6шт.

25

3091602

Bracket

1шт.

26

7039941

Support

1шт.

28

19M7402

Cap Screw

M10 X 25 SUB FOR J031025

1шт.

12M7066

Lock Washer

10 mm

1шт.

24M7296

Washer

10.500 X 30 X 2.500 mm

1шт.

54

4615212

Handrail

SUB FOR 7039949, THIS APPLICATI ON; UNITS BUILT BEFORE JUNE 2002

1шт.

4600293

Latch

UNITS BUILT JUNE 2002 AND AFTER

1шт.

56

19M7493

Cap Screw

M12 X 40 SUB FOR J921240

4шт.

57

12H301

Lock Washer

1/2" SUB FOR A590912

4шт.

58

24M7047

Washer

13 X 24 X 2.500 mm SUB FOR A590112

4шт.

59

4615213

Handrail

SUB FOR 7039388, THIS APPLICATION

1шт.

60

19M7402

Cap Screw

M10 X 25 SUB FOR J021025

1шт.

67

4420724

Rear View Mirror

SUB FOR 4416704

1шт.

67A

Holder

NLA

1шт.

67B

Packing

NLA

1шт.

68

8124253

Bracket

SUB FOR 8077521

1шт.

69

4425481

Hose Clamp

1шт.

70

19M7184

Cap Screw

M8 X 55 SUB FOR J010855, AT131308

2шт.

Washer

12M7065 NLA

2шт.

81

4341788

Rod

SUB FOR 4341788J

1шт.

82

24M7055

Washer

8.400 X 16 X 1.600 mm SUB FOR A590108

2шт.

83

H132922

Cotter Pin

SUB FOR 4022697

1шт.

93

4615214

Handrail

SUB FOR 4452443, THIS APPLICATION

1шт.

94

4094101

Cap

( TH101271 NLA)

1шт.

95

19M8600

Cap Screw

M10 X 50 SUB FOR M261050

2шт.

96

14M7274

Nut

M10 SUB FOR J950010

2шт.
