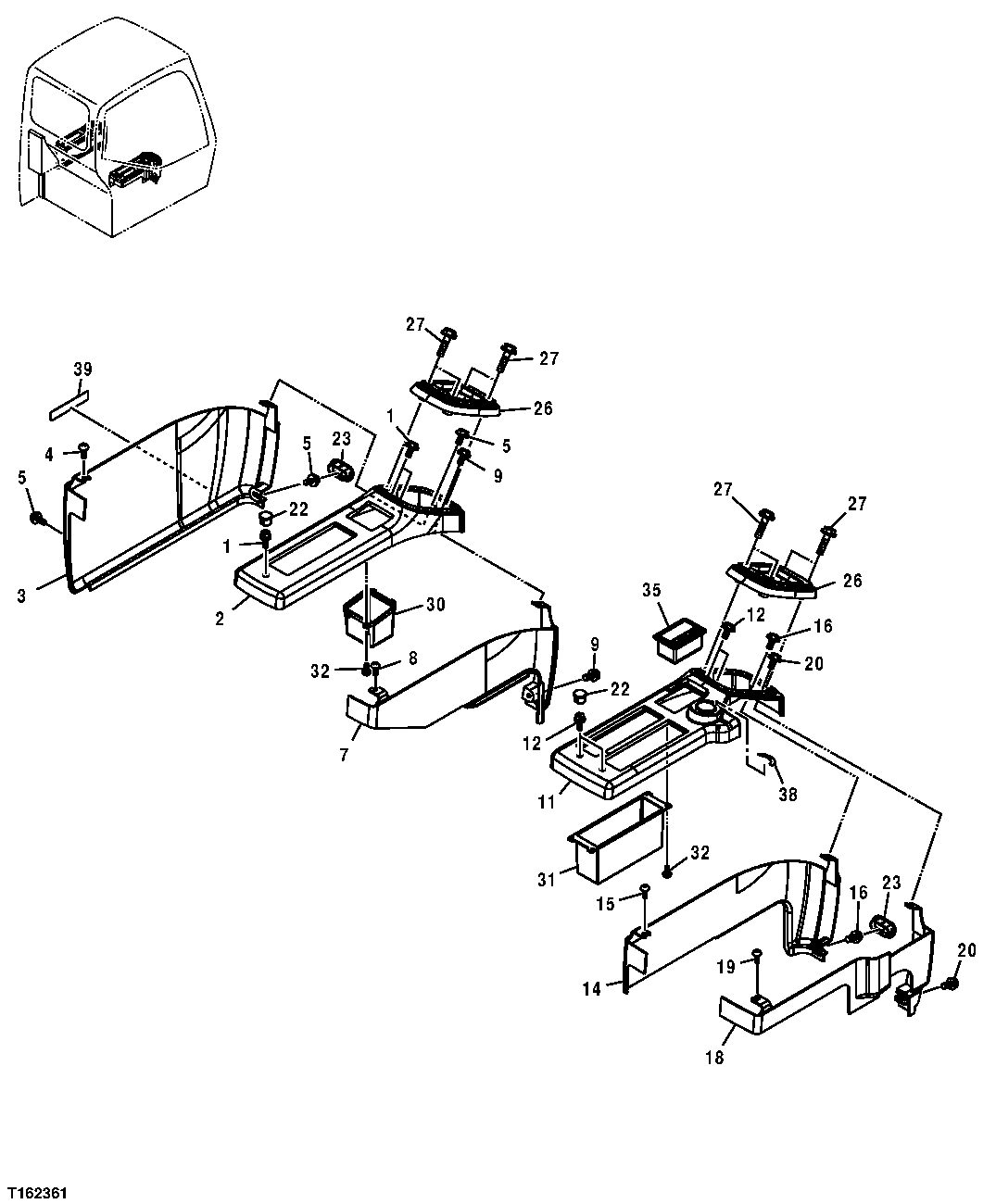

Запчасти John Deere 35D 115 - CAB CONSOLE COMPONENTS 1816 INSTRUMENT AND CONTROL MOUNTING STRUCTURE

1

Screw With Washer

( J680616 NLA)

3шт.

21M7577

Socket Head Screw

M6 X 16

3шт.

12M7006

Lock Washer

6 mm

3шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

3шт.

2

4420875

Cover

1шт.

3

4464048

Cover

(SUB FOR 4441967)

1шт.

4

4361802

Screw

1шт.

5

Screw With Washer

( J680616 NLA)

3шт.

21M7577

Socket Head Screw

M6 X 16

3шт.

12M7006

Lock Washer

6 mm

3шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

3шт.

7

4441968

Cover

1шт.

8

4361802

Screw

1шт.

9

Screw With Washer

( J680616 NLA)

2шт.

21M7577

Socket Head Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

11

4420878

Cover

1шт.

12

Screw With Washer

( J680616 NLA)

4шт.

21M7577

Socket Head Screw

M6 X 16

4шт.

12M7006

Lock Washer

6 mm

4шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

4шт.

14

4441965

Cover

1шт.

15

4361802

Screw

1шт.

16

Screw With Washer

( J680616 NLA)

2шт.

21M7577

Socket Head Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

18

4446207

Cover

1шт.

19

4361802

Screw

1шт.

20

Screw With Washer

( J680616 NLA)

2шт.

21M7577

Socket Head Screw

M6 X 16

2шт.

12M7006

Lock Washer

6 mm

2шт.

24M7054

Washer

6.400 X 12 X 1.600 mm

2шт.

22

4448990

Cap

3шт.

23

4441117

Cap

2шт.

26

2045509

Cover

2шт.

27

19M7177

Cap Screw

M6 X 35 (SUB FOR J460635)

8шт.

12M7006

Lock Washer

6 mm

8шт.

24M7293

Washer

6.500 X 13 X 1.600 mm

8шт.

30

3090024

Holder

1шт.

31

3090025

Holder

1шт.

32

4361800

Screw

8шт.

35

4415024

Ashtray

1шт.

38

4264805

Label

1шт.

39

4299059

Label

1шт.
