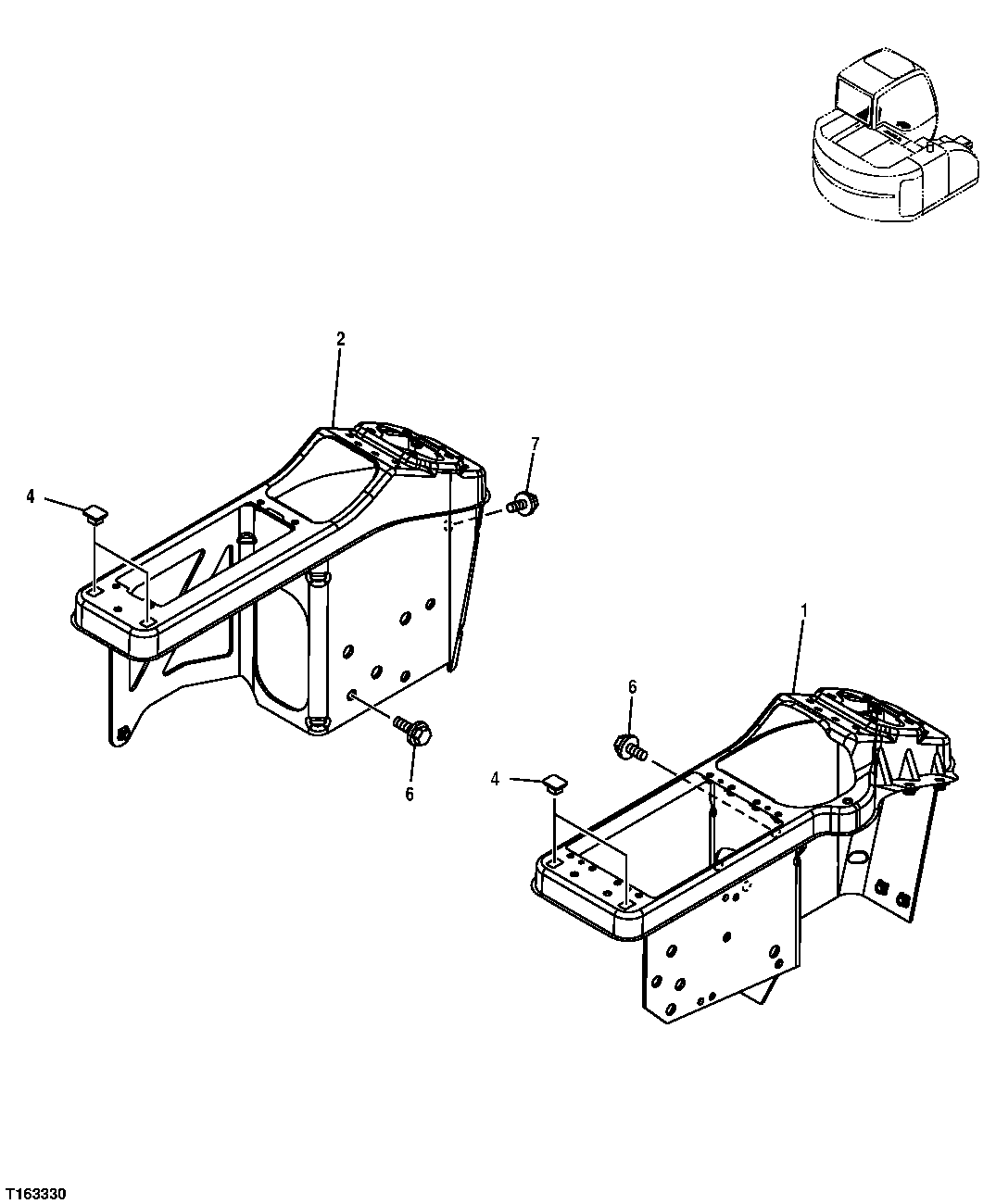

Запчасти John Deere 35D 114 - CAB CONSOLE 1816 INSTRUMENT AND CONTROL MOUNTING STRUCTURE

1

7039797

Console

(RH)

1шт.

2

7039796

Console

(LH)

1шт.

4

4351255

Nut

4шт.

6

19M7402

Cap Screw

M10 X 25 (SUB FOR J051025)

6шт.

24M7096

Washer

10.500 X 18 X 1.600 mm

6шт.

12M7066

Lock Washer

10 mm

6шт.

7

19M7407

Cap Screw

M8 X 25 (SUB FOR J020825)

1шт.
